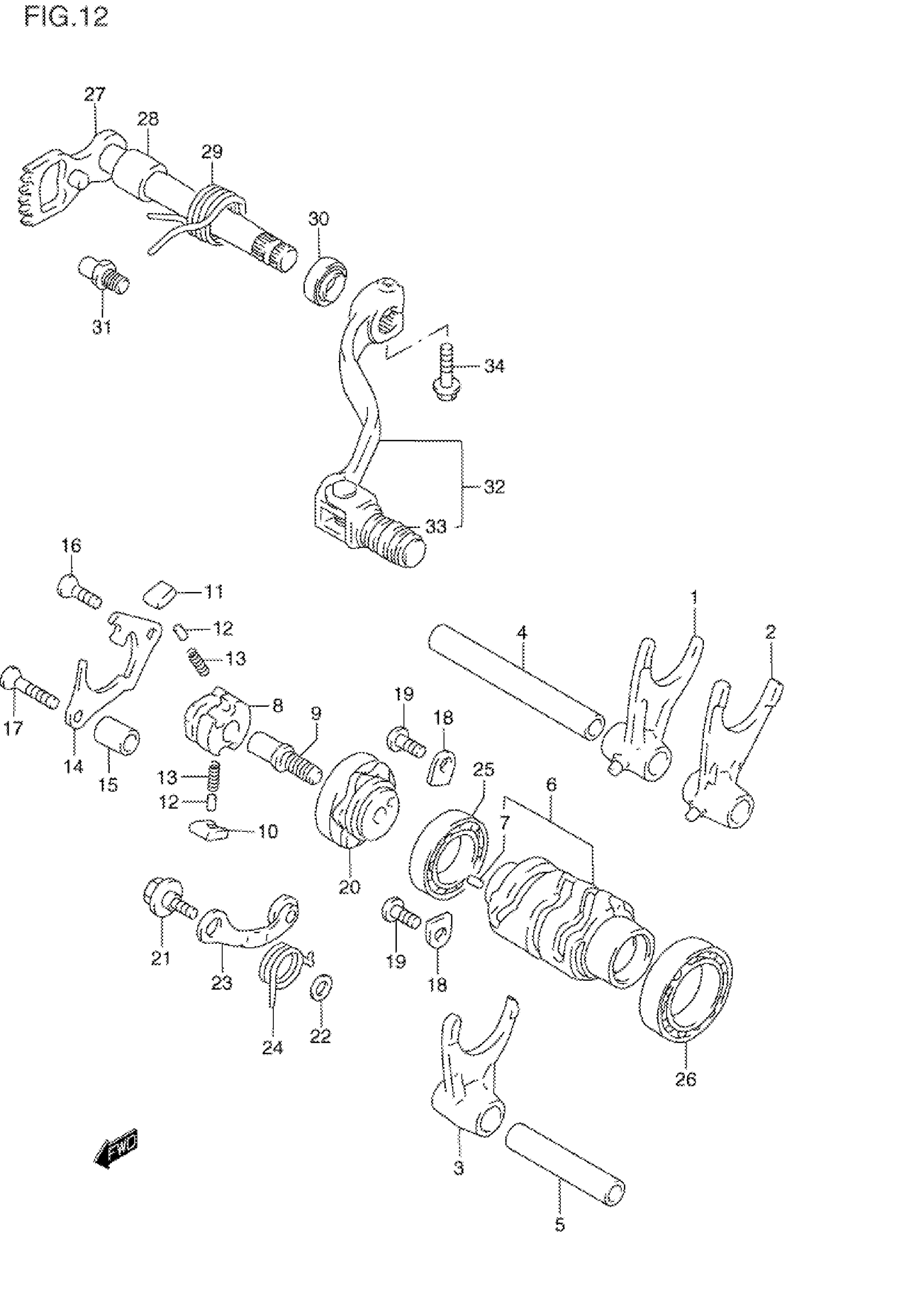

Suzuki RMX250W (1998) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, NO.1

25211-28C01

$82.92

2

FORK, NO.2

25221-28C02

$87.77

3

FORK, NO.3

25231-28C02

$83.32

4

SHAFT, GEAR FORK NO.1 This part replaces 25411-27C00.

25411-37F20

$22.22

5

SHAFT, NO.2 (L:60) This part replaces 25421-27C00.

25421-27C01

$18.43

6

CAM | Includes Item(s) 7

25310-28C20

Unavailable

7

PIN (4X13.8)

04221-04089

$1.49

8

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31302.

25322-31310

$26.93

9

PIN, SHIFT CAM DRIVEN GEAR

25313-27C02

$13.05

10

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

11

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

12

PIN

09261-05003

$1.54

13

SPRING

09440-04003

$1.54

14

LIFTER, PAWL

25331-28C00

$24.20

15

SPACER (6.2X12X18)

09180-06204

Unavailable

16

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

17

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

18

RETAINER, SHIFT CAM BEARING

24741-21A00

$2.81

19

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

20

PLATE, STOPPER

25381-28C20

Unavailable

21

BOLT, SHIFT CAM STOPPER

09111-06041

$2.61

22

WASHER

08211-06121

$1.54

23

STOPPER, CAM

25350-28C20

Unavailable

24

SPRING

09448-18025

Unavailable

25

BEARING, RH

08140-69050

$35.66

26

BEARING, LH

09263-30035

Unavailable

27

SHAFT, GEAR SHIFTING

25510-28C30

$96.22

28

SPACER (14X20X17.5)

09180-14016

$3.96

29

SPRING

09444-26013

$3.10

30

OIL SEAL

09283-14006

$6.70

31

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

32

LEVER ASSY, GEAR SHIFT | Includes Item(s) 33 This part replaces 25600-05D01.

25600-05D03

$90.19

33

.RUBBER, GEAR SHIFT PEDAL

25652-03D00

$5.05

34

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45
