1998 Suzuki RMX250W Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1998 Suzuki RMX250W, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

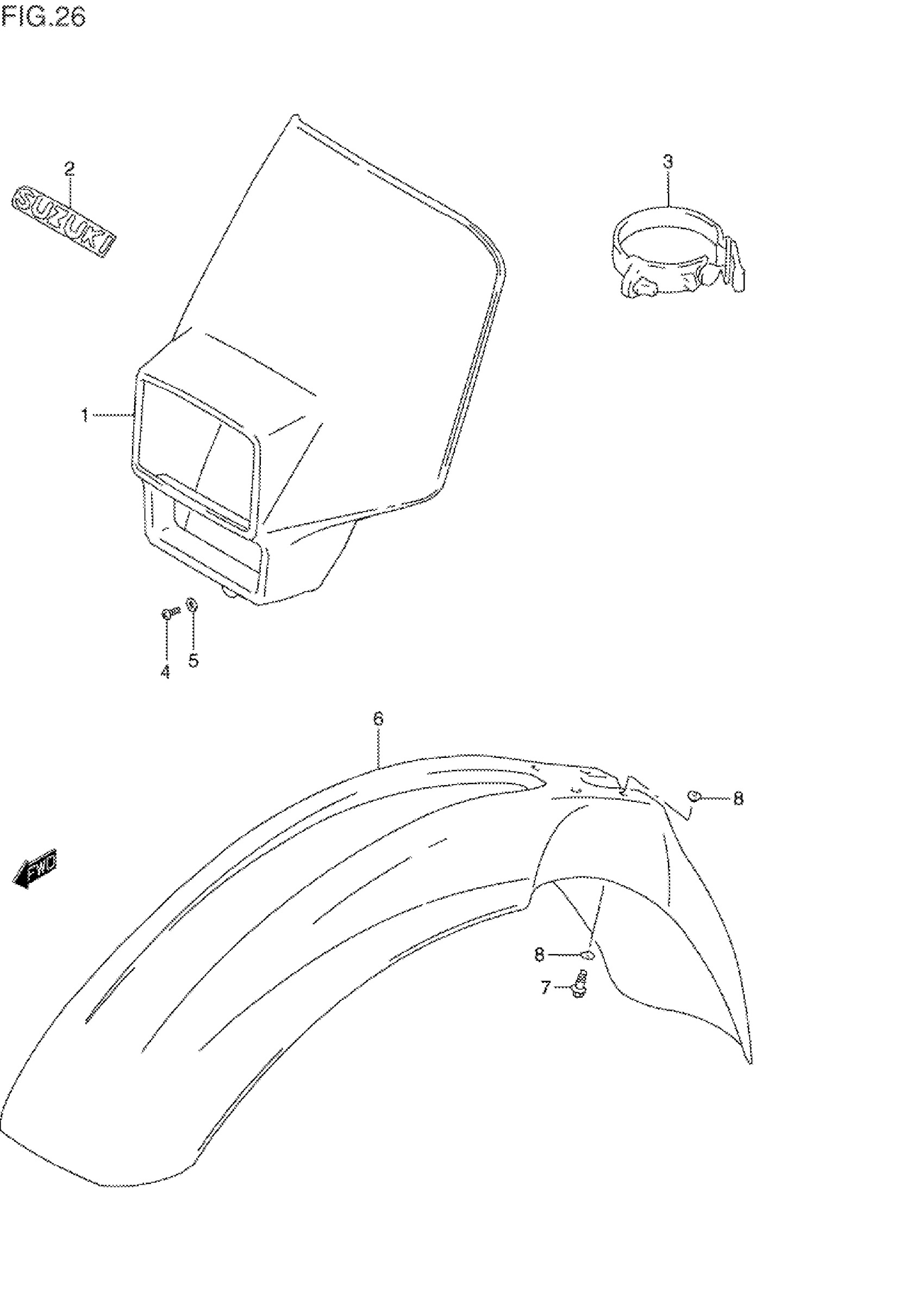

1998 Suzuki RMX250W Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER COMP,HEAD This part replaces 51811-03D00-30H.

51810-03D00-30H

1
Out of stock

2

EMBLEM, SUZUKI | MODEL V

68171-44B00-C5Z

1
Out of stock

2

EMBLEM, SUZUKI | MODEL W

68171-44B00-F9J

1
Out of stock

3

BAND

51850-14D00

2
Out of stock

4

SCREW, LOWER

02142-15127

1

$2.97

In stock

5

WASHER

09169-05012

1
Out of stock

6

FENDER,FRONT(YE This part replaces 53111-27C21-25Y.

53111-27C22-25Y

1
Out of stock

7

BOLT This part replaces 01547-06163.

01547-0616B

4
Out of stock

8

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

8
Out of stock
← Frame Cover Label →
