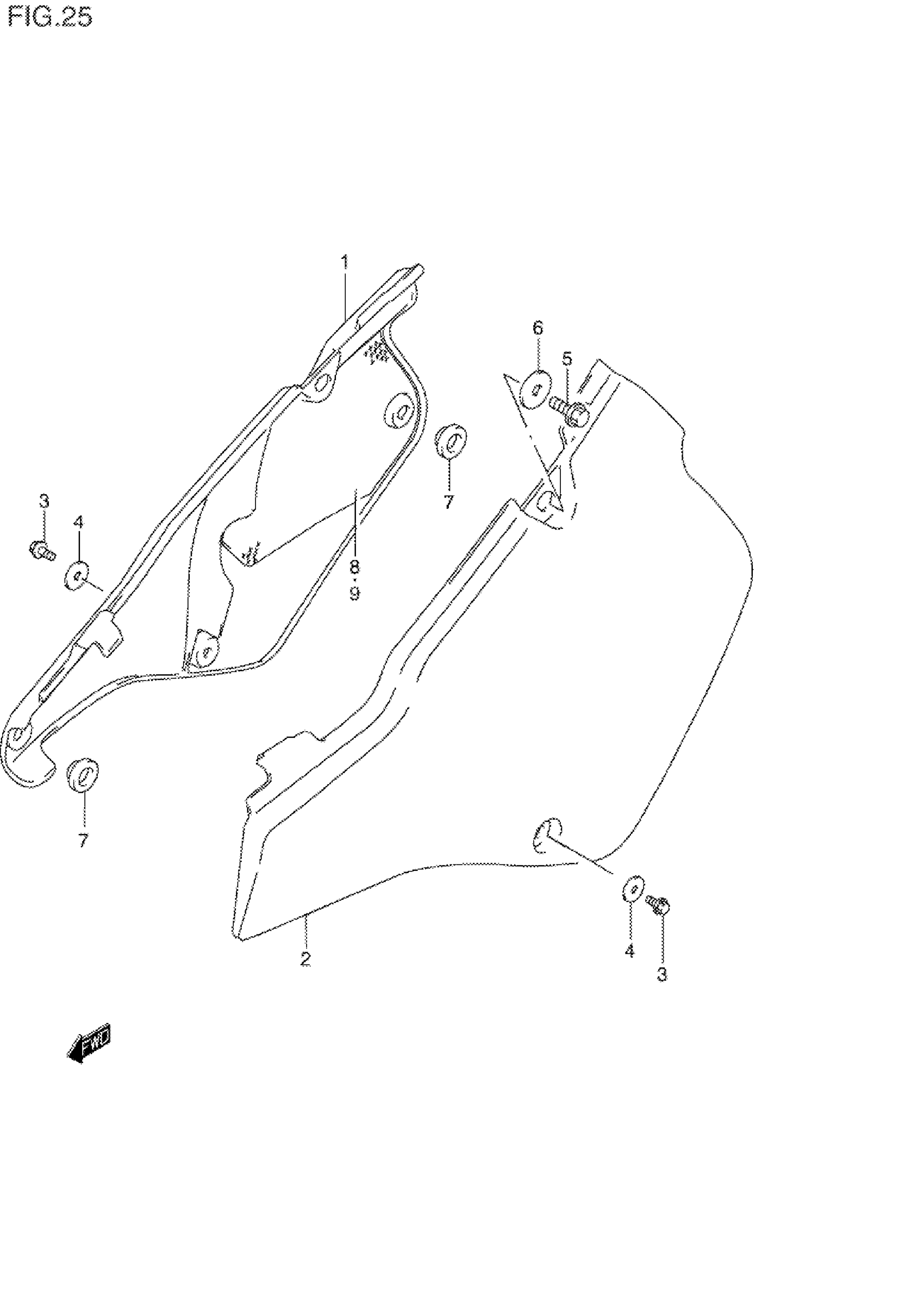

Suzuki RMX250W (1998) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE)

47111-05D00-30H

Unavailable

2

COVER, FRAME LH (WHITE)

47211-27C00-30H

Unavailable

3

BOLT, FRONT LH

01547-06167

$1.70

4

WASHER

09168-06027

$3.05

5

BOLT, REAR

01550-08207

$2.80

6

WASHER, REAR

09169-08045

$2.21

7

CUSHION, MUFFLER REAR

09321-10018

$4.33

8

HEAT SHIELD, REAR RH

47166-05D00

Unavailable

9

HEAT SHIELD, FRONT RH

47167-05D00

Unavailable
