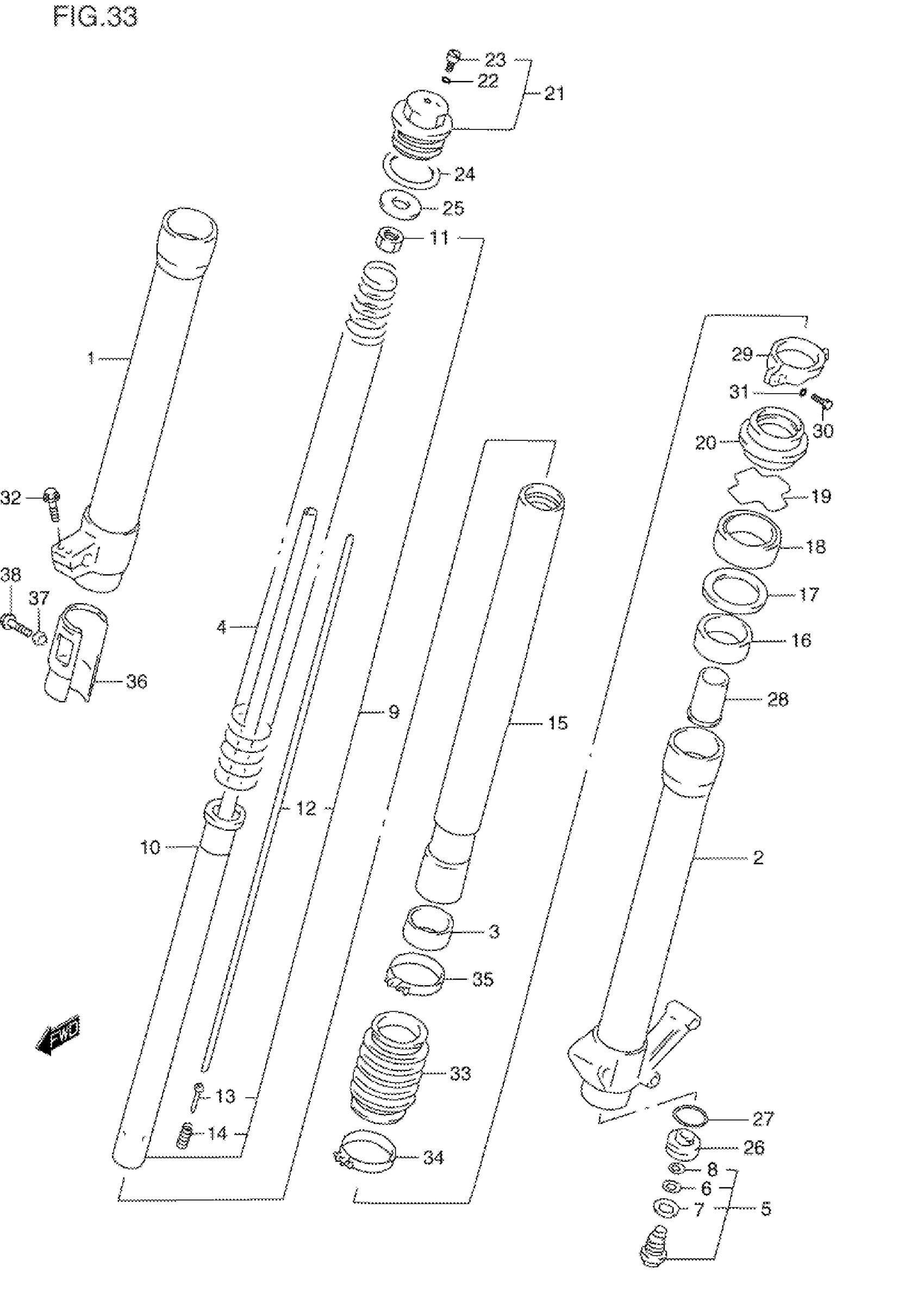

Suzuki RMX250W (1998) FRONT DAMPER Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-29EA0

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 32

51104-29EA0

Unavailable

1

TUBE, OUTER RH

51130-29EA0

Unavailable

2

TUBE, OUTER LH

51140-29EA0

Unavailable

3

BUSH, SLIDE

51121-27C40

Unavailable

4

SPRING, FRONT

51171-29EA0

Unavailable

5

BOLT, CENTER

51170-29EA0

Unavailable

6

O RING

51177-43D00

Unavailable

7

GASKET

51148-43D00

Unavailable

8

O RING

51174-43D00

$4.82

9

ROD, DAMPER

51190-29EA0

Unavailable

10

BUSH, SLIDE

51122-29EA0

Unavailable

11

NUT, PUSH

51827-33E00

$17.28

12

ROD, PUSH

51191-29EA0

Unavailable

13

NEEDLE

51192-05D80

$21.50

14

SPRING, PUSH ROD

51193-28E00

$6.30

15

TUBE, INNER

51110-29EA0

Unavailable

16

BUSH, GUIDE

51167-27C40

Unavailable

17

SPACER, SEAL

51158-27C40

$8.53

18

SEAL, OIL

51153-28E30

$32.37

19

RING, OIL SEAL STOPPER

51156-27C40

$5.19

20

SEAL, DUST

51173-28E40

$30.86

21

BOLT, FORK

51351-29EA0

Unavailable

22

...O-RING

51358-28E30

$4.28

23

BOLT

51357-28E30

$14.37

24

O RING

51117-29EA0

$4.90

25

JOINT, SPRING

51172-29EA0

Unavailable

26

PLATE, END

51205-29EA0

Unavailable

27

O RING

51187-08D00

$6.17

28

PIECE, OIL LOCK

51195-29EA0

Unavailable

29

HOLDER, BOOT

51203-29EA0

Unavailable

30

BOLT

07130-05207

$3.03

31

WASHER This part replaces 09160-05034.

09160-05044

$2.02

32

BOLT, RH

01550-08407

$3.42

33

BOOT (YELLOW) | MODEL V

51571-29EA0-163

Unavailable

33

BOOT (BLACK) | MODEL W

51571-29EA0-019

Unavailable

34

CLAMP, LOWER

09402-66303

Unavailable

35

CLAMP, UPPER

51575-29EA0

Unavailable

36

PROTECTOR SET,O | MODEL V This part replaces 51551-36E30-25Y.

51500-36E30-25Y

Unavailable

36

PROTECTOR SET,O | MODEL W This part replaces 51551-36E30-1KY.

51500-36E31-1KY

$16.60

37

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

38

BOLT This part replaces 01547-06123.

01547-0612B

$1.49
