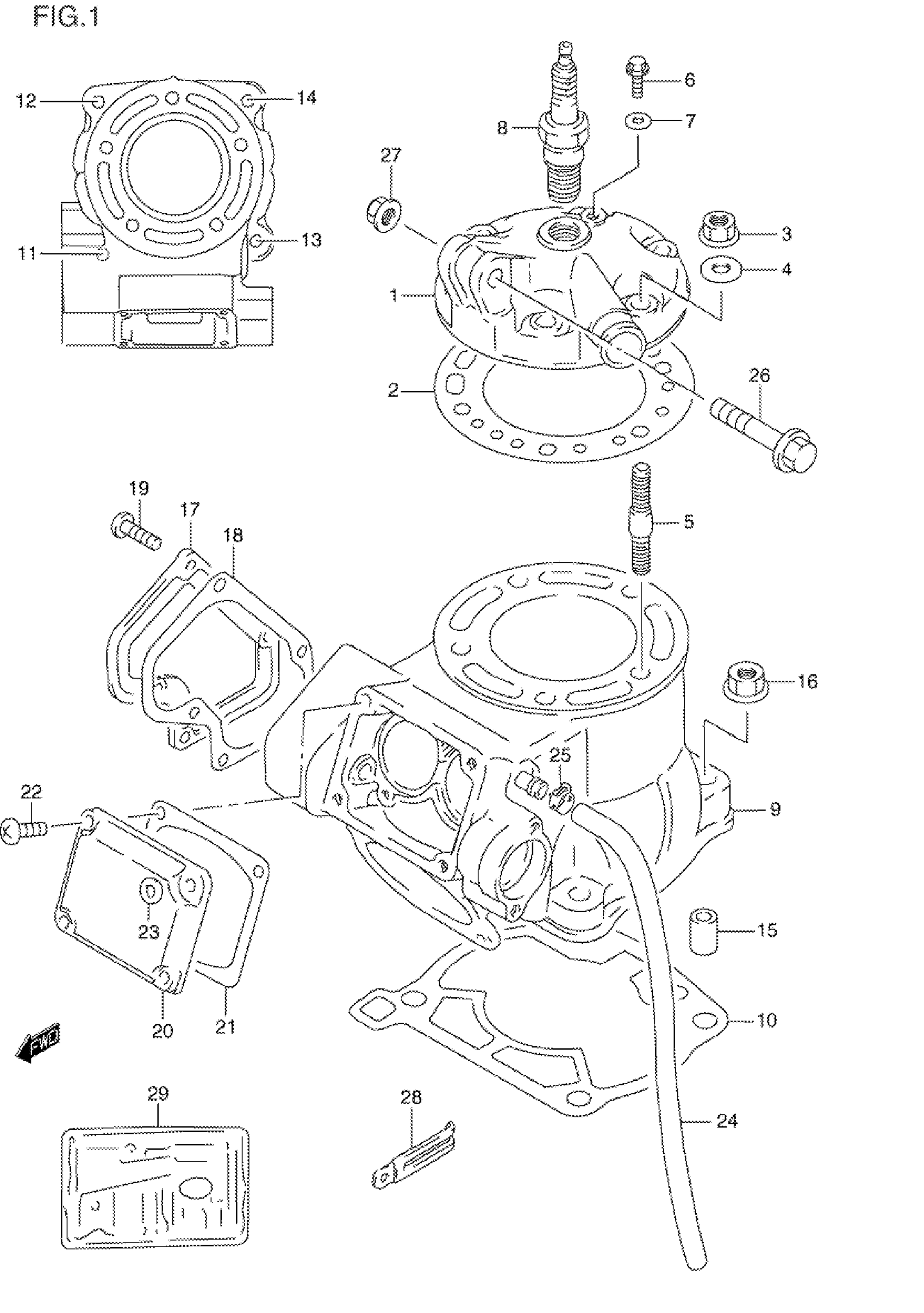

Suzuki RMX250W (1998) CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER

11111-28C10

Unavailable

2

GASKET, CYLINDER HEAD (T:1.7)

11141-29E10

Unavailable

2

GASKET, CYLINDER HEAD (T:1.2) | OPT

11141-05D20

Unavailable

3

NUT This part replaces 08316-10083.

08316-1008B

$2.66

4

WASHER

09160-08039

$2.03

5

STUD BOLT (L:30)

09108-08224

Unavailable

6

BOLT, AIR DUCT

09360-06007

$2.30

7

GASKET

09168-06004

$1.49

8

SPARK PLUG (NGK,R6918B-8) This part replaces 09482-00115.

09482-00509

$33.47

9

CYLINDER

11200-29821

Unavailable

10

GASKET, CYLINDER

11241-28C11

$17.40

11

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

12

BOLT,STUD This part replaces 01421-10358.

01421-1035A

$2.62

13

STUD BOLT (L:40) This part replaces 01421-10408.

01421-1040A

$2.62

14

STUD BOLT

01421-10457

$3.91

15

PIN

09206-13017

$7.61

16

NUT This part replaces 08316-10103.

08316-1010B

$2.66

17

COVER, CYLINDER NO.1

11231-29E01

Unavailable

18

GASKET, CYLINDER COVER NO.1

11233-29E00

Unavailable

19

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

20

COVER, CYLINDER NO.2

11248-28C20

Unavailable

21

GASKET, CYLINDER COVER NO.2

11238-05D01

Unavailable

22

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49

23

GASKET

09168-05010

$1.71

24

HOSE (9X14X220)

09343-09501

$11.61

25

CLIP

09401-12405

$2.26

26

BOLT (8X45)

09103-08043

$3.18

27

NUT

09159-08067

$5.57

28

CLAMP, CLUTCH CABLE

09404-06429

$1.83

29

GASKET SET

11401-29850

Unavailable
