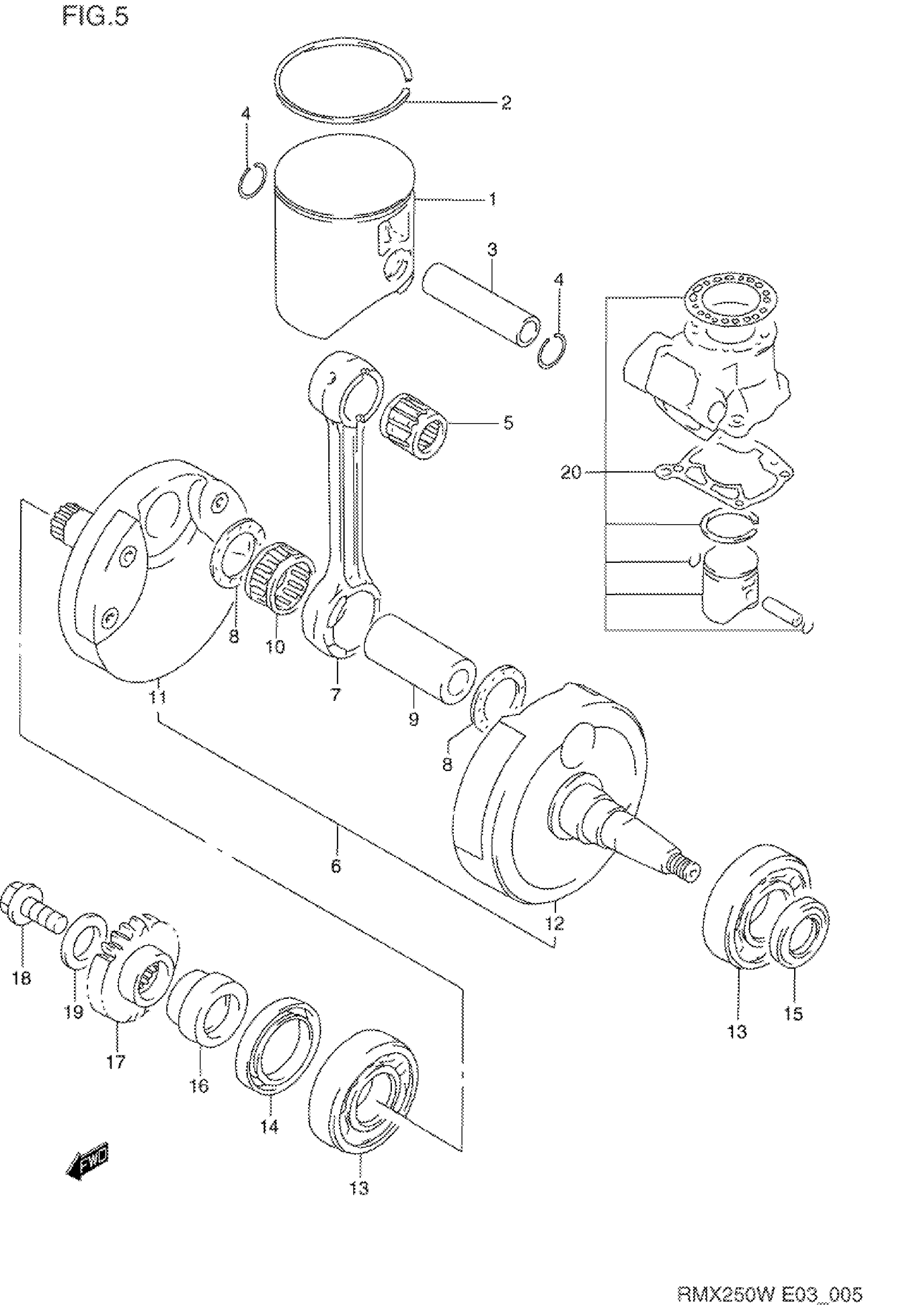

Suzuki RMX250W (1998) CRANKSHAFT Diagram

#

Description
Price

1

PISTON

12110-29E20-0F0

Unavailable

2

RING, PISTON

12141-28E00

$26.76

3

PIN, PISTON This part replaces 12151-28C00.

12151-37F00

$14.15

4

CIRCLIP

09381-18002

$1.67

5

BEARING (18X23X22)

09263-18016

$19.93

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-29E10

Unavailable

7

ROD, CONNECTING

12161-28C30

Unavailable

8

WASHER

09160-24027

$23.13

9

PIN, CRANK

12211-05D00

$43.33

10

BEARING (24X30X20)

09263-24026

$69.90

11

CRANKSHAFT, RH

12220-28E10

Unavailable

12

CRANKSHAFT, LH

12260-29E10

Unavailable

13

BEARING, CRANKSHAFT

09262-28036

Unavailable

14

OIL SEAL, RH (38X52X8)

09283-38018

Unavailable

15

OIL SEAL, LH (25X37X6)

09283-25083

$8.37

16

SPACER

12359-28E10

Unavailable

17

GEAR, PRIMARY DRIVE (NT:23) | MODEL V This part replaces 21111-14320.

21111-14321

Unavailable

17

GEAR, PRIMARY DRIVE (NT:23) | MODEL W

21111-14321

Unavailable

18

BOLT, PRIMARY DRIVE GEAR This part replaces 21141-27C11.

09103-10339

$9.32

19

WASHER

09164-11004

$5.47

20

TOP END KIT, ENGINE | OPT

12100-29850

Unavailable
