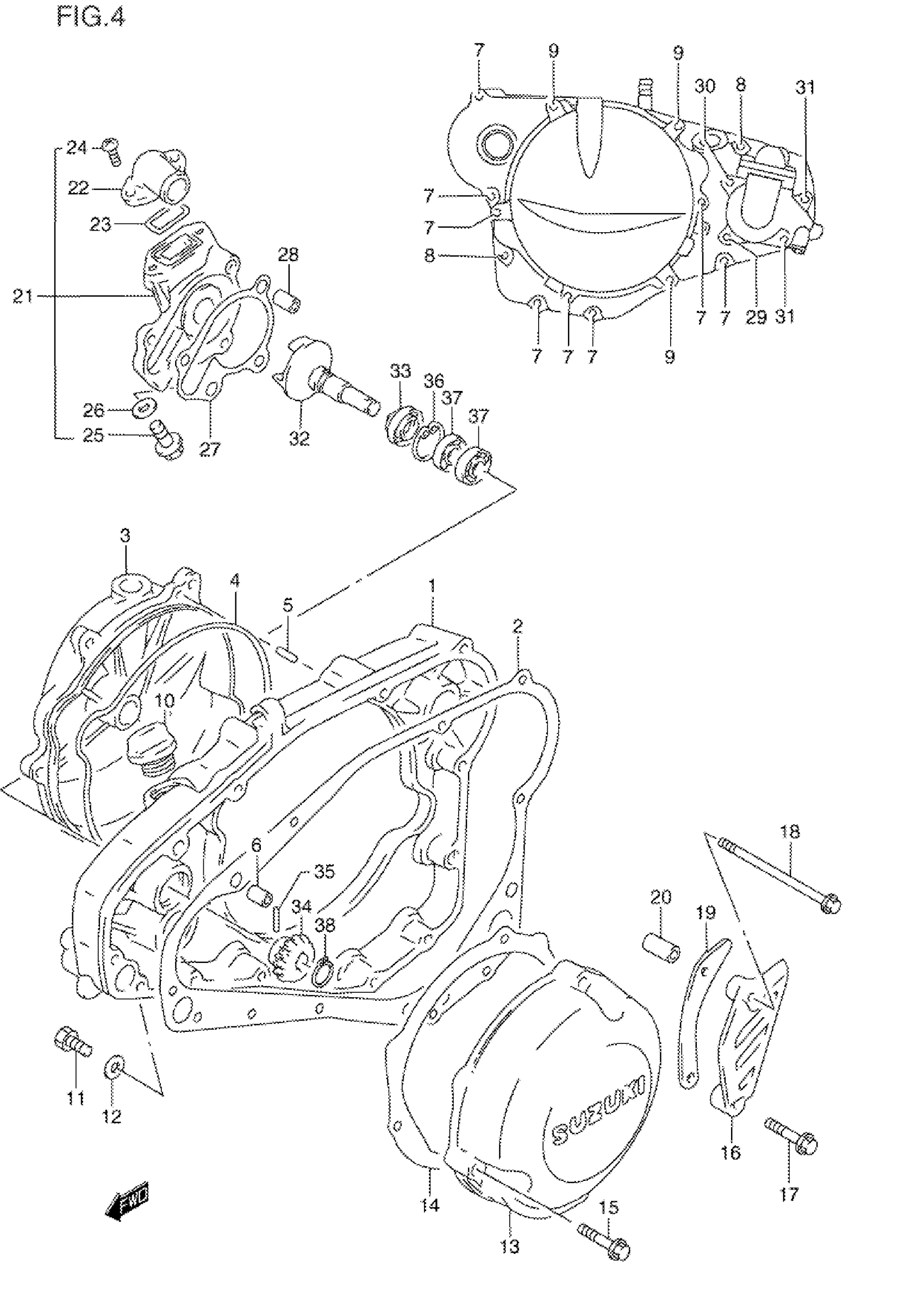

Suzuki RMX250W (1998) CRANKCASE COVER Diagram

COVER, CLUTCH

11340-28811

Unavailable

GASKET, CLUTCH COVER

11482-28C01

$19.58

COVER, CLUTCH OUTER

11371-28E02

Unavailable

O RING, CLUTCH COVER OUTER

11484-28C10

Unavailable

PIN (4X13.8)

04221-04089

$1.49

PIN

04211-09129

$1.65

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

BOLT This part replaces 01547-06703.

01547-0670B

$3.29

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

GASKET

09168-06004

$1.49

COVER, MAGNETO

11351-05D12

Unavailable

GASKET, MAGNETO COVER

11483-28C10

Unavailable

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

COVER, ENGINE SPROCKET

11360-28E00

$32.00

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

.BOLT This part replaces 01547-06953.

01547-0695B

$3.37

PLATE, CHAIN GUIDE

27641-28C10

Unavailable

PLATE, CHAIN GUIDE | OPT,FOR NT:15

27641-28C20

$12.13

SPACER (6.5X10.5X25)

09180-06203

$2.71

CASE ASSY, WATER PUMP | Includes Item(s) 22 - 26

17410-28E00

Unavailable

CONNECTOR

17412-28E00

Unavailable

O RING

17414-14300

$2.99

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

BOLT, DRAIN

17415-43D00

$4.35

GASKET

17413-28C10

$2.14

GASKET, WATER PUMP CASE

17431-28C10

$7.54

PIN

04211-09129

$1.65

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

BOLT This part replaces 01547-06803.

01547-0680B

$3.18

IMPELLER, WATER PUMP

17491-28C10

$48.49

OIL SEAL, WATER PUMP This part replaces 17461-28C10.

17461-03B00

$8.26

GEAR, WATER PUMP DRIVEN | NT:24

17441-28C11

Unavailable

PIN

09261-03010

Unavailable

CIRCLIP This part replaces 08331-41246.

08331-41249

$2.26

BEARING

08113-69000

$24.18

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78
