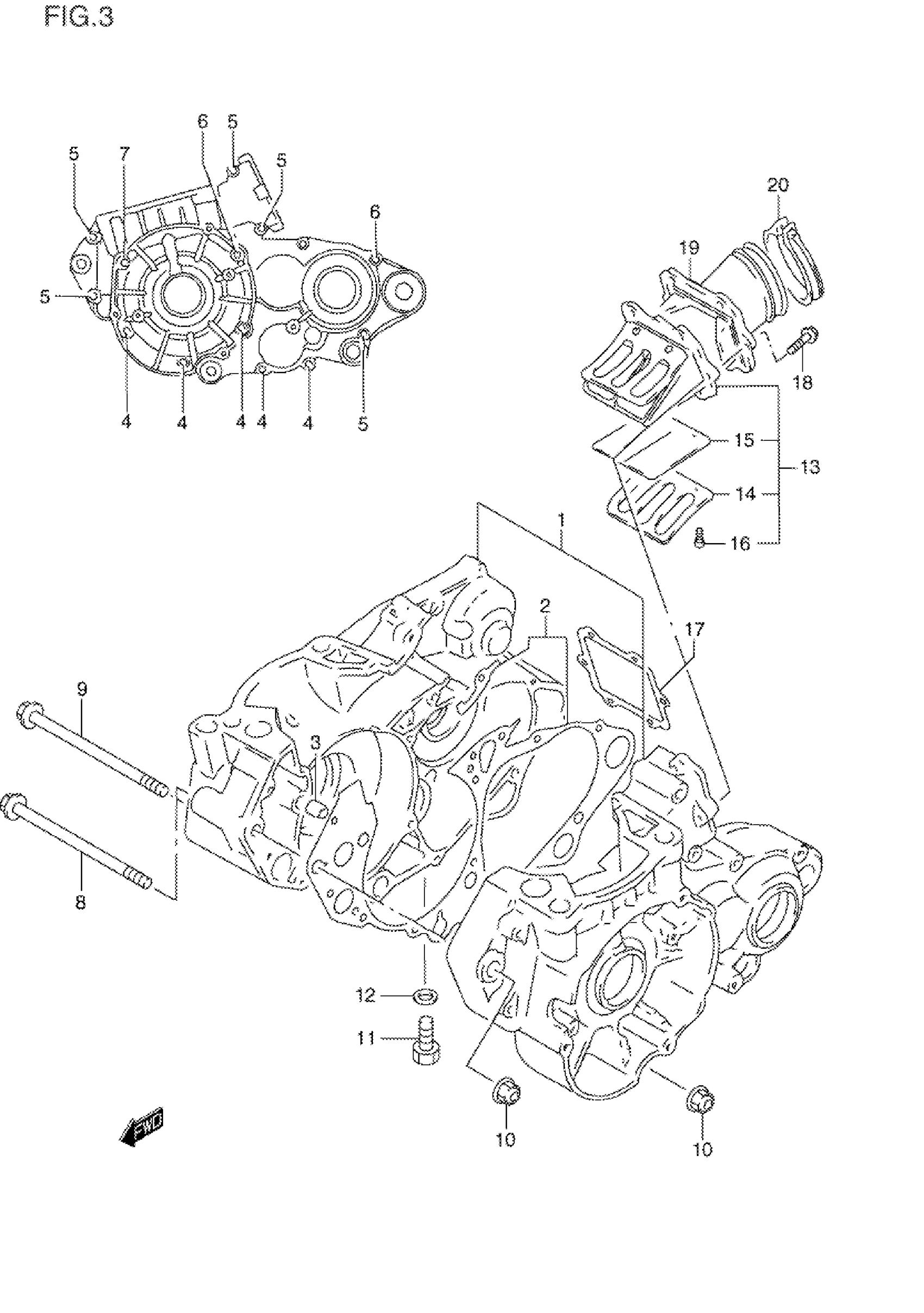

Suzuki RMX250W (1998) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 7 This part replaces 11301-44860.

11301-44861

Unavailable

2

GASKET, CRANKCASE

11481-28C00

Unavailable

3

PIN

04211-09129

$1.65

4

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

5

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

6

BOLT This part replaces 01547-06553.

01547-0655B

$2.75

7

BOLT This part replaces 01547-06603.

01547-0660B

$3.18

8

BOLT (8X102)

09103-08296

$7.11

9

BOLT (8X137)

09103-08297

$8.35

10

NUT

09159-08067

$5.57

11

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

12

GASKET (8.2X14X1)

09168-08016

$1.65

13

VALVE ASSY,REED | Includes Item(s) 14 - 16 This part replaces 13150-28E01.

13150-28E02

Unavailable

14

STOPPER,REED VA This part replaces 13152-28E00.

13152-28E01

Unavailable

15

VALVE,REED This part replaces 13153-28E00.

13153-28E01

$11.53

16

SCREW

02112-13063

Unavailable

17

GASKET, REED VALVE

13156-01C10

$3.38

18

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

19

PIPE,INTAKE This part replaces 13110-28E00.

13110-28E01

Unavailable

20

CLAMP This part replaces 09402-56208.

09402-56901

$5.36
