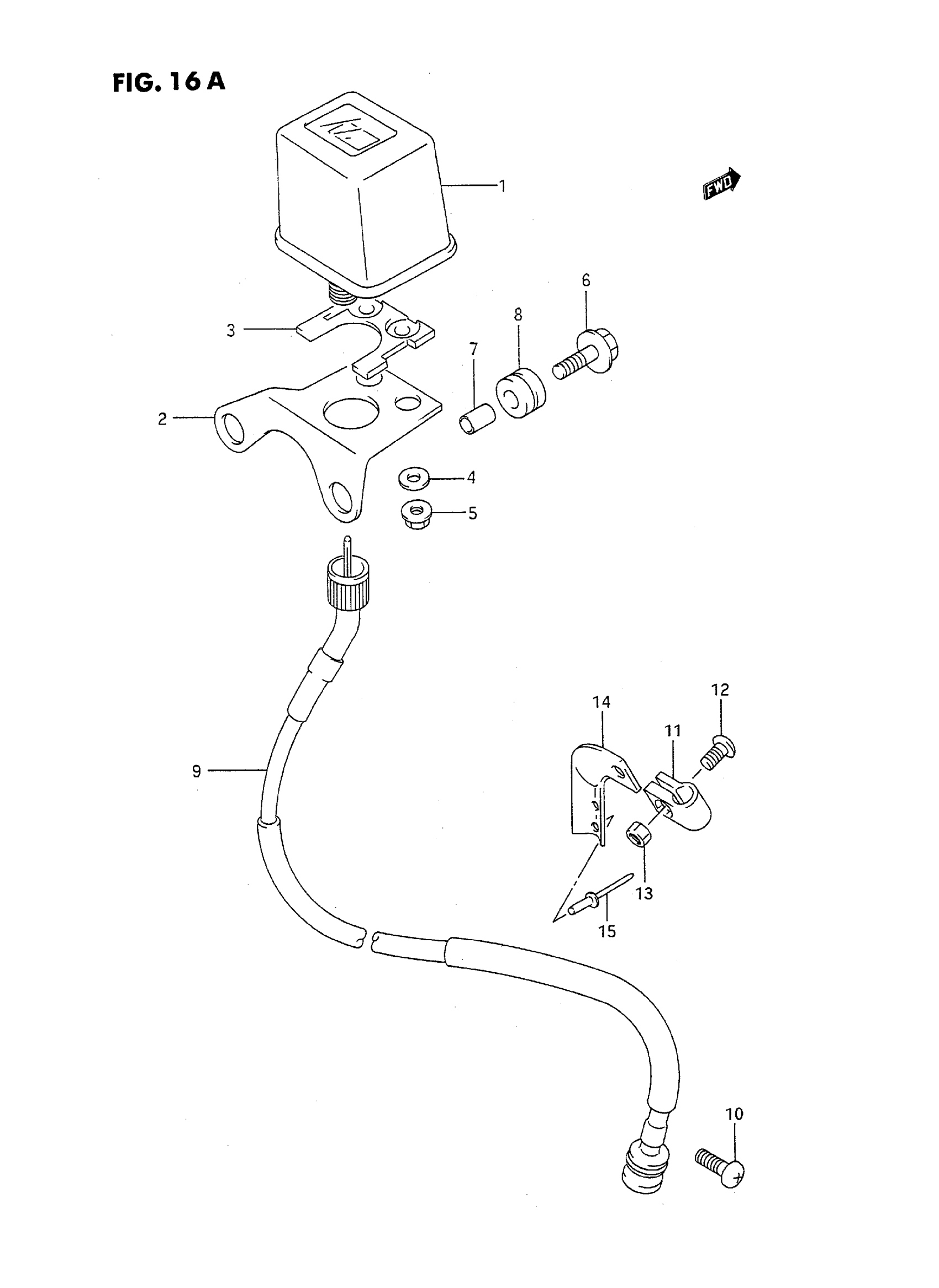

Suzuki RMX250T (1996) TRIP METER (MODEL M/N/P/R/S) Diagram

#

Description
Price

1

TRIP METER (MILE)

34721-05D20

$226.37

2

BRACKET

34725-14D00

$54.60

3

CUSHION This part replaces 34726-05D20.

34726-05D21

$5.40

4

WASHER | MODEL M/N/P/R This part replaces 34727-41410.

09160-04022

$2.35

4

WASHER | MODEL S This part replaces 09160-04017.

09160-04022

$2.35

5

NUT | MODEL M/N/P/R This part replaces 08310-11047.

08310-00047

$2.43

5

NUT | MODEL S

08310-00047

$2.43

6

BOLT (6X25)

09118-06086

$3.42

7

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.13

8

CUSHION This part replaces 09320-08048.

09320-08501

$2.95

9

CABLE ASSY,TRI This part replaces 34910-05D00.

34910-29E11

Unavailable

10

SCREW | MODEL M/N/P

02112-05164

$2.87

10

.SCREW | MODEL R/S This part replaces 02112-05163.

02112-0516A

$1.45

11

CLAMP, TRIP METER CABLE

58621-13710

Unavailable

12

SCREW | MODEL M/N/P This part replaces 02142-15125.

02142-1512B

$2.37

12

.SCREW | MODEL R/S This part replaces 02112-15123.

02142-0512A

$1.37

13

NUT | MODEL M/N/P/R This part replaces 08310-11057.

08310-00057

$1.83

13

NUT | MODEL S This part replaces 08310-00053.

08310-0005A

$1.83

14

BRACKET, CLAMP

34926-05D00

Unavailable

15

RIVET

09229-03005

Unavailable

16

@EFER TO FIG.16B(E- 6) FOR

SPECIAL NOTE

Unavailable
