Partiron

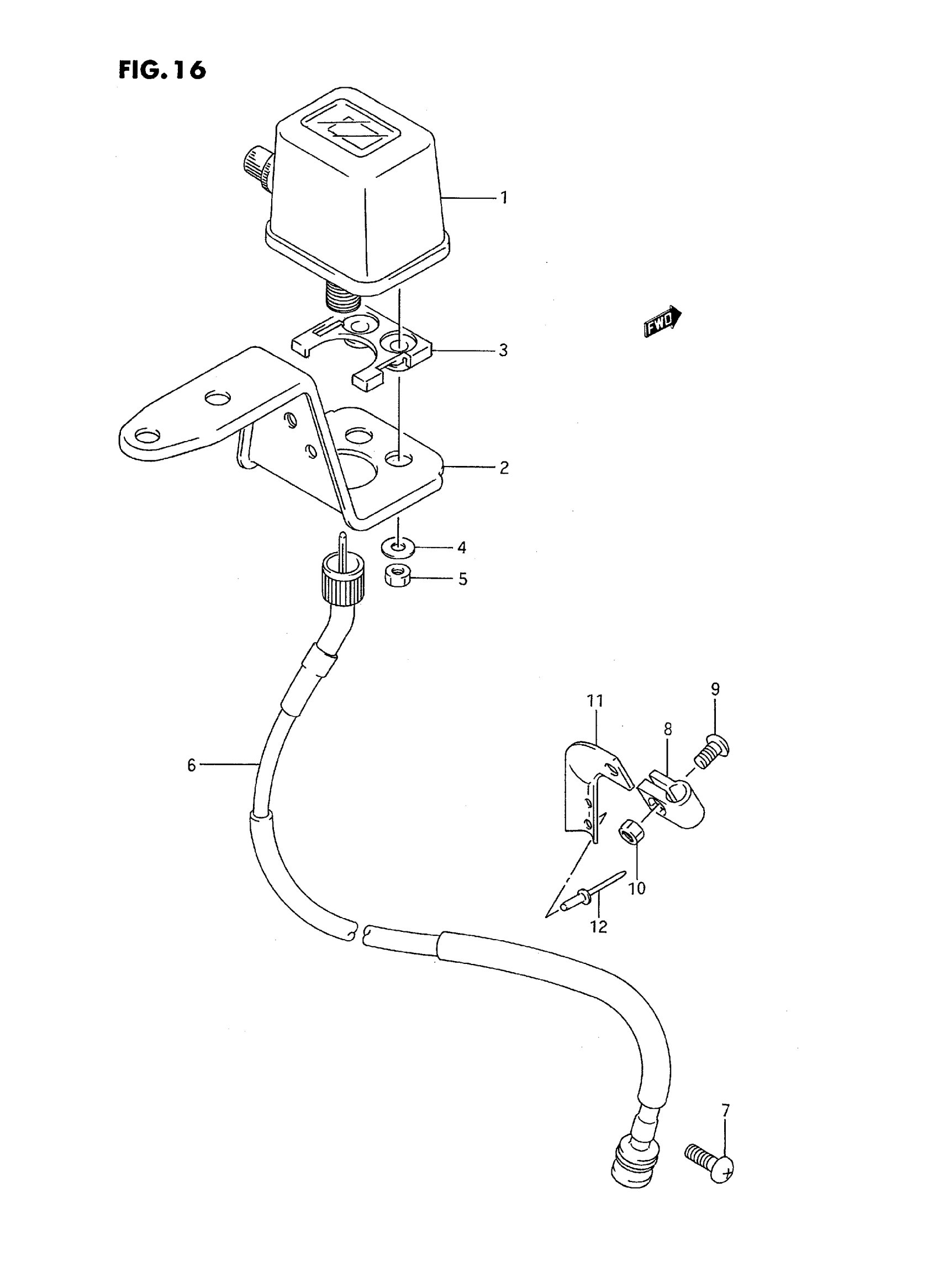

Suzuki RMX250T (1996) TRIP METER (MODEL K/L) Diagram

#

Description
Price

1

TRIP METER (MILE/KILO) This part replaces 34721-40610.

34721-05D20

$203.42

2

BRACKET

34725-05D00

Unavailable

3

CUSHION

34726-41410

Unavailable

4

WASHER This part replaces 34727-41410.

09160-04022

$2.15

5

NUT

08310-00047

$2.23

6

CABLE ASSY,TRI This part replaces 34910-05D00.

34910-29E11

Unavailable

7

SCREW

02112-05164

$2.63

8

CLAMP, TRIP METER CABLE

58621-13710

Unavailable

9

SCREW This part replaces 02142-15123.

02142-1512B

$2.34

10

NUT

08310-00057

$1.84

11

BRACKET, CLAMP

34926-05D00

Unavailable

12

RIVET

09229-03005

Unavailable

13

REFER TO FIG.16A(E- 5) FOR

SPECIAL NOTE

Unavailable
