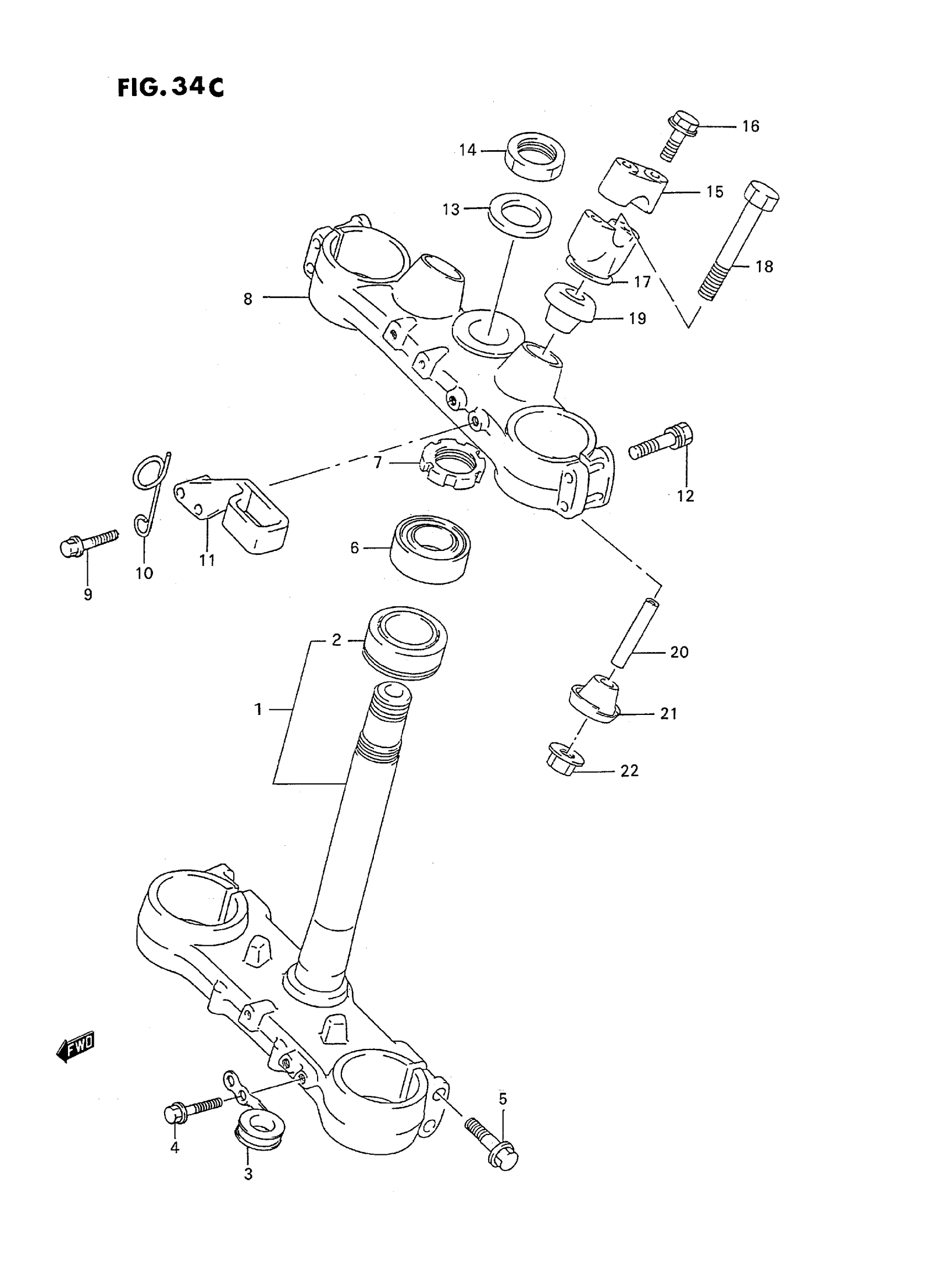

Suzuki RMX250T (1996) STEERING STEM (MODEL T) Diagram

#

Description
Price

1

STEM,STEERING | Includes Item(s) 2 This part replaces 51410-29EA0.

51410-44E30

Unavailable

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

3

GUIDE, HOSE LOWER

51453-29E00

Unavailable

4

BOLT, GUIDE LOWER

58627-27C40

$3.77

5

BOLT, STEM

01550-08407

$3.42

6

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

7

NUT STEERING

51631-28E00

$28.88

8

HEAD, STEERING STEM

51311-29EA0

Unavailable

9

BOLT This part replaces 58629-27C40.

01547-06257

$2.03

10

GUIDE,CLUTCH CA This part replaces 58294-27C00.

58294-27C01

$6.18

11

GUIDE, HOSE UPPER

58621-27C40

$25.70

12

BOLT, STEM HEAD

01550-08407

$3.42

13

WASHER,STEM HEAD

51356-29E00

$15.29

14

NUT, STEM HEAD

51353-27C40

$27.87

15

HOLDER, HANDLE

56211-27100

$15.23

16

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.96

17

HOLDER, HANDLE LOWER

56221-28C60

$60.37

18

BOLT, LOWER HANDLE

56321-27E00

$11.50

19

CUSHION,RUBBER This part replaces 56241-28C60.

56241-28C61

$24.92

20

SPACER

56243-42A00

$8.03

21

CUSHION RUBBER UNDER This part replaces 56242-28C60.

56242-28C61

$28.58

22

NUT

08319-31107

$2.73
