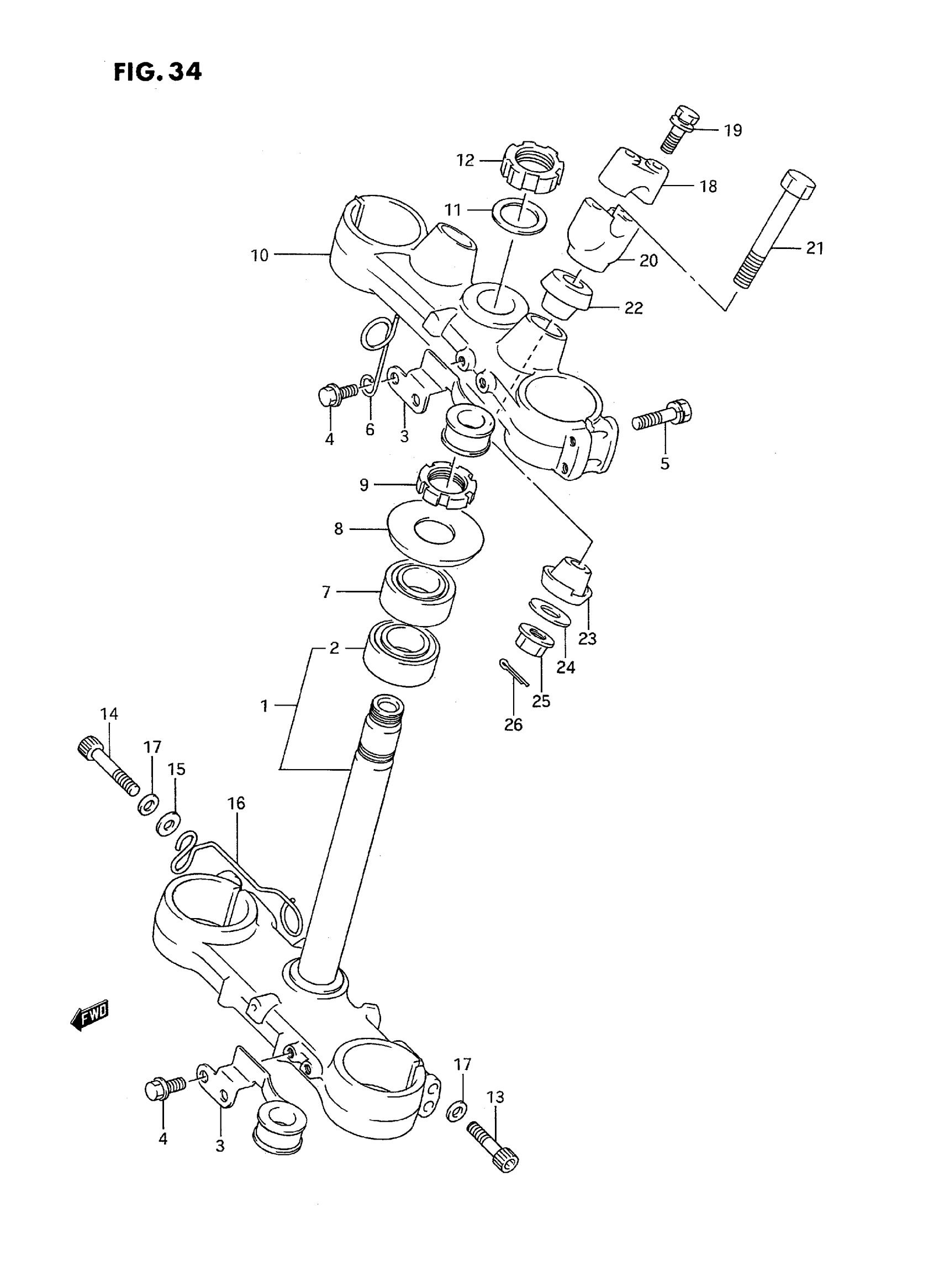

Suzuki RMX250T (1996) STEERING STEM (MODEL K/L) Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-05D00

Unavailable

2

BEARING

09265-28003

Unavailable

3

GUIDE, HOSE LOWER LH

58621-05D00

Unavailable

4

BOLT, HOSE GUIDE

58629-05D00

Unavailable

5

BOLT | MODEL K This part replaces 51328-28C00.

01547-0845A

$7.25

5

BOLT, LOWER BRACKET | MODEL L

51328-27C20

Unavailable

6

CLIP, LOWER LH

51452-05D00

Unavailable

7

BEARING This part replaces 09265-28002.

09265-28003

Unavailable

8

DUST SEAL

51643-28C00

Unavailable

9

NUT, STEERING This part replaces 51631-28C00.

51631-28C10

Unavailable

10

STEM HEAD, STEERING

51311-05D00

Unavailable

11

WASHER, STEM HEAD

51356-27C00

$6.75

12

NUT, STEM HEAD

51353-27C00

Unavailable

13

BOLT This part replaces 07110-08407.

07130-08407

$3.14

14

CAP HEAD BOLT M8X45 This part replaces 07110-08458.

07130-08457

$4.60

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

CLIP, UPPER RH

51455-05D00

Unavailable

17

WASHER | MODEL K

09164-08011

$2.71

18

CLAMP, HANDLEBAR UPPER This part replaces 56211-09B00-15T.

56211-29320-291

$15.51

19

BOLT | MODEL K This part replaces 01947-08355.

01570-0835A

$3.16

19

BOLT | MODEL L This part replaces 01517-08357.

01550-08357

$3.49

20

HOLDER, HANDLE LOWER (BLACK) This part replaces 56221-05D00.

56221-14330-291

$53.33

21

BOLT, LOWER

56321-28C00

$8.28

22

DAMPER RUBBER, UPPER

56241-14200

$44.53

23

DAMPER RUBBER, LOWER

56242-14200

$36.08

24

WASHER This part replaces 51356-40400.

09160-10035

$1.78

25

NUT

08319-31107

$2.73

26

PIN This part replaces 04111-20308.

04111-2030A

$1.50

27

REFER TO FIG.34A(I- 3) FOR

SPECIAL NOTE

Unavailable
