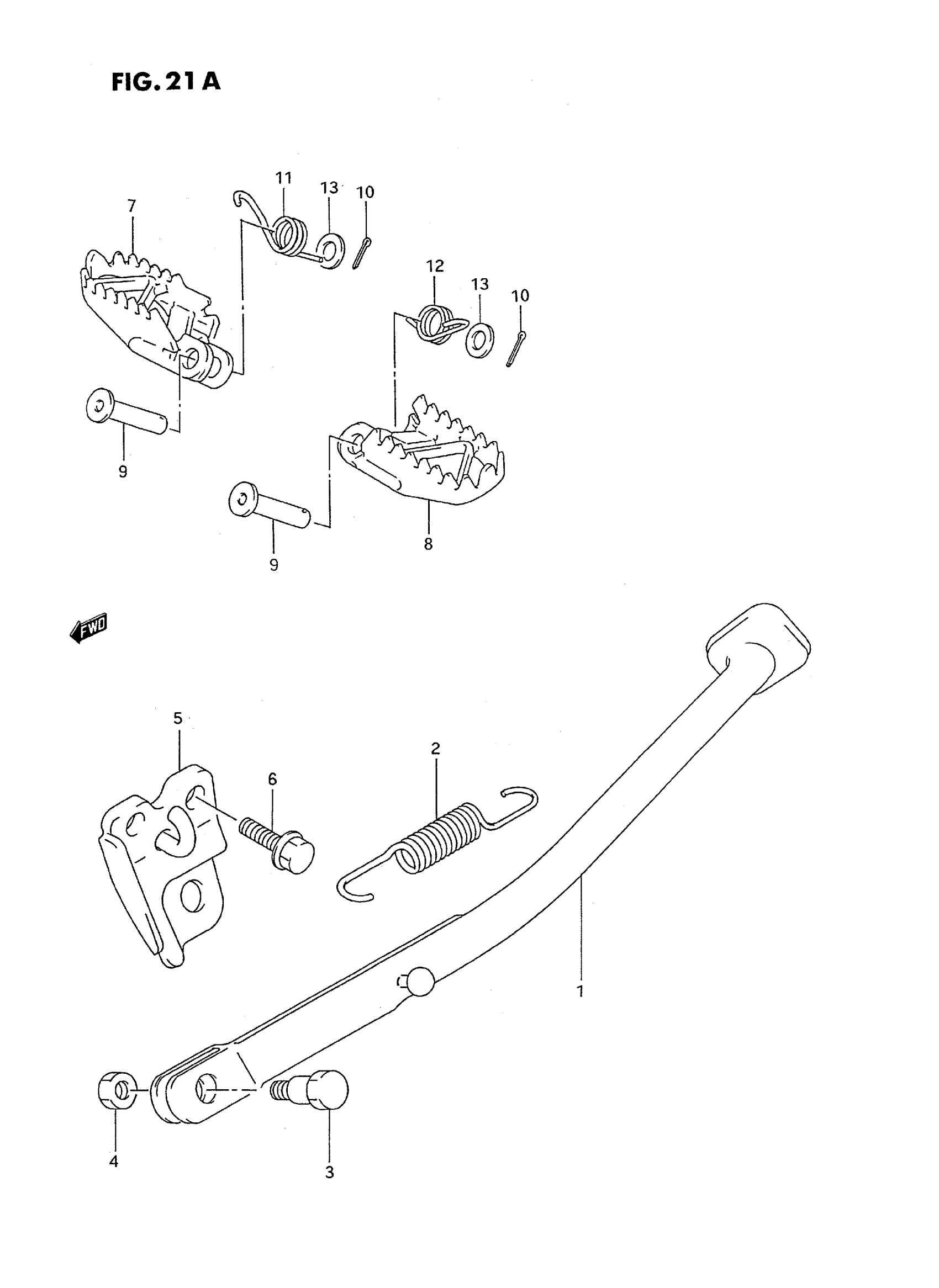

Suzuki RMX250T (1996) STAND - FOOTREST (MODEL P/R/S/T) Diagram

#

Description
Price

1

STAND, PROP (SILVER)

42310-29E10-13L

Unavailable

2

SPRING This part replaces 09443-17015.

09443-17015-XC0

$13.09

3

BOLT | MODEL P/R/S

09111-10047

$4.11

3

BOLT | MODEL T

09111-10046

Unavailable

4

NUT | MODEL P/R

08310-00107

$2.19

4

NUT, REAR | MODEL S/T This part replaces 08319-21103.

08319-2110A

$2.28

5

BRACKET (SILVER)

42330-29E01-13L

Unavailable

6

BOLT

09103-10275

$3.98

7

FOOTREST, RH | MODEL P This part replaces 43550-28C30-019.

43550-29E01

$111.52

7

FOOTREST, RH | MODEL R/S/T

43551-28E10

Unavailable

8

FOOTREST, LH | MODEL P This part replaces 43560-28C30-019.

43560-29E01

$109.42

8

FOOTREST, LH | MODEL R/S/T

43561-28E10

Unavailable

9

PIN

09200-10019

$6.83

10

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

11

SPRING, RH

09448-18030

$5.36

12

SPRING, LH

09448-18029

$5.36

13

WASHER | MODEL P/R

08322-01107

$2.15

13

WASHER, KNUCKLE END | MODEL S/T This part replaces 08322-01103.

08322-0110A

$1.84
