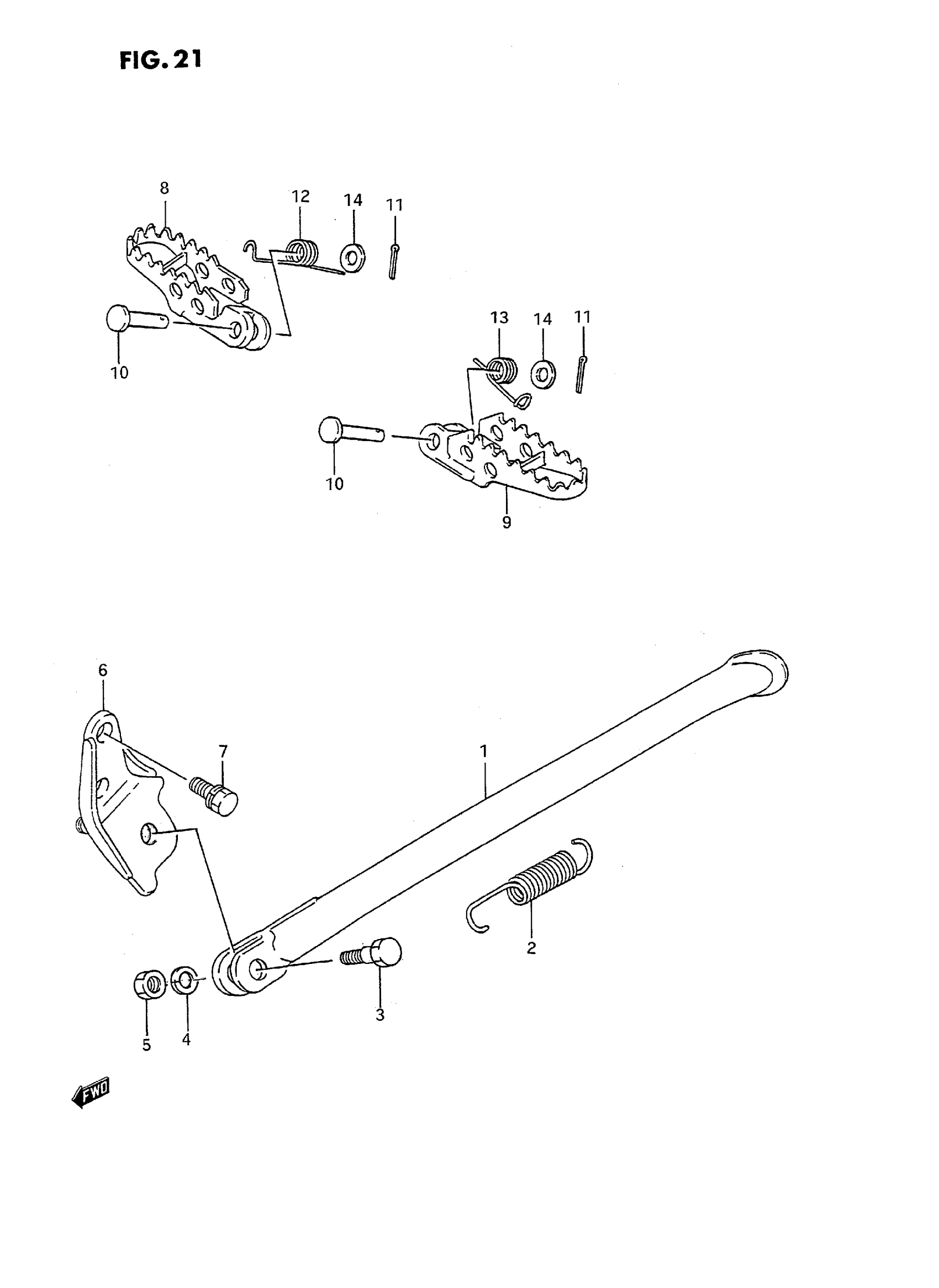

Suzuki RMX250T (1996) STAND - FOOTREST (MODEL K/L/M/N) Diagram

#

Description
Price

1

STAND, PROP (BLUE)

42310-05D00-19F

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 09443-18022.

09443-18022-XC0

Unavailable

3

BOLT This part replaces 09111-10019.

09111-10047

$3.76

4

LOCK WASHER

08321-01107

$1.83

5

NUT

08310-00107

$2.19

6

BRACKET (BLUE)

42330-05D00-19F

Unavailable

7

BOLT

01500-10167

$4.18

8

FOOTREST, RH (BLUE) | MODEL K/L

43550-26C02-19F

Unavailable

8

FOOTREST, RH | MODEL M This part replaces 43550-27C21-19F.

43550-29E01

$125.27

8

FOOTREST, RH | MODEL N This part replaces 43550-28C30-19F.

43550-29E01

$125.27

9

FOOTREST, LH (BLUE) | MODEL K/L

43560-26C02-19F

Unavailable

9

FOOTREST, LH (BLUE) | MODEL M This part replaces 43560-27C21-19F.

43560-28C30-19F

Unavailable

9

FOOTREST, LH (BLUE) | MODEL N

43560-28C30-19F

Unavailable

10

PIN | MODEL K/L

09200-08064

$5.61

10

PIN | MODEL M/N

09200-10019

$6.16

11

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.22

12

SPRING | MODEL K/L This part replaces 09448-14014.

09448-14014-XC0

Unavailable

12

SPRING, RH | MODEL M/N

09448-18030

$4.84

13

SPRING,FR FOOTR | MODEL K This part replaces 09448-14018.

09448-14018-XC0

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 09448-14044.

09448-14044-XC0

Unavailable

13

SPRING, LH | MODEL M/N

09448-18029

$4.84

14

WASHER | MODEL K/L

08322-01087

$1.86

14

WASHER | MODEL M/N

08322-01107

$1.88

15

REFER TO FIG.21A(F-6) FOR

SPECIAL NOTE

Unavailable
