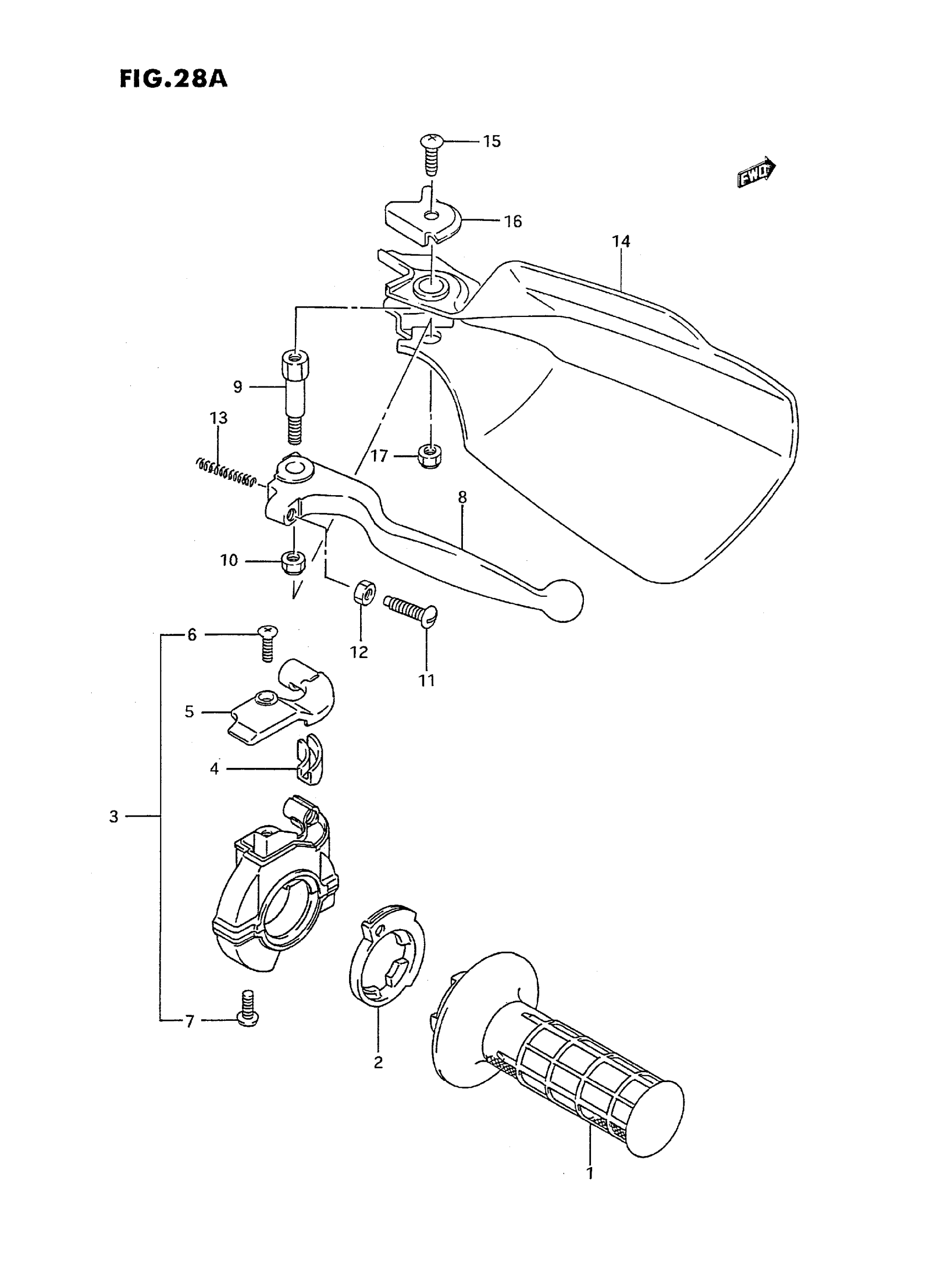

Suzuki RMX250T (1996) RIGHT KNUCKLE COVER (MODEL N/P/R/S/T) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-27C00

$26.37

2

ROTOR, THROTTLE

57114-14301

Unavailable

3

CASE ASSY, THROTTLE | Includes Item(s) 4 - 7

57100-14302

Unavailable

4

GUIDE, PIECE

57122-14301

Unavailable

5

COVER

57129-14302

Unavailable

6

SCREW This part replaces 02122-04103.

02122-0410A

$1.49

7

SCREW

02112-05167

$1.97

8

LEVER, BRAKE

57421-27C00

$14.24

9

BOLT

57431-05D00

$13.20

10

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

11

BOLT, ADJUST

57431-14511

$5.80

12

NUT This part replaces 08310-12055.

08310-0005A

$1.84

13

SPRING, RETURN

57318-14502

$4.48

14

COVER, KNUCKLE, RH (YELLOW) | MODEL N

57341-05D00-25Y

Unavailable

14

COVER,KNUCKLE RH (WHITE) | MODEL P/R/S/T This part replaces 57341-05D00-30H.

57341-05D10-30H

$45.37

15

SCREW (5X10) | MODEL N/P

09125-05042

$1.96

15

SCREW | MODEL R/S/T

02142-05107

$1.49

16

PLATE, UPPER

57355-14D00

$6.88

17

.NUT This part replaces 08319-21068.

08319-2106A

$1.91
