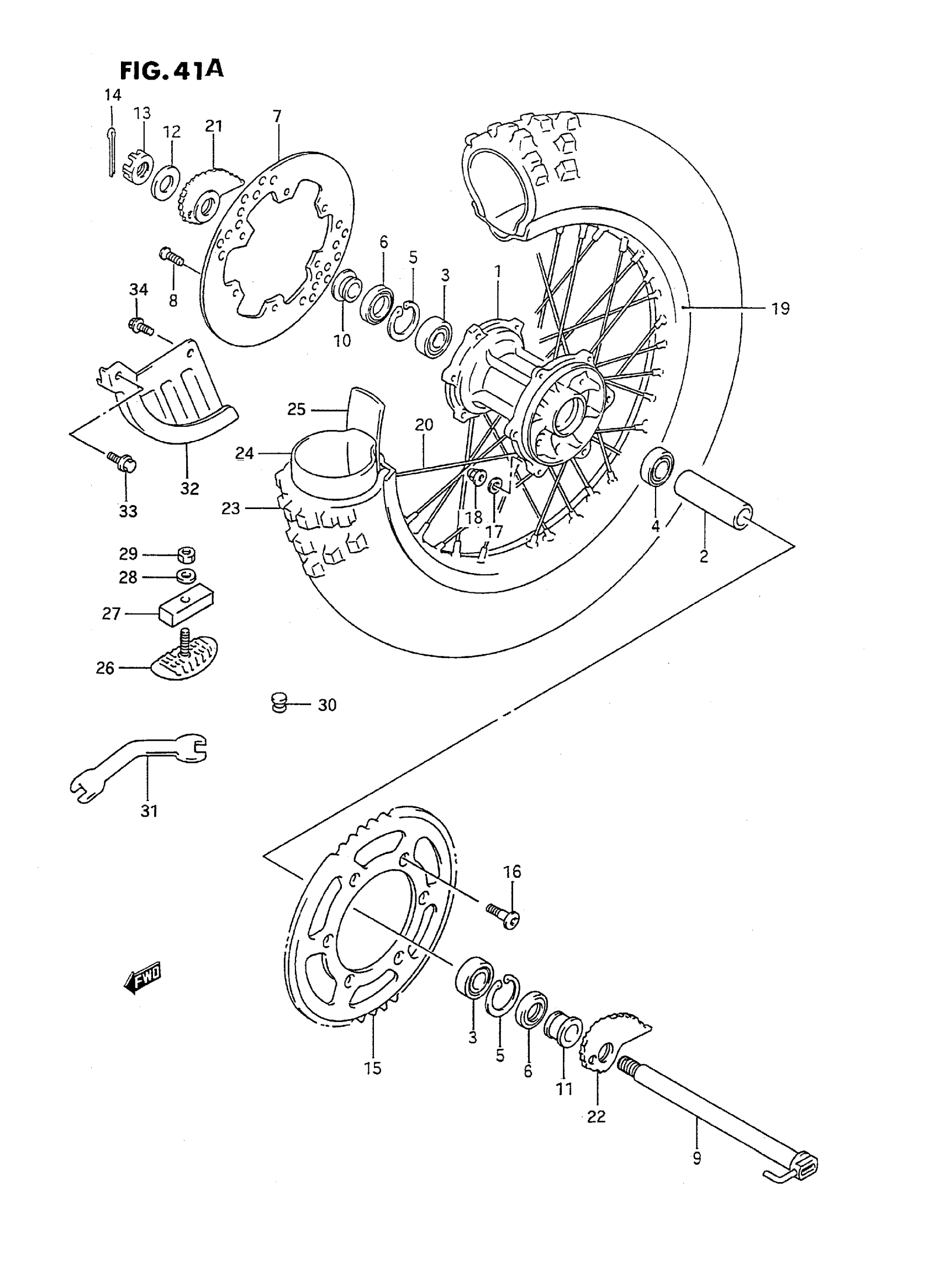

Suzuki RMX250T (1996) REAR WHEEL (MODEL N/P/R/S/T) Diagram

#

Description
Price

1

HUB, REAR

64110-28C01

Unavailable

2

SPACER, BEARING

64731-00B30

Unavailable

3

BEARING

08133-62047

$28.61

4

BEARING, RH This part replaces 08123-60047.

08133-60047

$25.82

5

CIRCLIP This part replaces 08331-41478.

08331-41479

$2.31

6

OIL SEAL (26X47X5)

09283-26019

$11.61

7

DISC, REAR BRAKE

69211-43D00

$299.30

8

SCREW, BRAKE DISC | MODEL N

02122-06167

$1.49

8

SCREW, BRAKE DISC | MODEL P/R/S

59421-29E00

$4.82

8

SCREW, SHIFT PAWL LIFTER | MODEL T This part replaces 09120-06011.

09120-06014

$2.45

9

AXLE, REAR

64710-05D00

Unavailable

10

SPACER, RH

64741-05D00

$17.82

11

SPACER, LH

64751-05D00

$24.20

12

WASHER

09160-19022

$4.90

13

NUT | MODEL N/P This part replaces 08314-41188.

08314-40187

$5.64

13

NUT | MODEL R/S/T This part replaces 08314-40183.

08314-4018A

$4.64

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

15

SPROCKET, REAR (NT:50) | STEEL

64511-00B12

$125.38

15

SPROCKET, REAR (NT:49) | OPT STEEL

64511-00B01

Unavailable

15

SPROCKET, REAR (NT:51) | OPT STEEL

64511-00B21

Unavailable

15

SPROCKET,RR (NT:49) | OPT ALUMINIUM->64511-28E00 This part replaces 64511-40281.

64511-28E00

$120.85

15

SPROCKET,RR (NT:49) | OPT ALUMINIUM

64511-28E00

$120.85

15

SPROCKET,RR (NT:50) | OPT ALUMINIUM->64511-15D20 This part replaces 64511-40271.

64511-36E00

$126.60

15

SPROCKET,RR (NT:50) | OPT ALUMINIUM This part replaces 64511-15D20.

64511-36E00

$126.60

15

SPROCKET, REAR (NT:51) | OPT ALUMINIUM

64511-40261

$155.22

16

SCREW

09120-08004

$2.40

17

WASHER

09164-08011

$2.71

18

NUT

08319-31087

$2.32

19

NO DESCRIPTION AVAILABLE This part replaces 65311-28C00.

65311-28C01

Unavailable

20

SPOKE ASSY, WHEEL

65320-26C00

Unavailable

21

ADJUSTER, CHAIN, RH

61410-05D00

Unavailable

22

ADJUSTER, CHAIN, LH

61420-05D00

Unavailable

23

TIRE, REAR (110/100-18) | BRIDGESTONE

65100-05D00

Unavailable

24

TUBE ASSY, WHEEL INNER

65200-29E10

Unavailable

25

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

$4.39

26

STOPPER, BEAD | ->65270-28E00 This part replaces 65270-14200.

65270-28E00

$58.75

26

STOPPER, BEAD

65270-28E00

$58.75

27

CUSHION, BEAD STOPPER

65271-27C00

$7.42

28

WASHER | MODEL N/P This part replaces 08322-11088.

08322-01087

$2.13

28

WASHER | MODEL R/S/T This part replaces 08322-01083.

08322-0108A

$1.92

29

NUT | MODEL N/P This part replaces 08310-12088.

08310-00087

$2.13

29

NUT | MODEL R/S/T This part replaces 08310-00083.

08310-0008A

$1.84

30

CAP

09250-08013

$2.68

31

SPANNER, OPEN

09813-00039

Unavailable

32

COVER, REAR DISC This part replaces 69231-28C00.

69200-28C00

$28.44

33

BOLT (6X20) | MODEL N This part replaces 09103-06130.

09103-06286

$2.20

33

BOLT | MODEL P This part replaces 01517-06207.

01550-06207

$2.30

33

BOLT | MODEL R/S/T This part replaces 01550-06203.

01550-0620A

$1.97

34

BOLT | MODEL N/P This part replaces 01517-06128.

01550-06127

$2.30

34

BOLT, CLAMP | MODEL R/S/T This part replaces 01550-06123.

01550-0612A

$1.97
