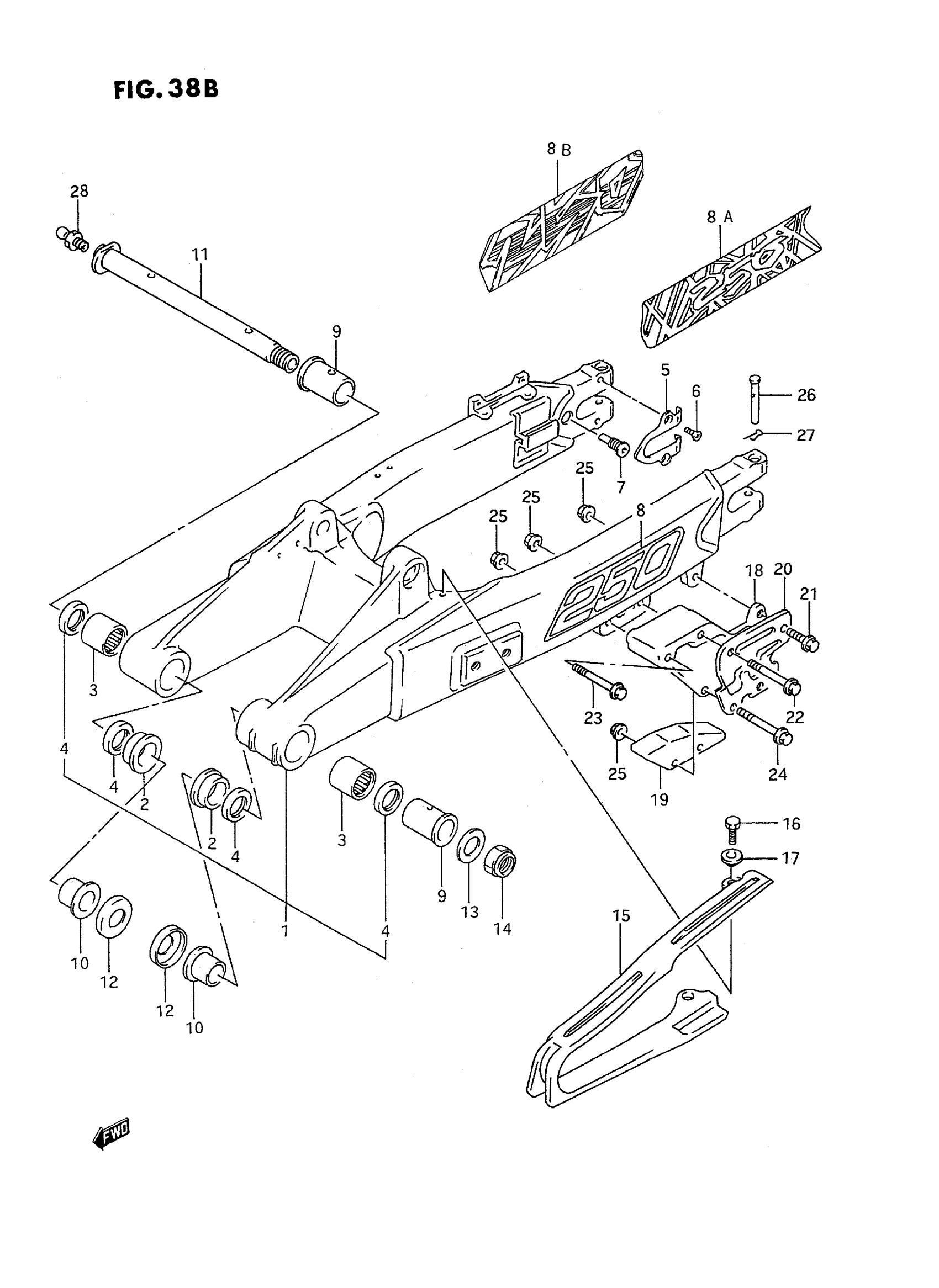

Suzuki RMX250T (1996) REAR SWINGING ARM (MODEL P/R/S/T) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | MODEL P->61000-29E30

61000-29E00

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL R->61000-29E30

61000-29E20

Unavailable

1

SWINGING ARM ASSY, REAR | WITHOUT EMBLEMMODEL S/T; Includes Item(s) 2 - 7

61000-29E30

Unavailable

2

BUSHING, PIVOT

61261-28C00

Unavailable

3

BEARING (22X29X30)

09263-22017

$22.58

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

5

.PLATE RR SWING ARM AXLE

61128-29E00

$18.33

6

SCREW

09126-05009

$2.28

7

SCREW (M10X21)

09139-10001

Unavailable

8

EMBLEM, 250 | MODEL P

68381-28C10-12R

Unavailable

8A

EMBLEM, 250 | MODEL R

68381-29E00-C2N

Unavailable

8A

EMBLEM, 250 | MODEL S

68381-29E00-D0K

Unavailable

8B

EMBLEM, RH 250 | MODEL T

68381-37E00-E8T

Unavailable

8B

EMBLEM, LH 250 | MODEL T

68391-05D00-E8T

Unavailable

9

SPACER, PIVOT

61251-05D00

Unavailable

10

SPACER, PIVOT INNER

61252-28C00

Unavailable

11

SHAFT SET,SWING This part replaces 61210-05D00.

61200-05811

Unavailable

12

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$7.01

13

WASHER | MODEL P This part replaces 08322-11168.

08322-01167

$2.10

13

WASHER | MODEL R/S/T This part replaces 08322-01163.

08322-0116A

$1.84

14

NUT

09159-16007

$12.61

15

BUFFER, CHAIN TOUCH DEFENSE

61273-27C01

$55.52

16

BOLT | MODEL P

01547-06167

$1.65

16

BOLT | MODEL R/S/T This part replaces 01547-06163.

01547-0616B

$2.45

17

WASHER

09169-06057

$3.18

18

GUIDE, CHAIN

61341-27C00

Unavailable

19

DEFENSE, CHAIN GUIDE | ->61348-27C20 This part replaces 61348-01B30.

61348-27C20

$32.18

19

DEFENSE, CHAIN GUIDE

61348-27C20

$32.18

20

PLATE, CHAIN GUIDE OUTER

61342-27C00

Unavailable

21

BOLT, REAR | MODEL P

01547-06307

$2.03

21

BOLT, FINAL GEAR CASE | MODEL R/S/T This part replaces 01547-06303.

01547-0630B

$2.73

22

BOLT | MODEL P

01547-06607

$3.18

22

BOLT | MODEL R/S/T This part replaces 01547-06603.

01547-0660B

$3.18

23

BOLT, FRONT | MODEL P

01547-06557

$2.32

23

BOLT | MODEL R/S/T This part replaces 01547-06553.

01547-0655B

$2.75

24

BOLT, UNDER | MODEL P

01547-06507

$2.41

24

BOLT | MODEL R/S/T This part replaces 01547-06503.

01547-0650B

$2.75

25

NUT

08319-31067

$2.03

26

PIN

09200-06065

Unavailable

27

SNAP PIN

09385-06012

$1.89

28

NIPPLE, GREASE

08351-11002

$4.73
