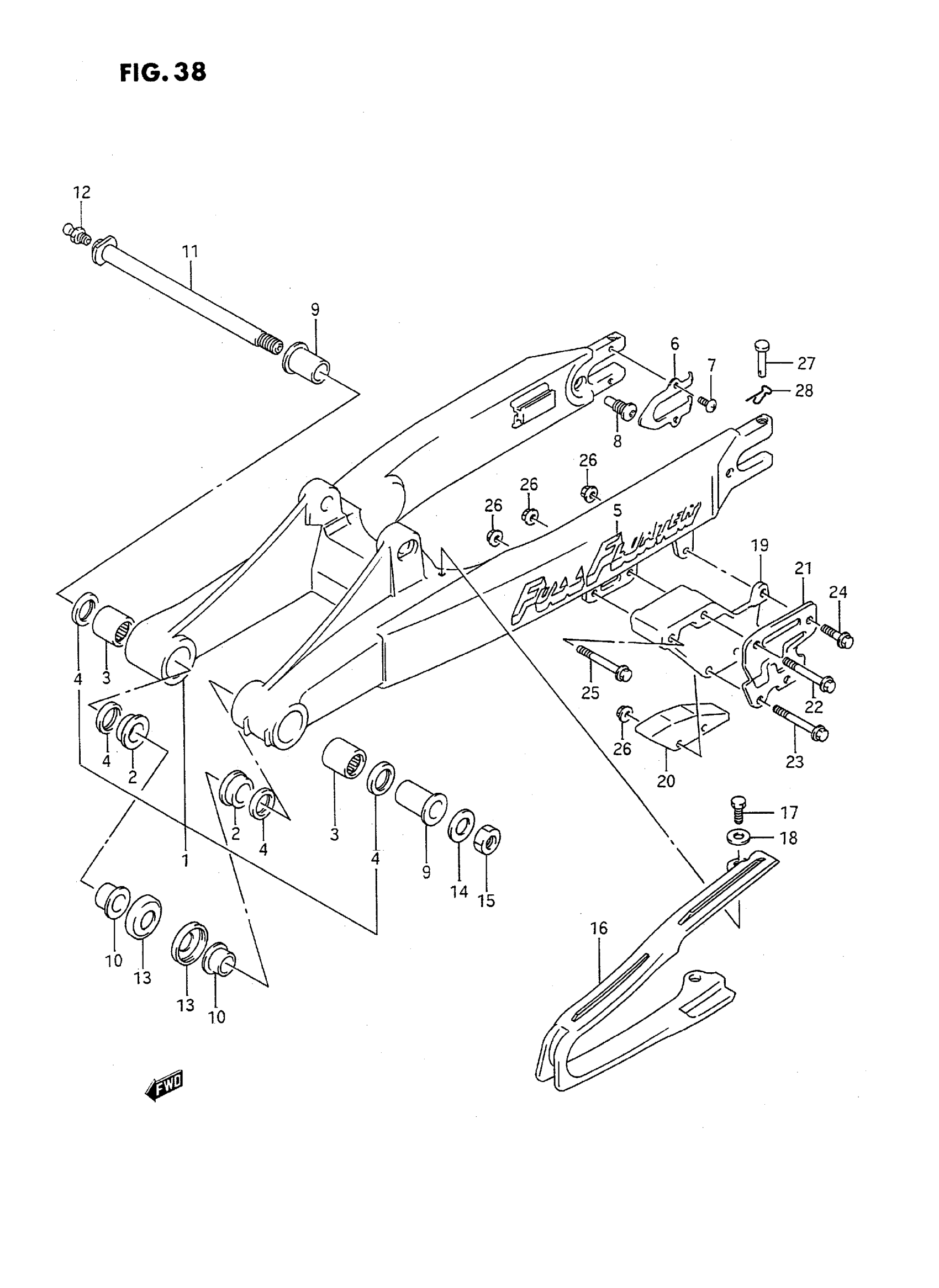

Suzuki RMX250T (1996) REAR SWINGING ARM (MODEL K/L) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | ->61000-05D01 This part replaces 61000-05D00.

61000-05D01

Unavailable

1

SWINGING ARM ASSY, REAR | WITHOUT EMBLEM; Includes Item(s) 2 - 8

61000-05D01

Unavailable

2

BUSH

61261-28C00

Unavailable

3

BEARING (22X29X30)

09263-22017

$22.58

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

5

EMBLEM | MODEL K->68381-27C00-97J This part replaces 68381-19A10-97J.

68381-27C00-97J

Unavailable

5

EMBLEM | MODEL L

68381-27C00-97J

Unavailable

6

PLATE, INNER

61128-05D00

Unavailable

7

SCREW,5X8 This part replaces 09125-05072.

09125-05072-XC0

$2.15

8

SCREW

09139-10001

Unavailable

9

SPACER

61251-05D00

Unavailable

10

SPACER, INNER

61252-28C00

Unavailable

11

SHAFT SET,SWING This part replaces 61210-05D00.

61200-05811

Unavailable

12

NIPPLE, GREASE

08351-11002

$4.73

13

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$7.01

14

WASHER This part replaces 08322-11168.

08322-01167

$2.10

15

NUT

09159-16007

$12.61

16

BUFFER, CHAIN DEFENSE

61273-27C01

$55.52

17

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

18

WASHER

09169-06057

$3.18

19

GUIDE, CHAIN

61341-27C00

Unavailable

20

DEFENSE, CHAIN GUIDE This part replaces 61348-01B30.

61348-27C20

$32.18

21

PLATE, GUIDE OUTER

61342-27C00

Unavailable

22

BOLT, UPPER REAR

01547-06607

$3.18

23

BOLT, UNDER

01547-06507

$2.41

24

BOLT, REAR

01547-06307

$2.03

25

BOLT, UPPER FRONT

01547-06557

$2.32

26

NUT

08319-31067

$2.03

27

PIN, AXLE

09200-06065

Unavailable

28

PIN

09385-06012

$1.89

29

REFER TO FIG.38A(J- 3) FOR

SPECIAL NOTE

Unavailable
