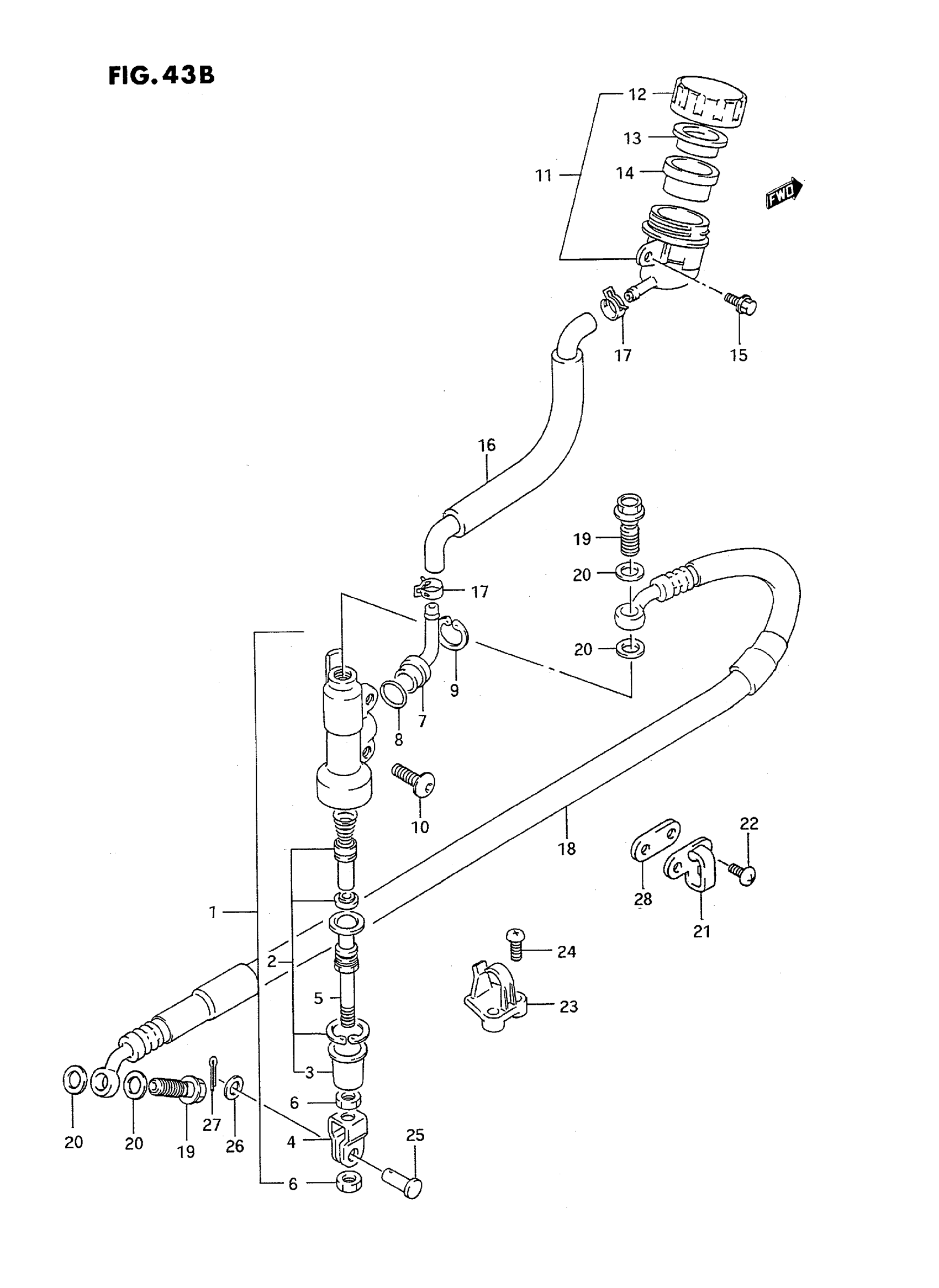

Suzuki RMX250T (1996) REAR MASTER CYLINDER (MODEL M/N/P/R/S/T) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-28C00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-00B21

$17.02

5

ROD, PUSH

69670-00B21

$29.25

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

O RING

69686-34200

$2.93

9

CIRCLIP

69674-00B20

$3.97

10

SCREW | MODEL M

09139-06030

$3.70

10

SCREW(6X16) | MODEL N/P/R/S/T This part replaces 09139-06067.

09139-06237

$2.38

11

TANK ASSY, RESERVOIR | Includes Item(s) 12 - 14

69740-03D10

$75.90

12

CAP

69669-03D10

$22.65

13

PLATE

69668-00B20

$7.67

14

DIAPHRGM

69667-00B20

$15.68

15

BOLT | MODEL M This part replaces 01517-06128.

01550-06127

$2.30

15

BOLT | MODEL N/P/R/S

01547-06127

$1.65

15

BOLT | MODEL T This part replaces 01547-06123.

01547-0612B

$1.49

16

HOSE, RESERVOIR TANK

69731-27C00

Unavailable

17

CLAMP

69735-00B20

$4.10

18

HOSE, REAR BRAKE

69480-05D10

Unavailable

19

UNION | MODEL M/N/P This part replaces 09360-10034.

09360-10062

$6.43

19

UNION | MODEL R/S This part replaces 09360-10040.

09360-10062

$6.43

19

UNION | MODEL T This part replaces 09360-10042.

09360-10062

$6.43

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

GUIDE, BRAKE HOSE, FRONT

61196-27C20

$9.38

22

SCREW | MODEL M/N/P

02142-05167

$1.49

22

SCREW | MODEL R/S/T This part replaces 02142-05163.

02142-0516A

$1.49

23

GUIDE, BRAKE HOSE, REAR

61196-03D00

$4.54

24

SCREW, OUTER | MODEL M/N/P This part replaces 02112-35168.

02112-35167

$2.63

24

SCREW | MODEL R/S/T This part replaces 02112-35163.

02112-3516A

$2.43

25

PIN

09200-08048

$2.92

26

WASHER

09160-08074

Unavailable

27

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

28

SEAT, HOSE GUIDE

61197-27C00

Unavailable
