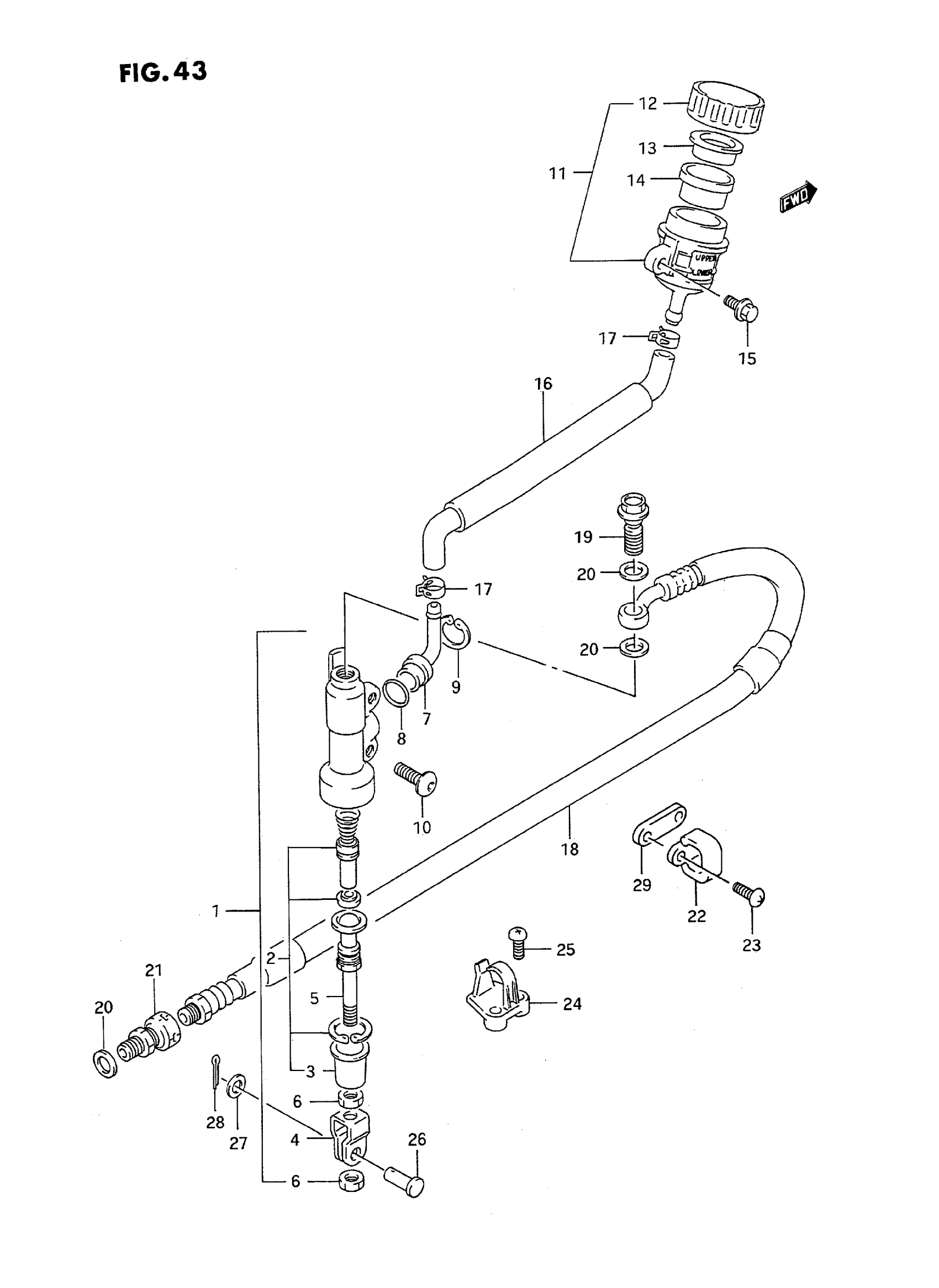

Suzuki RMX250T (1996) REAR MASTER CYLINDER (MODEL K) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-00B23

Unavailable

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-00B21

$17.02

5

ROD, PUSH

69670-00B21

$29.25

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

O RING

69686-34200

$2.93

9

CIRCLIP

69674-00B20

$3.97

10

BOLT

09106-06064

$6.02

11

TANK ASSY, RESERVOIR | Includes Item(s) 12 - 14

69740-05D00

Unavailable

12

CAP

69669-03D10

$22.65

13

PLATE

69668-00B20

$7.67

14

DIAPHRGM

69667-00B20

$15.68

15

BOLT This part replaces 01517-06128.

01550-06127

$2.30

16

HOSE, RESERVOIR TANK

69731-00B23

Unavailable

17

CLAMP

69735-00B20

$4.10

18

HOSE, REAR BRAKE

69480-05D00

Unavailable

19

UNION BOLT (10X1.00X24)

09360-10017

$3.42

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

ADAPTER, BRAKE HOSE

59290-14501

$36.17

22

GUIDE, BRAKE HOSE, FRONT

61196-00B21

$6.79

23

SCREW

02142-05167

$1.49

24

GUIDE, BRAKE HOSE, REAR

61196-03D00

$4.54

25

SCREW, OUTER This part replaces 02112-35168.

02112-35167

$2.63

26

PIN

09200-08048

$2.92

27

WASHER

09160-08074

Unavailable

28

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

29

SEAT, HOSE GUIDE

61197-27C00

Unavailable

30

REFER TO FIG.43A(K- 7) FOR

SPECIAL NOTE

Unavailable
