Description

Price

CALIPER ASSY, REAR | Includes Item(s) 1 - 14

69100-05D11

Unavailable

1

PISTON SET

69100-43810

$36.64

2

SEAL SET, PISTON This part replaces 59107-00B20.

69100-36810

$9.03

3

SEAL, DUST

59108-00B20

Unavailable

4

NO DESCRIPTION AVAILABLE | ->69100-43821 This part replaces 69100-43820.

69100-43821

Unavailable

5

SPRING

59315-27C10

$11.68

6

BOOT

59386-13A00

$7.95

7

PIN

59382-14500

$8.95

8

BOOT

59303-14500

$5.52

9

PIN

59305-27C00

$23.48

10

BRACKET

69351-05D00

Unavailable

11

RETAINER

69113-43D00

$8.83

12

.PIN HANGER

69345-43D00

$11.55

13

BLEEDER

59121-01A00

$8.73

14

CAP

59122-01A00

$4.34

15

GUARD, CALIPER

69725-27C20

Unavailable

16

BOLT

01547-06107

$1.65

17

REFER TO FIG.42C(K- 5) FOR

SPECIAL NOTE

Unavailable

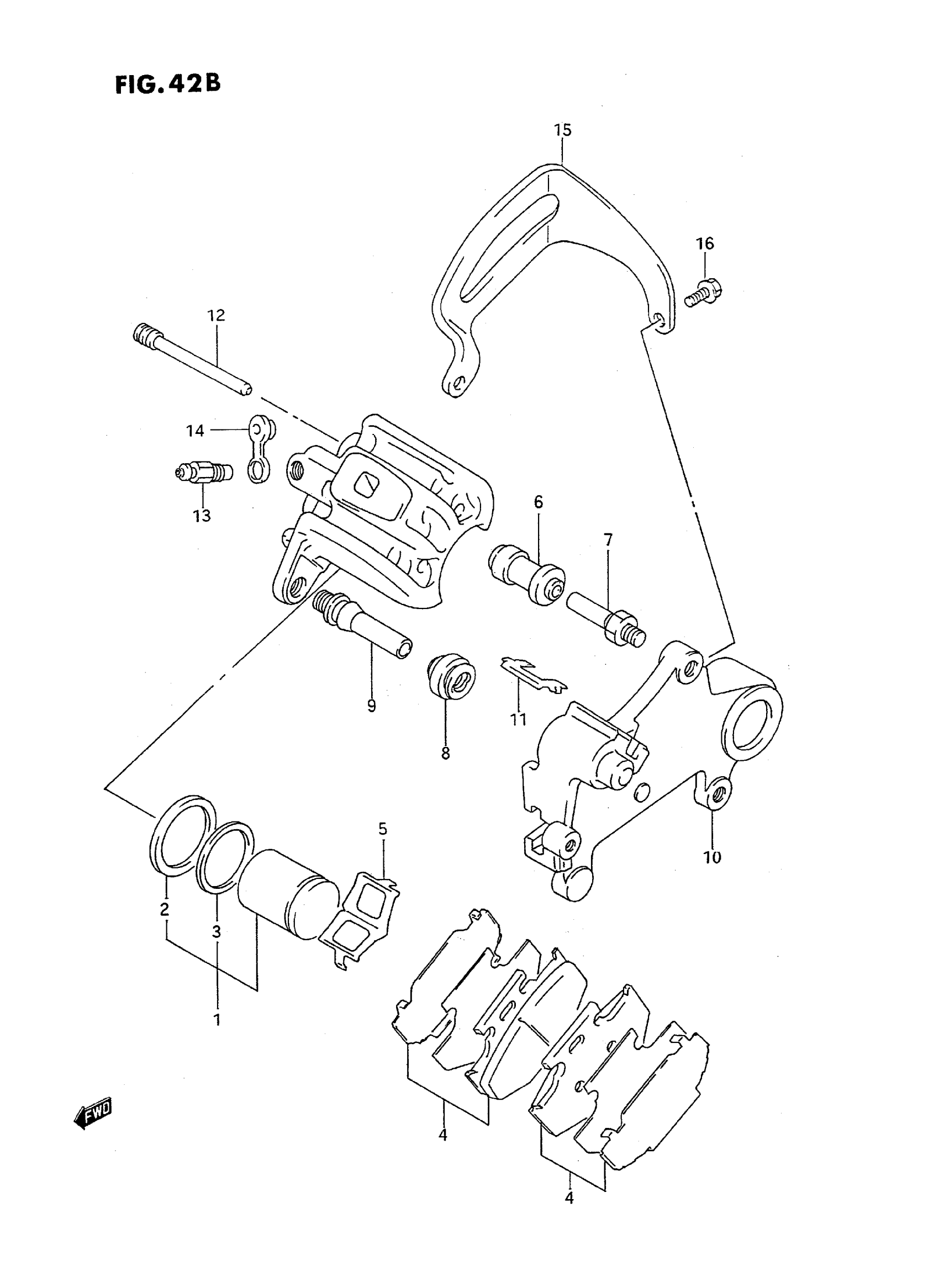

Suzuki RMX250T (1996) REAR CALIPERS (MODEL N) Diagram

CALIPER ASSY, REAR | Includes Item(s) 1 - 14

PISTON SET

SEAL SET, PISTON This part replaces 59107-00B20.

SEAL, DUST

NO DESCRIPTION AVAILABLE | ->69100-43821 This part replaces 69100-43820.

SPRING

BOOT

PIN

BOOT

PIN

BRACKET

RETAINER

.PIN HANGER

BLEEDER

CAP

GUARD, CALIPER

BOLT

REFER TO FIG.42C(K- 5) FOR
