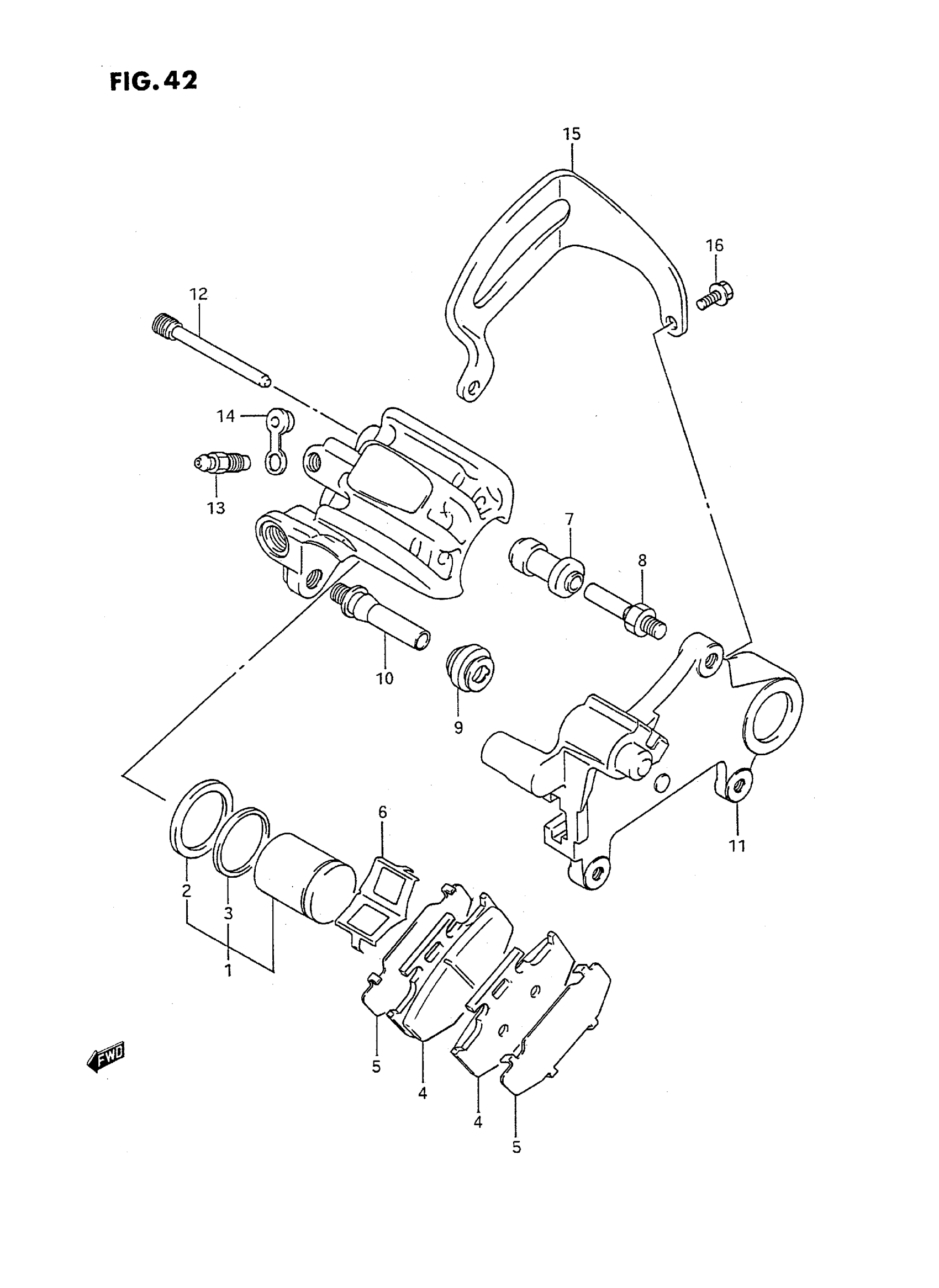

Suzuki RMX250T (1996) REAR CALIPERS (MODEL K) Diagram

#

Description
Price

CALIPER ASSY, REAR | Includes Item(s) 1 - 14

69100-28C00

Unavailable

1

PISTON SET

69100-27830

Unavailable

2

SEAL SET, PISTON This part replaces 59107-00B20.

69100-36810

$9.03

3

SEAL, DUST

59108-00B20

Unavailable

4

NO DESCRIPTION AVAILABLE | ->69100-28810 This part replaces 69140-28C00.

69100-28810

Unavailable

5

SHIM

69132-28C00

$9.47

6

SPRING

59315-27C00

$14.02

7

BOOT

59386-13A00

$7.95

8

PIN

59382-14500

$8.95

9

BOOT

59303-14500

$5.52

10

PIN

59305-27C00

$23.48

11

BRACKET

69351-27C00

Unavailable

12

PIN

59345-14600

$16.25

13

BLEEDER

59121-01A00

$8.73

14

CAP

59122-01A00

$4.34

15

GUARD, CALIPER This part replaces 69725-27C10.

69725-27C20

Unavailable

16

BOLT

01547-06107

$1.65

17

REFER TO FIG.42A(K- 3) FOR

SPECIAL NOTE

Unavailable
