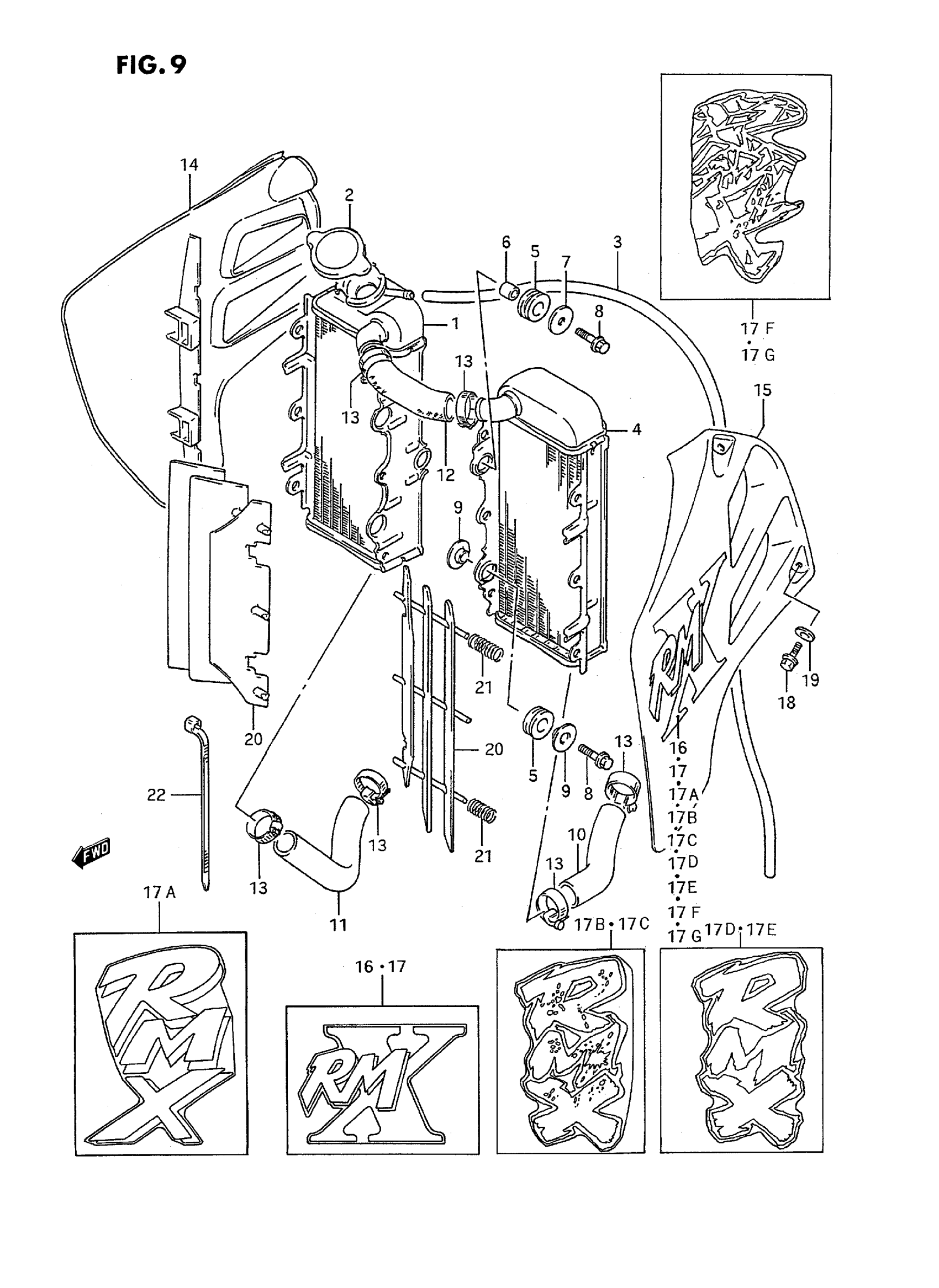

Suzuki RMX250T (1996) RADIATOR (MODEL K/L/M/N/P) Diagram

#

Description
Price

1

RADIATOR, RH | MODEL K/L

17710-28C01

Unavailable

1

RADIATOR, RH | MODEL M/N/P

17710-05D00

Unavailable

2

CAP, RADIATOR This part replaces 17730-20930.

17730-08J00

$42.50

3

HOSE (5X8X2000) | L:1000->650 This part replaces 09351-50801-00A.

09351-50803-00B

$9.10

4

RADIATOR, LH | MODEL K/L

17720-26C00

Unavailable

4

RADIATOR, LH | MODEL M/N/P

17720-05D00

Unavailable

5

CUSHION, SUPPORT

17787-19A00

$3.56

6

SPACER (6.5X10.5X12) | MODEL K

09180-07004

$2.30

6

SPACER (6.5X10.5X12) | MODEL L/M/N/P

09180-06221

Unavailable

7

WASHER (6.5X24X1.2) This part replaces 09160-06002.

09160-06114

$2.03

8

BOLT

01547-06257

$2.03

9

WASHER, RADIATOR SUPPORT

17781-26C00

$2.81

10

HOSE, INLET

17851-28C00

Unavailable

11

HOSE, OUTLET | MODEL K

17852-28C00

Unavailable

11

HOSE, OUTLET | MODEL L/M/N/P

17852-28C10

Unavailable

12

HOSE, CYLINDER JOINT | MODEL K/L This part replaces 17853-28C00.

17851-01A00

$22.10

12

HOSE, CYLINDER JOINT | MODEL M/N/P This part replaces 17853-28C20.

17851-01A00

$22.10

13

CLAMP This part replaces 09402-25502.

09402-28511

$6.88

14

COVER, RADIATOR RH

17761-28C00-25Y

Unavailable

15

COVER, RADIATOR LH

17762-28C00-25Y

Unavailable

16

EMBLEM, RADIATOR COVER, RH | MODEL K

68665-05D00-0KP

Unavailable

17

EMBLEM, RADIATOR COVER, RH | MODEL K This part replaces 68675-05D00-0KP.

68665-05D00-0KP

Unavailable

17A

EMBLEM, RADIATOR COVER | MODEL L

68661-05D00-A16

Unavailable

17B

EMBLEM, RADIATOR COVER, RH | MODEL M

68661-05D10-1AD

Unavailable

17C

EMBLEM, RADIATOR COVER, LH | MODEL M

68671-05D00-1AD

Unavailable

17D

EMBLEM, RADIATOR COVER, RH | MODEL N

68661-05D20-M24

Unavailable

17E

EMBLEM, RADIATOR COVER, LH | MODEL N

68671-05D20-M24

Unavailable

17F

EMBLEM, RADIATOR COVER, RH | MODEL P

68661-05D30-A4H

Unavailable

17G

EMBLEM, RADIATOR COVER, LH | MODEL P

68671-05D30-A4H

Unavailable

18

BOLT

01547-06127

$1.65

19

WASHER (6.5X20X1.5) | MODEL K/L/M/N

09168-06027

$2.80

19

WASHER (6.5X18X1.0) | MODEL P

09160-06028

$1.49

20

LOUVER, RADIATOR

17831-26C00

$19.41

21

SPRING | MODEL KMODEL L/M/N/P This part replaces 09440-11024.

09440-11024-XC0

$3.79

22

CLAMP

09407-18402

$2.19

23

REFER TO FIG.9A(C-15) FOR

SPECIAL NOTE

Unavailable
