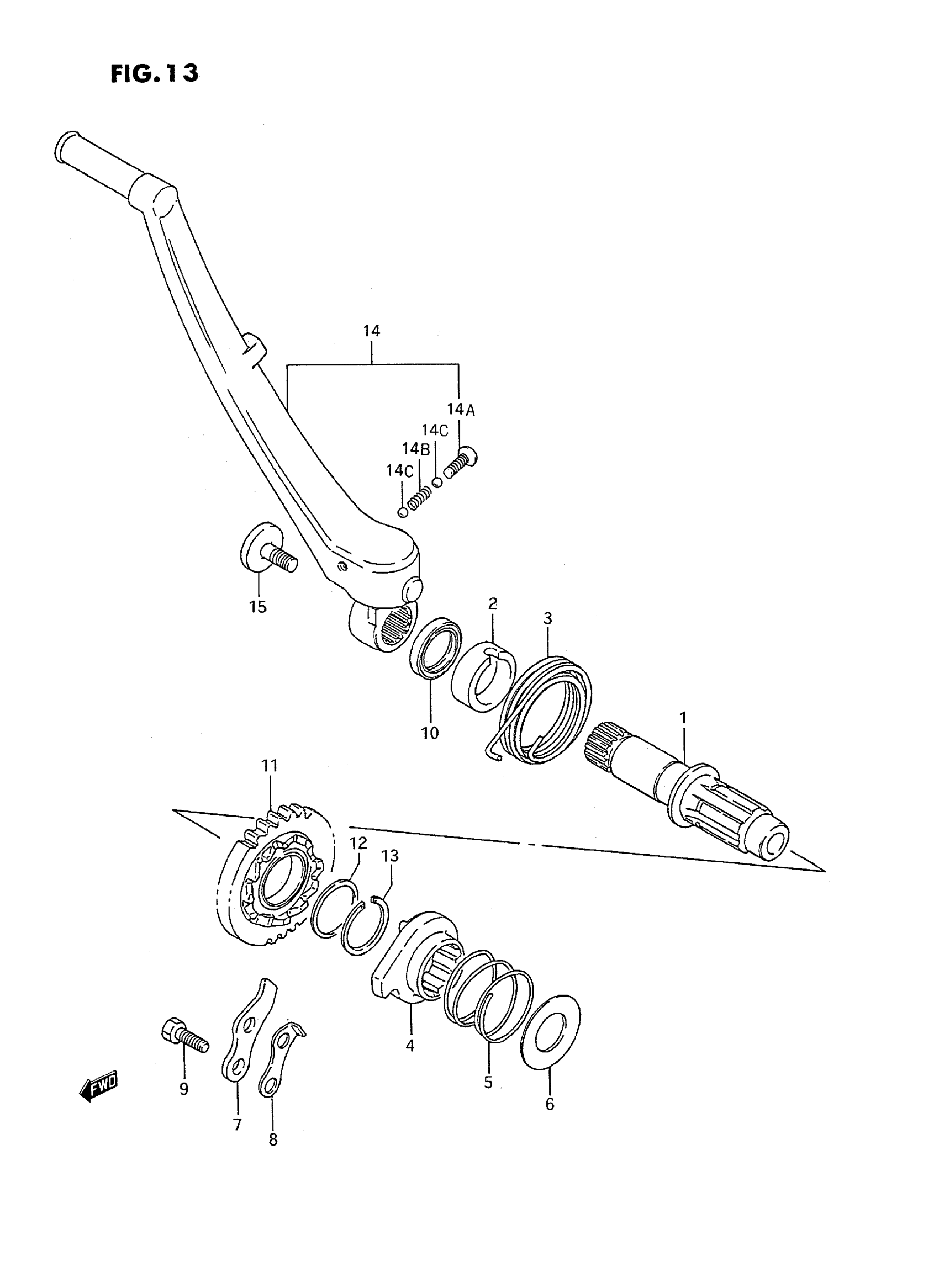

Suzuki RMX250T (1996) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | MODEL K/L/M This part replaces 26211-05D00.

26211-05D03

Unavailable

1

SHAFT, KICK STARTER | MODEL N This part replaces 26211-05D01.

26211-05D03

Unavailable

1

SHAFT, KICK STARTER | MODEL P/R/S/T This part replaces 26211-05D02.

26211-05D03

Unavailable

2

GUIDE, KICK STARTER This part replaces 26221-01B00.

26221-01B01

$4.35

3

SPRING

09448-48011

$12.55

4

STARTER, KICK

26231-22A10

$63.88

5

SPRING

09440-32002

$2.27

6

PLATE

08211-17341

$2.50

7

GUIDE, KICK STARTER

26232-40200

$7.08

8

STOPPER, KICK STARTER This part replaces 26233-40200.

26233-40201

$5.52

9

BOLT | MODEL K/L/M/N/P This part replaces 01107-06127.

01500-06127

$1.97

9

BOLT | MODEL R/S/T This part replaces 01500-06123.

01500-0612A

$1.78

10

OIL SEAL (20X27X5)

09283-20031

$5.24

11

GEAR, KICK DRIVE (NT:30)

26240-28C00

Unavailable

12

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

13

CIRCLIP

09380-22006

$3.10

14

LEVER ASSY,KICK | MODEL K This part replaces 26300-00B11.

26300-28E21

$263.67

14

LEVER ASSY,KICK | MODEL L This part replaces 26300-28C00.

26300-28E21

$263.67

14

LEVER ASSY,KICK | MODEL M/N This part replaces 26300-28C20.

26300-28E21

$263.67

14

LEVER ASSY,KICK | MODEL P This part replaces 26300-28C22.

26300-28E21

$263.67

14

LEVER ASSY,KICK | MODEL R This part replaces 26300-28E10.

26300-28E21

$263.67

14

LEVER ASSY,KICK | MODEL S/T; Includes Item(s) 14A - 14C This part replaces 26300-28E20.

26300-28E21

$263.67

14A

SCREW, KICK STARTER

09127-06016

$2.96

14B

SPRING, KICK STARTER

09440-05031

$1.49

14C

BALL

06111-07004

$1.49

15

BOLT

09106-08098

$4.64
