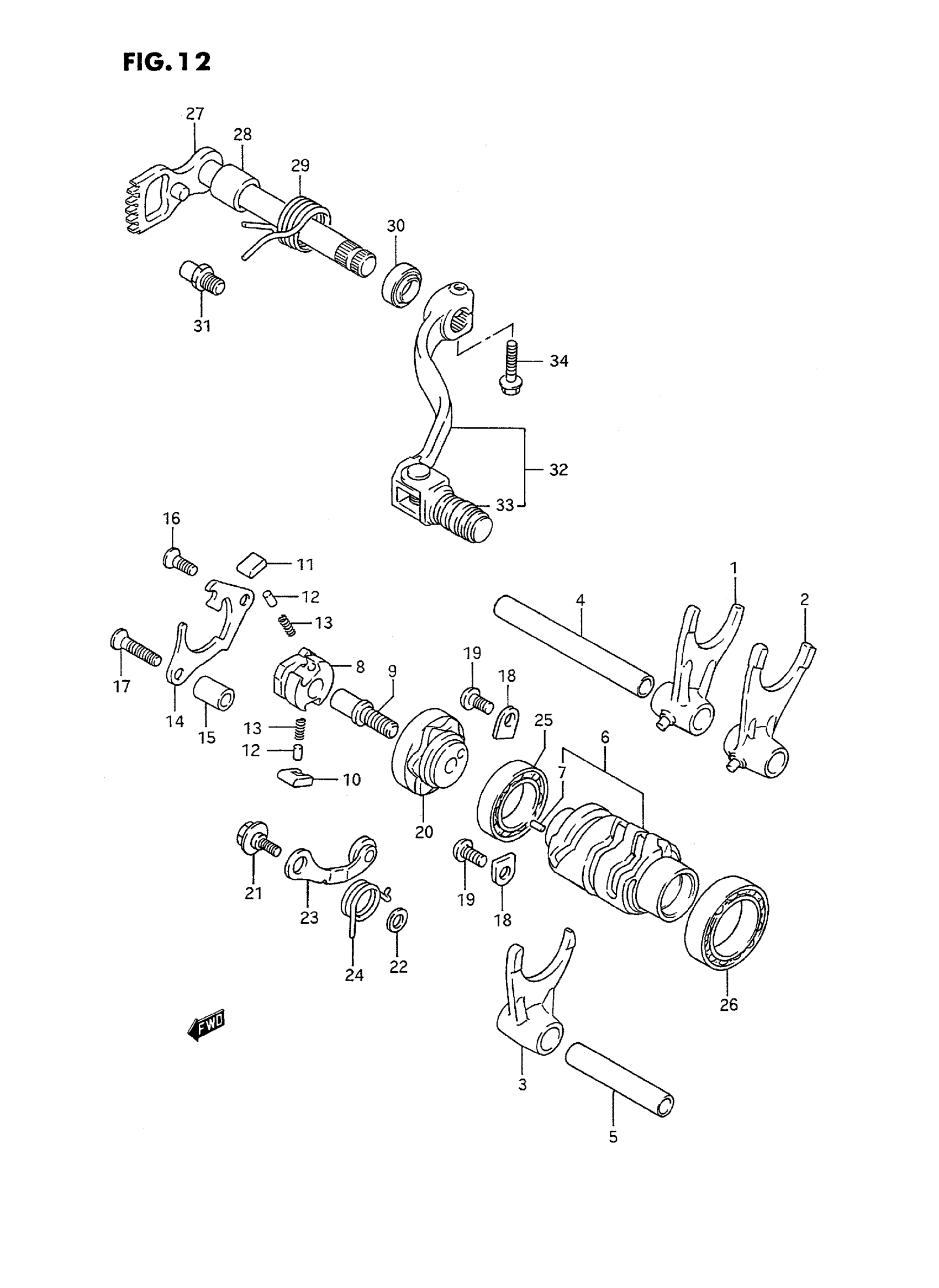

Suzuki RMX250T (1996) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, NO.1

25211-28C01

$82.92

2

FORK, GEAR SHIFT NO.2 | MODEL K/L/M/N/P/R/S This part replaces 25221-28C01.

25221-28C02

$87.77

2

FORK, NO.2 | MODEL T

25221-28C02

$87.77

3

FORK, GEAR SHIFT NO.3 | MODEL K/L/M/N/P/R/S This part replaces 25231-28C01.

25231-28C02

$83.32

3

FORK, NO.3 | MODEL T

25231-28C02

$83.32

4

SHAFT, GEAR FORK NO.1 This part replaces 25411-27C00.

25411-37F20

$22.22

5

SHAFT, NO.2 (L:60) This part replaces 25421-27C00.

25421-27C01

$18.43

6

CAM | MODEL K This part replaces 25310-28C03.

25310-28C20

Unavailable

6

CAM | MODEL L/M/N This part replaces 25310-28C10.

25310-28C20

Unavailable

6

CAM | MODEL P/R/S/T; Includes Item(s) 7 - 7

25310-28C20

Unavailable

7

PIN, SHIFT CAM STOPPER PLATE | L:11.8,MODEL K

09261-04011

Unavailable

7

PIN (4X13.8) | MODEL L/M/N/P/R/S/T

04221-04089

$1.49

8

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$26.93

9

PIN, SHIFT CAM DRIVEN GEAR | MODEL K/L/M/N/P This part replaces 25313-27C00.

25313-27C02

$13.05

9

PIN, SHIFT CAM DRIVEN GEAR | MODEL R/S/T This part replaces 25313-27C01.

25313-27C02

$13.05

10

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

11

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

12

PIN

09261-05003

$1.54

13

SPRING

09440-04003

$1.54

14

LIFTER, PAWL

25331-28C00

$24.20

15

SPACER (6.2X12X18)

09180-06204

Unavailable

16

SCREW | MODEL K/L/M/N/P This part replaces 02122-06128.

02122-06127

$1.84

16

SCREW | MODEL R/S/T This part replaces 02122-06123.

02122-0612A

$1.49

17

SCREW | MODEL K/L/M/N/P This part replaces 02122-06308.

02122-0630B

$2.06

17

SCREW | MODEL R/S/T This part replaces 02122-06303.

02122-0630B

$2.06

18

RETAINER | MODEL K/L/M/N/P/R This part replaces 24741-20A10.

24741-21A00

$2.81

18

RETAINER, SHIFT CAM BEARING | MODEL S/T

24741-21A00

$2.81

19

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

20

PLATE, SHIFT CAM STOPPER | MODEL K This part replaces 25381-27C02.

25381-28C20

Unavailable

20

PLATE, SHIFT CAM STOPPER | MODEL L/M/N This part replaces 25381-27C10.

25381-28C20

Unavailable

20

PLATE, STOPPER | MODEL P/R/S/T

25381-28C20

Unavailable

21

BOLT, SHIFT CAM STOPPER

09111-06041

$2.61

22

WASHER

08211-06121

$1.54

23

STOPPER, SHIFT CAM | MODEL K/L/M/N This part replaces 25350-28C00.

25350-28C20

Unavailable

23

STOPPER, CAM | MODEL P/R/S/T

25350-28C20

Unavailable

24

SPRING | MODEL K/L/M/N

09448-18024

Unavailable

24

SPRING | MODEL P/R/S/T

09448-18025

Unavailable

25

BEARING, RH

08140-69050

$35.66

26

BEARING, LH

09263-30035

Unavailable

27

SHAFT, GEAR SHIFTING

25510-28C30

$96.22

28

SPACER (14X20X17.5)

09180-14016

$3.96

29

SPRING | MODEL K/L/M/N

09444-26001

$5.88

29

SPRING | MODEL P/R/S/T

09444-26013

$3.10

30

OIL SEAL

09283-14006

$6.70

31

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

32

LEVER ASSY, GEAR SHIFT | MODEL K/L/M/N/P/R This part replaces 25600-05D00.

25600-05D03

$90.19

32

LEVER ASSY, GEAR SHIFT | MODEL S/T; Includes Item(s) 33 - 33 This part replaces 25600-05D01.

25600-05D03

$90.19

33

RUBBER,GEAR SHI | MODEL K/L/M/N/P/R This part replaces 25652-27C00.

25652-27C01

$22.85

33

.RUBBER, GEAR SHIFT PEDAL | MODEL S/T

25652-03D00

$5.05

34

BOLT | MODEL K/L/M/N/P

01547-06257

$2.03

34

BOLT, FINAL GEAR CASE COVER | MODEL R/S/T This part replaces 01547-06253.

01547-0625B

$2.45
