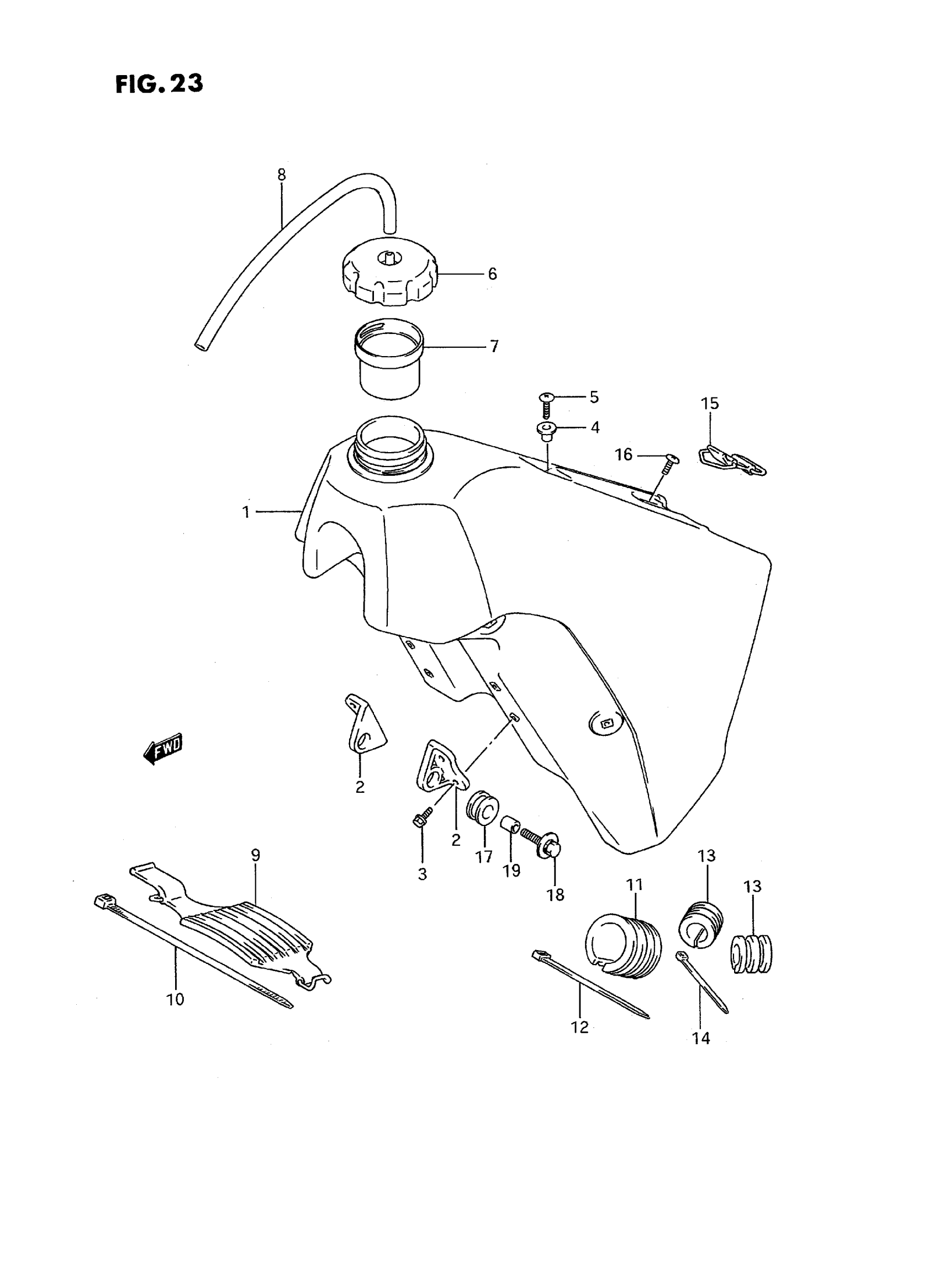

Suzuki RMX250T (1996) FUEL TANK Diagram

#

Description
Price

1

TANK SET, FUEL (YELLOW) | MODEL K/L This part replaces 44100-05850-25Y.

44100-05853-25Y

Unavailable

1

TANK SET, FUEL (YELLOW) | MODEL M/N This part replaces 44100-05851-25Y.

44100-05853-25Y

Unavailable

1

TANK SET, FUEL (YELLOW) | MODEL P/R/S This part replaces 44100-05852-25Y.

44100-05853-25Y

Unavailable

1

TANK SET, FUEL (YELLOW) | MODEL T; Includes Item(s) 2 - 6

44100-05853-25Y

Unavailable

2

BRACKET, FRONT

44131-27C01

$12.63

3

BOLT, FRONT

01547-06127

$1.65

4

HOOK, SEAT FR | MODEL K/L/M/N/P This part replaces 44132-27C00.

44132-27C01

$17.17

4

HOOK, SEAT FR | MODEL R/S/T

44132-27C01

$17.17

5

SCREW, HOOK

02142-06207

$1.49

6

CAP, FUEL TANK

44200-19A01

$48.20

7

TUBE, FILLER INLET

44199-19A00

$6.28

8

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

9

CUSHION, UPPER NO.1 | MODEL K

44541-27C00

Unavailable

9

CUSHION, UPPER NO.1 | MODEL L/M/N/P/R/S/T

44541-26C00

$18.02

10

CLAMP | MODEL K

09407-30402

$4.11

10

CLAMP | MODEL L/M/N/P/R/S This part replaces 09407-20405.

09407-25402

$4.64

10

CLAMP | MODEL T

09407-25402

$4.64

11

CUSHION, UPPER REAR

44542-26C00

$9.33

12

CLAMP, UPPER REAR CUSHION

09407-30402

$4.11

13

CUSHION, UPPER NO.2

44541-26C00

$18.02

14

CLAMP

09407-14407

$3.57

15

BAND, REAR

44560-27C00

$7.69

16

SCREW | MODEL K/L/M/N/P This part replaces 02142-06164.

02142-0616A

$1.49

16

SCREW | MODEL R/S/T This part replaces 02142-06163.

02142-0616A

$1.49

17

CUSHION

09320-12030

$2.53

18

BOLT

09118-08132

Unavailable

19

SPACER This part replaces 09180-08003.

09180-08191

$2.53
