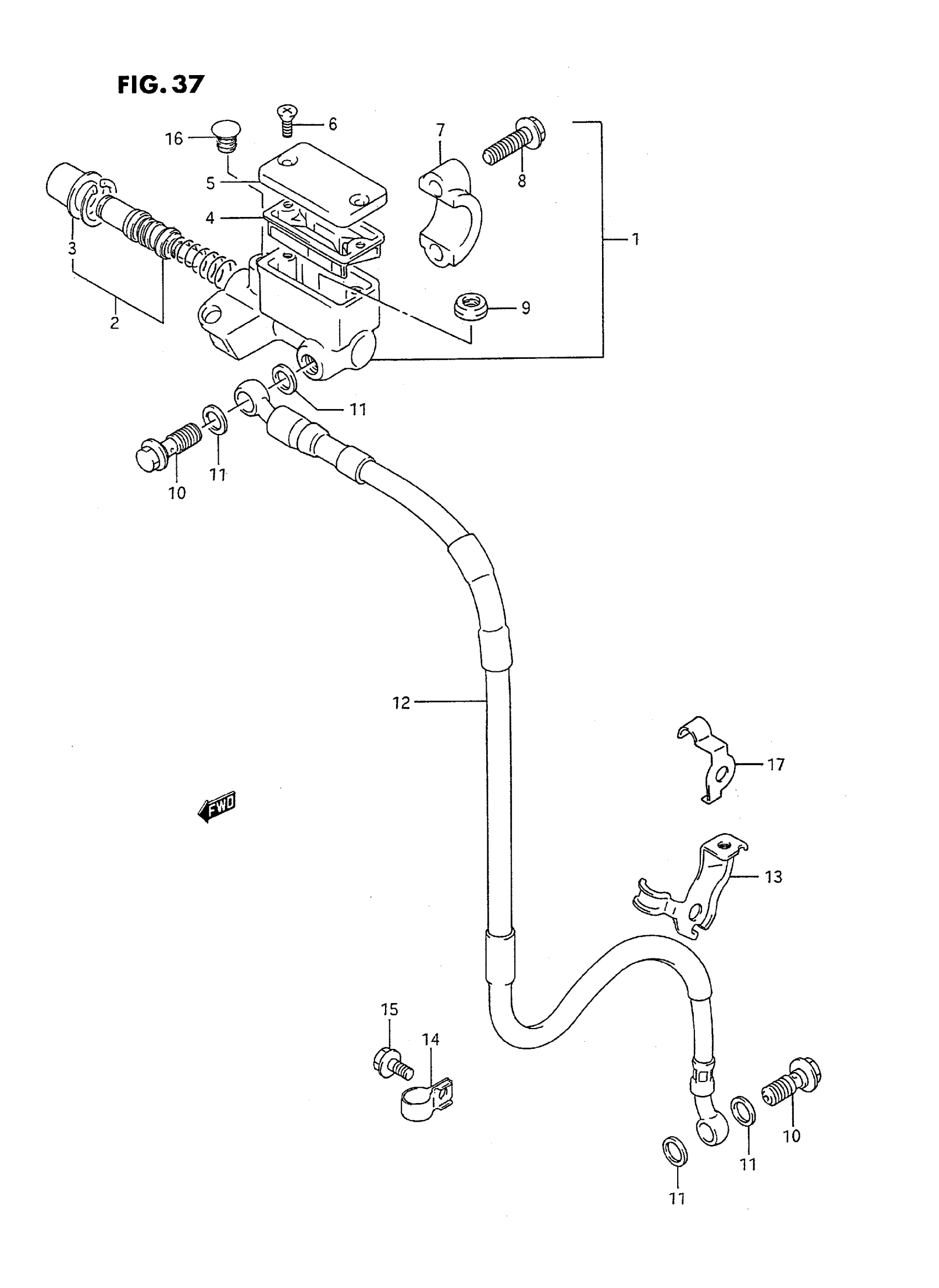

Suzuki RMX250T (1996) FRONT MASTER CYLINDER (MODEL K/L/M/N/P/R/S) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9 This part replaces 59600-05D00.

59600-05D01

$307.13

2

PISTON & CUP SET

59600-27820

$60.97

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-44B00

$9.78

5

CAP

59669-05D00

$16.76

6

SCREW

69689-49300

$1.91

7

HOLDER

59671-27C00

$17.02

8

BOLT

59675-27C00

$3.54

9

SEPARATOR

59748-14500

$11.87

10

BOLT (10X1.00X24) | MODEL K/LMODEL M/N/P

09360-10017

$3.42

10

UNION | MODEL M/N/P This part replaces 09360-10034.

09360-10062

$6.43

10

UNION | MODEL R/S This part replaces 09360-10039.

09360-10061

$6.43

10

UNION | MODEL R/S This part replaces 09360-10040.

09360-10062

$6.43

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE, FRONT BRAKE | MODEL K/L

59480-05D01

Unavailable

12

HOSE, FRONT BRAKE | MODEL M/N This part replaces 59480-05D10.

59480-05D11

Unavailable

12

HOSE, FRONT BRAKE | MODEL P/R/S

59480-05D11

Unavailable

13

CLAMP, BRAKE HOSE | MODEL K/L

59270-05D00

Unavailable

13

CLAMP, BRAKE HOSE | MODEL M

59270-05D10

Unavailable

14

CLAMP, BRAKE HOSE

59247-28C01

Unavailable

15

BOLT | MODEL K/L This part replaces 01934-06108.

01570-06107

$2.98

15

BOLT (6X10) | MODEL M/N/P/R/S This part replaces 09103-06145.

09103-06188

$2.90

16

CAP This part replaces 09250-09001.

09250-09008

$1.54

17

CLAMP, BRAKE HOSE | MODEL N/P/R/S

59246-28C01

Unavailable

18

REFER TO FIG.37A(I-14) FOR

SPECIAL NOTE

Unavailable
