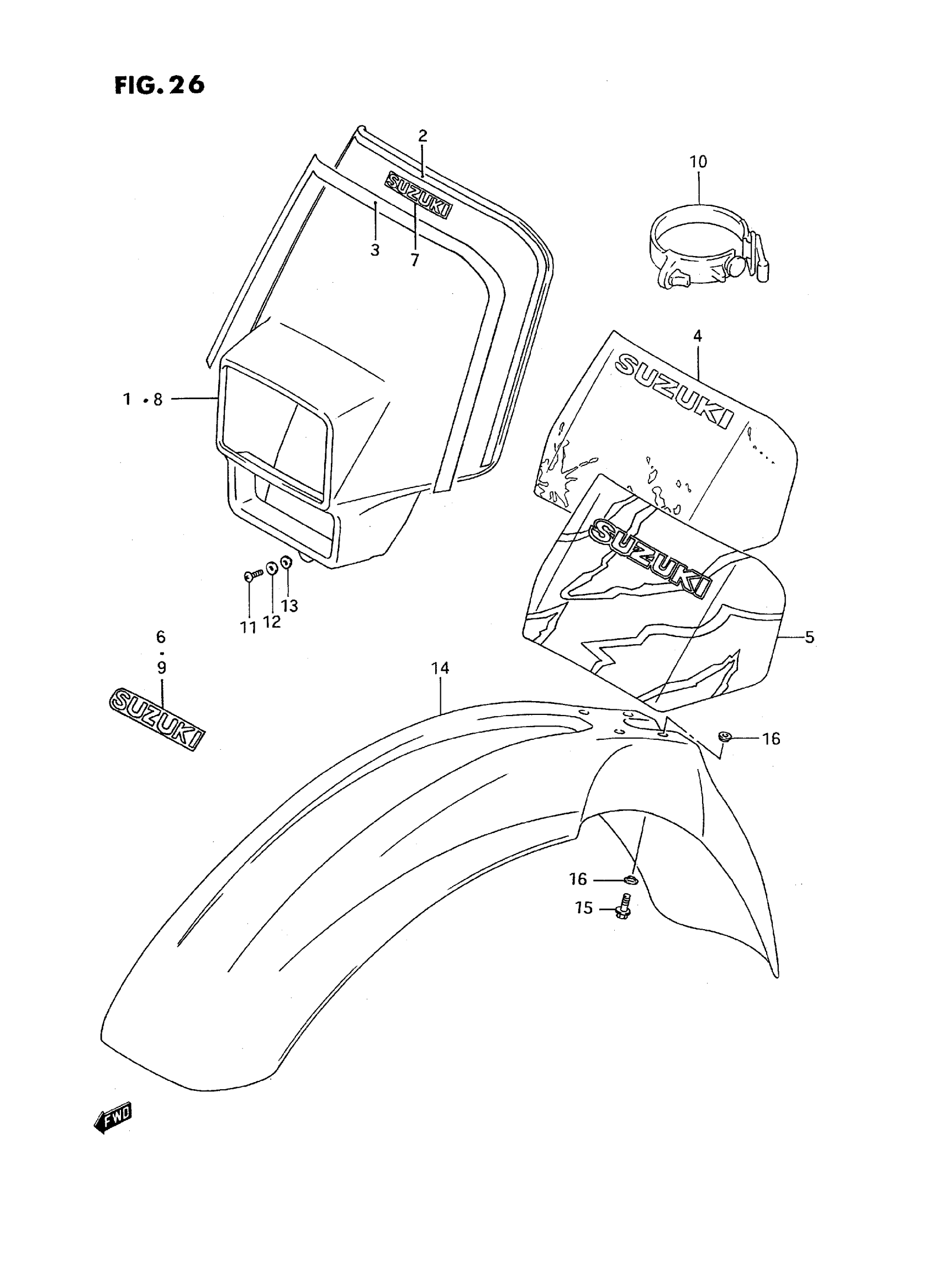

Suzuki RMX250T (1996) FRONT FENDER Diagram

#

Description
Price

1

COVER, HEADLAMP (YELLOW) | MODEL K/L/M

51810-03D00-25Y

Unavailable

1

COVER, HEADLAMP (YELLOW) | MODEL N/P This part replaces 51811-03D00-25Y.

51810-03D00-25Y

Unavailable

2

TAPE | MODEL K

68725-05D00-08K

Unavailable

3

TAPE | MODEL L

68725-05D10-34S

Unavailable

4

TAPE | MODEL M

68725-05D20-1AD

Unavailable

5

TAPE | MODEL N

68725-05D30-M25

Unavailable

6

EMBLEM, SUZUKI | MODEL P

68171-44B00-A56

Unavailable

7

EMBLEM | MODEL K/L

68721-05D00-9SG

Unavailable

8

COVER COMP,HEAD | MODEL R/S->51811-03D00-30H This part replaces 51800-29E00-30H.

51810-03D00-30H

Unavailable

8

COVER COMP,HEAD | WITHOUT EMBLEM; Includes Item(s) 9 This part replaces 51811-03D00-30H.

51810-03D00-30H

Unavailable

9

EMBLEM, SUZUKI | MODEL R/S/T

68171-44B00-C5Z

$11.53

10

BAND | MODEL K/L

51850-05D00

Unavailable

10

BAND | MODEL M/N/P/R/S

51850-05D10

Unavailable

10

BAND | MODEL T

51850-14D00

Unavailable

11

SCREW, LOWER | MODEL K/L

02142-05167

$1.49

11

SCREW, LOWER | MODEL M/N/P This part replaces 02142-15308.

02142-05307

$2.72

11

SCREW, LOWER | MODEL R/S

02142-05307

$2.72

11

SCREW, LOWER | MODEL T

02142-15127

$2.72

12

WASHER (5.5X16X1.2) | MODEL K/L This part replaces 09160-05017.

09160-05043

$2.30

12

WASHER | MODEL M/N/P/R/S/T

09169-05012

$2.38

13

SPACER | MODEL K/L

09161-06019

Unavailable

13

SPACER | MODEL M/N/P/R/S

09180-06198

$4.32

14

FENDER, FRONT | ->53111-27C01-25Y This part replaces 53111-27C00-25Y.

53111-27C02-25Y

Unavailable

14

FENDER, FRONT This part replaces 53111-27C01-25Y.

53111-27C02-25Y

Unavailable

14

FENDER,FRONT(YE | MODEL T This part replaces 53111-27C21-25Y.

53111-27C22-25Y

Unavailable

15

BOLT | MODEL K/L/M/N/P

01547-06167

$1.65

15

BOLT | MODEL R/S/T This part replaces 01547-06163.

01547-0616B

$2.45

16

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49
