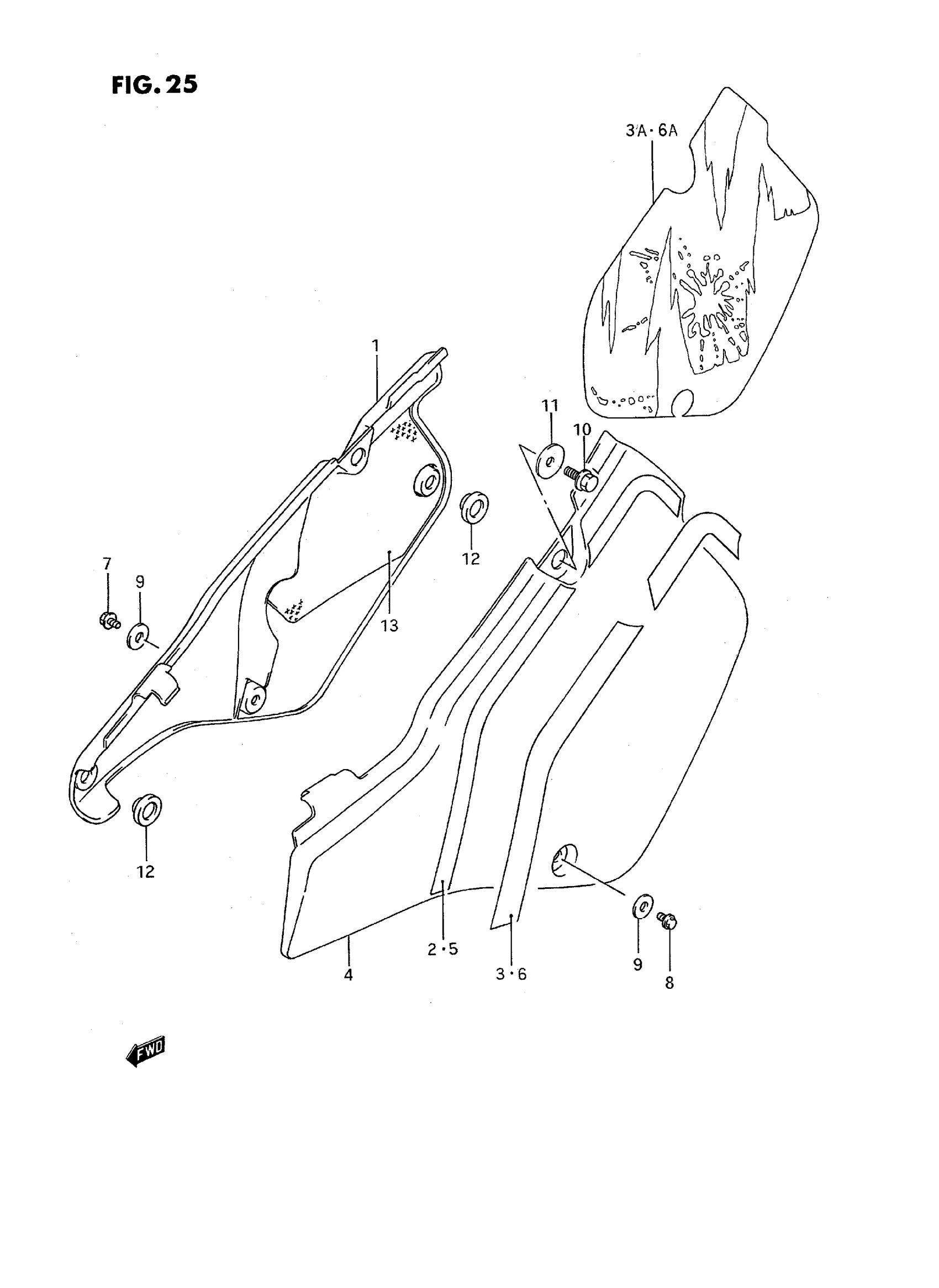

Suzuki RMX250T (1996) FRAME COVER (MODEL K/L/M) Diagram

#

Description
Price

1

COVER, FRAME RH (YELLOW)

47111-05D00-25Y

Unavailable

2

TAPE, RH (BLUE) | MODEL K

68130-05D00-08K

Unavailable

3

TAPE, RH (BLUE) | MODEL L

68130-05D10-34S

Unavailable

3A

TAPE, RH | MODEL M

68135-05D00-1AD

Unavailable

4

COVER, FRAME LH (YELLOW)

47211-27C00-25Y

Unavailable

5

TAPE, LH (BLUE) | MODEL K

68140-05D00-08K

Unavailable

6

TAPE, LH (BLUE) | MODEL L

68140-05D10-34S

Unavailable

6A

TAPE, LH | MODEL M

68145-05D00-1AD

Unavailable

7

BOLT, FRONT RH

01547-06127

$1.65

8

BOLT, FRONT LH

01547-06167

$1.65

9

WASHER

09168-06027

$2.80

10

BOLT, REAR

01550-08207

$2.69

11

WASHER, REAR

09169-08045

$2.23

12

CUSHION, MUFFLER REAR

09321-10018

$5.45

13

HEAT SHIELD, RH

47166-05D00

Unavailable

14

REFER TO FIG.25A(F-11) FOR

SPECIAL NOTE

Unavailable
