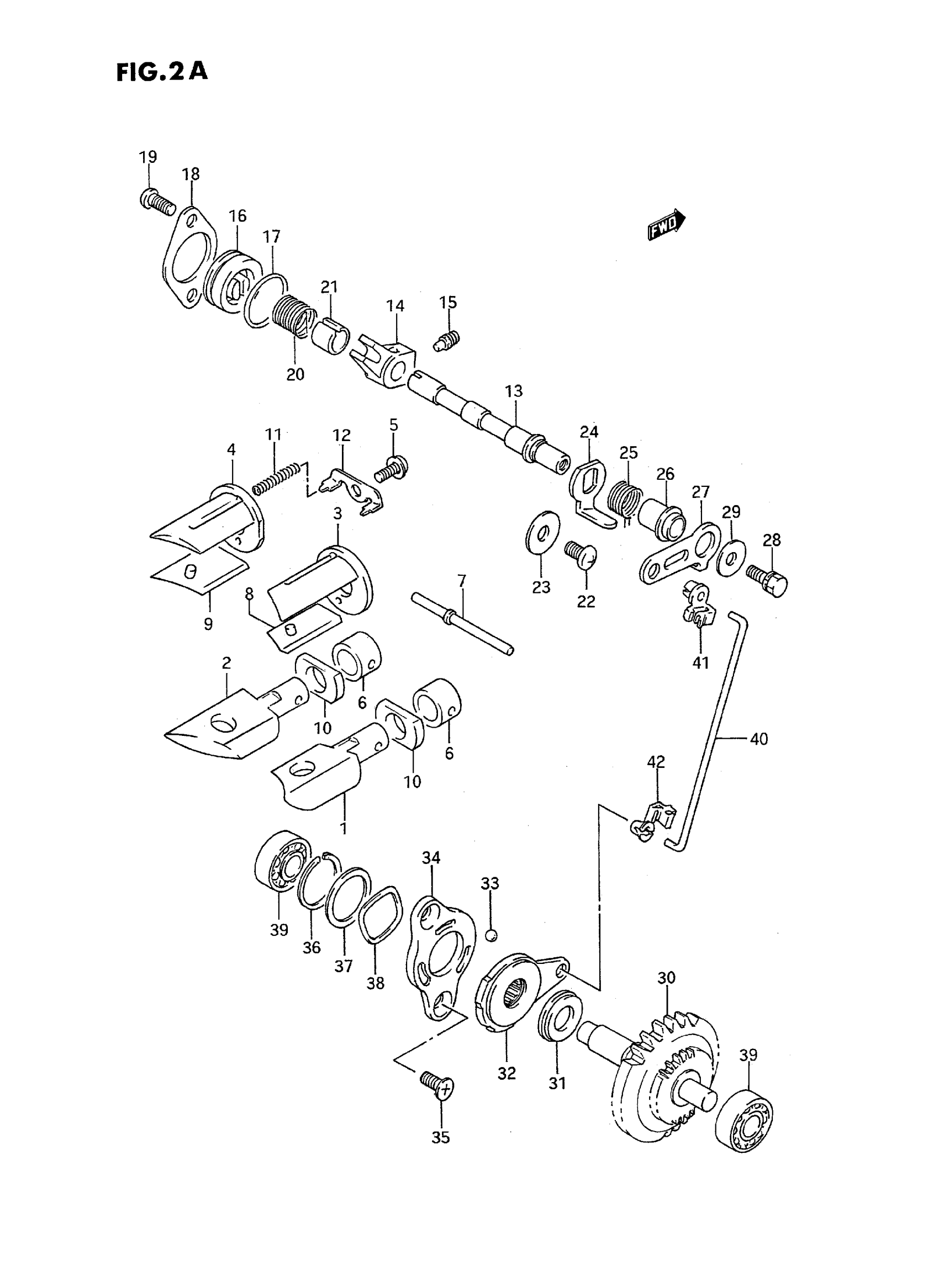

Suzuki RMX250T (1996) EXHAUST VALVE (MODEL L/M/N) Diagram

#

Description
Price

1

VALVE, EXHAUST RH

11254-28C10

Unavailable

2

VALVE, EXHAUST LH

11255-28C10

Unavailable

3

GUIDE, EXHAUST VALVE RH

11261-28C10

Unavailable

4

GUIDE, EXHAUST VALVE LH

11262-28C10

Unavailable

5

SCREW This part replaces 02112-15128.

02142-05127

$1.97

6

SPACER, EXHAUST VALVE This part replaces 11263-26C00.

11263-29E00

Unavailable

7

PIN This part replaces 11253-01B31.

11253-01B32

$27.27

8

VALVE, EXHAUST NO.2 RH

11280-28C10

Unavailable

9

VALVE, EXHAUST NO.2 LH

11290-28C10

Unavailable

10

SPACER, EXHAUST VALVE NO.2

11273-05D00

Unavailable

11

SPRING

09440-03010

$2.80

12

STOPPER, SPRING This part replaces 11252-28C10.

11252-28C11

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 11259-28C00.

11259-28C01

Unavailable

14

ARM, EXHAUST VALVE SHAFT This part replaces 11264-00B23.

11264-00B24

Unavailable

15

SCREW

09134-06013

$4.20

16

CAP, EXHAUST VALVE This part replaces 11258-27C00.

11258-27C01

Unavailable

17

O RING(D:1.9,ID This part replaces 09280-23002.

09280-23003

$1.68

18

RETAINER, EXHAUST VALVE This part replaces 11265-00B21.

11265-00B22

Unavailable

19

SCREW This part replaces 02112-05128.

02112-05127

$1.97

20

SPRING

09444-16005

Unavailable

21

SPACER

11269-00B20

Unavailable

22

SCREW

02112-06087

$1.45

23

WASHER

08211-06202

Unavailable

24

LEVER, EXHAUST VALVE NO.2 This part replaces 11267-00B20.

11267-00B21

$4.20

25

SPRING

09444-15010

Unavailable

26

SPACER This part replaces 11268-01B00.

11268-01B01

$8.14

27

LEVER, EXHAUST VALVE NO.1

11266-28C10

Unavailable

28

BOLT This part replaces 01134-05126.

01570-0512B

$2.75

29

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.33

30

GOVERNOR ASSY, EXHAUST VALVE

12670-28C10

Unavailable

31

BEARING

09263-10002

$9.20

32

ACTUATOR, EXHAUST VALVE

12680-01820

Unavailable

33

BALL

06111-06003

$1.24

34

STATOR, ACTUATOR

12682-00B20

Unavailable

35

SCREW (5X10)

09120-05003

$1.76

36

CIRCLIP

09380-19003

$2.35

37

SHIM (19.1X25X0.3)

09181-19004

$4.12

38

LOCK WASHER

09164-19001

$4.29

39

BEARING

09262-08005

$11.44

40

ROD, EXHAUST VALVE

12685-28C10

Unavailable

41

BUSH, EXHAUST VALVE ROD NO.1

12686-01B00

$1.94

42

BUSH, EXHAUST VALVE ROD NO.2

12687-01B00

$1.75

43

REFER TO FIG.2B(B-8) FOR

SPECIAL NOTE

Unavailable
