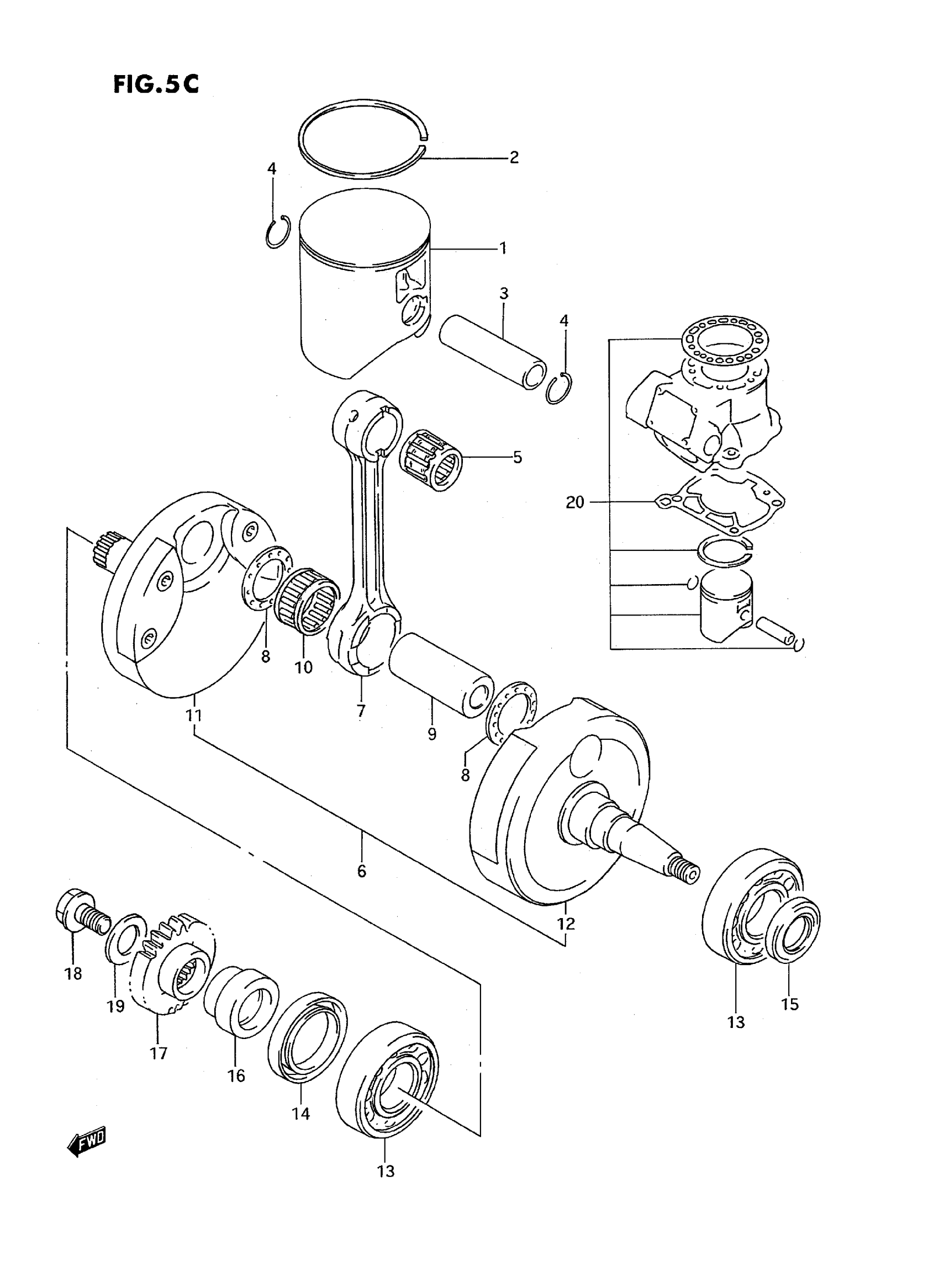

Suzuki RMX250T (1996) CRANKSHAFT (MODEL S/T) Diagram

#

Description
Price

1

PISTON | MODEL S

12110-05D03-0F0

Unavailable

1

PISTON | MODEL T

12110-29E20-0F0

Unavailable

2

RING, PISTON | MODEL S

12141-41620

$25.78

2

RING, PISTON | MODEL T

12141-28E00

$26.76

3

PIN, PISTON This part replaces 12151-28C00.

12151-37F00

$14.15

4

CIRCLIP

09381-18002

$1.67

5

BEARING, PISTON PIN

09263-18016

$19.93

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-29E10

Unavailable

7

ROD, CONNECTING

12161-28C30

Unavailable

8

WASHER

09160-24027

$23.13

9

PIN, CRANK

12211-05D00

$43.33

10

BEARING

09263-24026

$69.90

11

CRANKSHAFT, RH

12220-28E10

Unavailable

12

CRANKSHAFT, LH

12260-29E10

Unavailable

13

BEARING, CRANKSHAFT This part replaces 09262-28029.

09262-28036

Unavailable

14

OIL SEAL, RH (38X52X8)

09283-38018

Unavailable

15

OIL SEAL, LH (25X37X6)

09283-25083

$8.37

16

SPACER

12359-28E10

Unavailable

17

GEAR, PRIMARY DRIVE (NT:23) This part replaces 21111-14320.

21111-14321

Unavailable

18

BOLT, PRIMARY DRIVE GEAR This part replaces 21141-27C11.

09103-10339

$9.32

19

WASHER

09164-11004

$5.47

20

TOP END KIT, ENGINE | OPT MODEL S

12100-29831

Unavailable

20

TOP END KIT, ENGINE | OPT MODEL T

12100-29850

Unavailable
