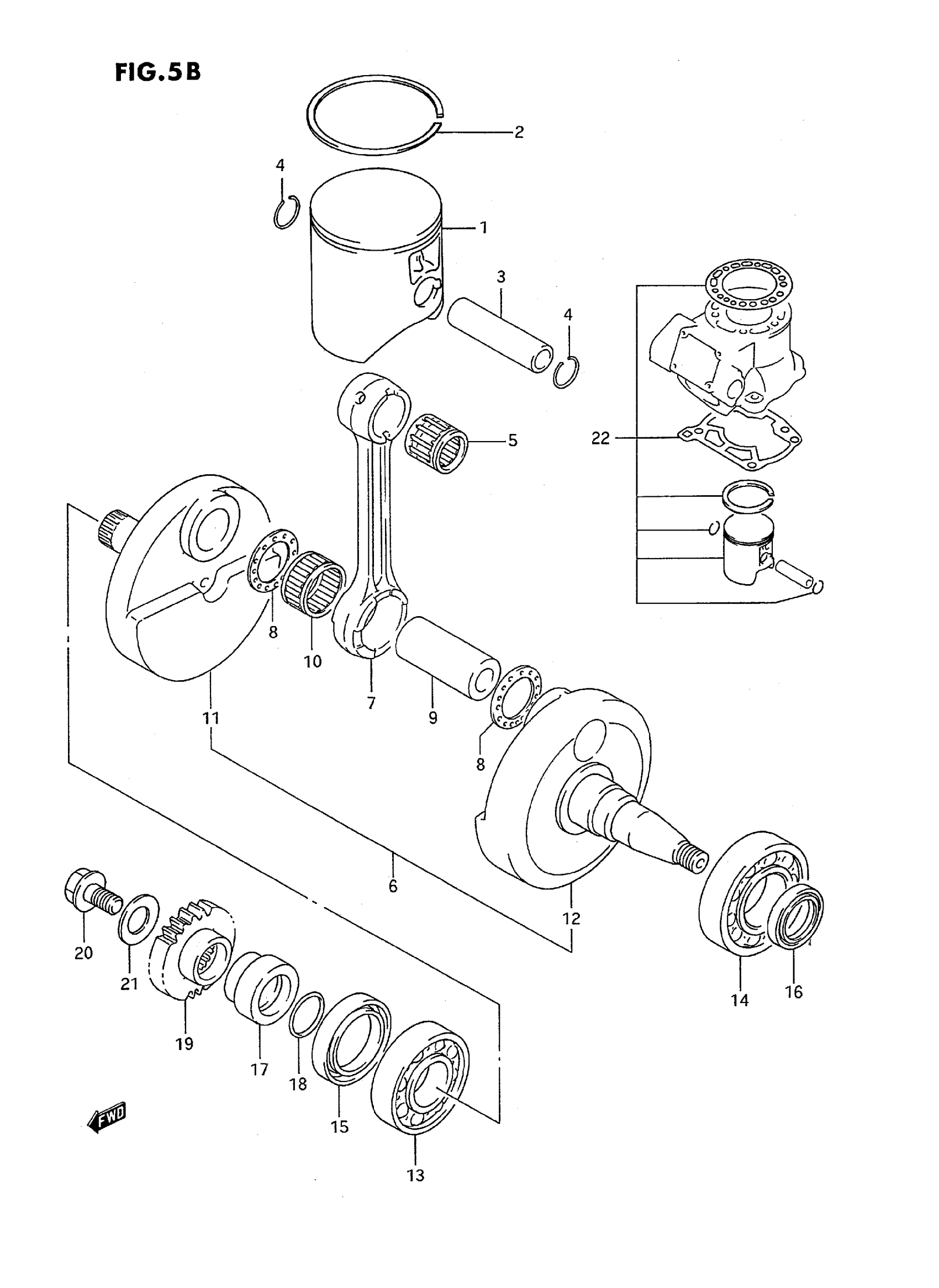

Suzuki RMX250T (1996) CRANKSHAFT (MODEL P/R) Diagram

#

Description
Price

1

PISTON

12110-05D03-0F0

Unavailable

2

RING, PISTON

12141-41620

$25.78

3

PIN, PISTON This part replaces 12151-28C00.

12151-37F00

$14.15

4

CIRCLIP

09381-18002

$1.67

5

BEARING, PISTON PIN

09263-18016

$19.93

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-29E00

Unavailable

7

ROD, CONNECTING

12161-28C30

Unavailable

8

WASHER

09160-24027

$23.13

9

PIN, CRANK This part replaces 12211-28C10.

12211-05D00

$43.33

10

BEARING

09263-24026

$69.90

11

CRANKSHAFT, RH

12221-29E00

Unavailable

12

CRANKSHAFT, LH

12261-29E00

Unavailable

13

BEARING, RH (25X62X17)

09262-25108

Unavailable

14

BEARING This part replaces 09262-28024.

09262-28027

$71.59

15

OIL SEAL, RH (36X52X8)

09283-36007

Unavailable

16

OIL SEAL, LH (25X37X6)

09283-25084

$21.75

17

SPACER

12359-00B20

Unavailable

18

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

19

GEAR, PRIMARY DRIVE (NT:23) This part replaces 21111-14320.

21111-14321

Unavailable

20

BOLT, PRIMARY DRIVE GEAR This part replaces 21141-27C11.

09103-10339

$9.32

21

WASHER

09164-11004

$5.47

22

TOP END KIT, ENGINE | OPT

12100-29831

Unavailable

23

REFER TO FIG.5C (C- 5) FOR

SPECIAL NOTE

Unavailable
