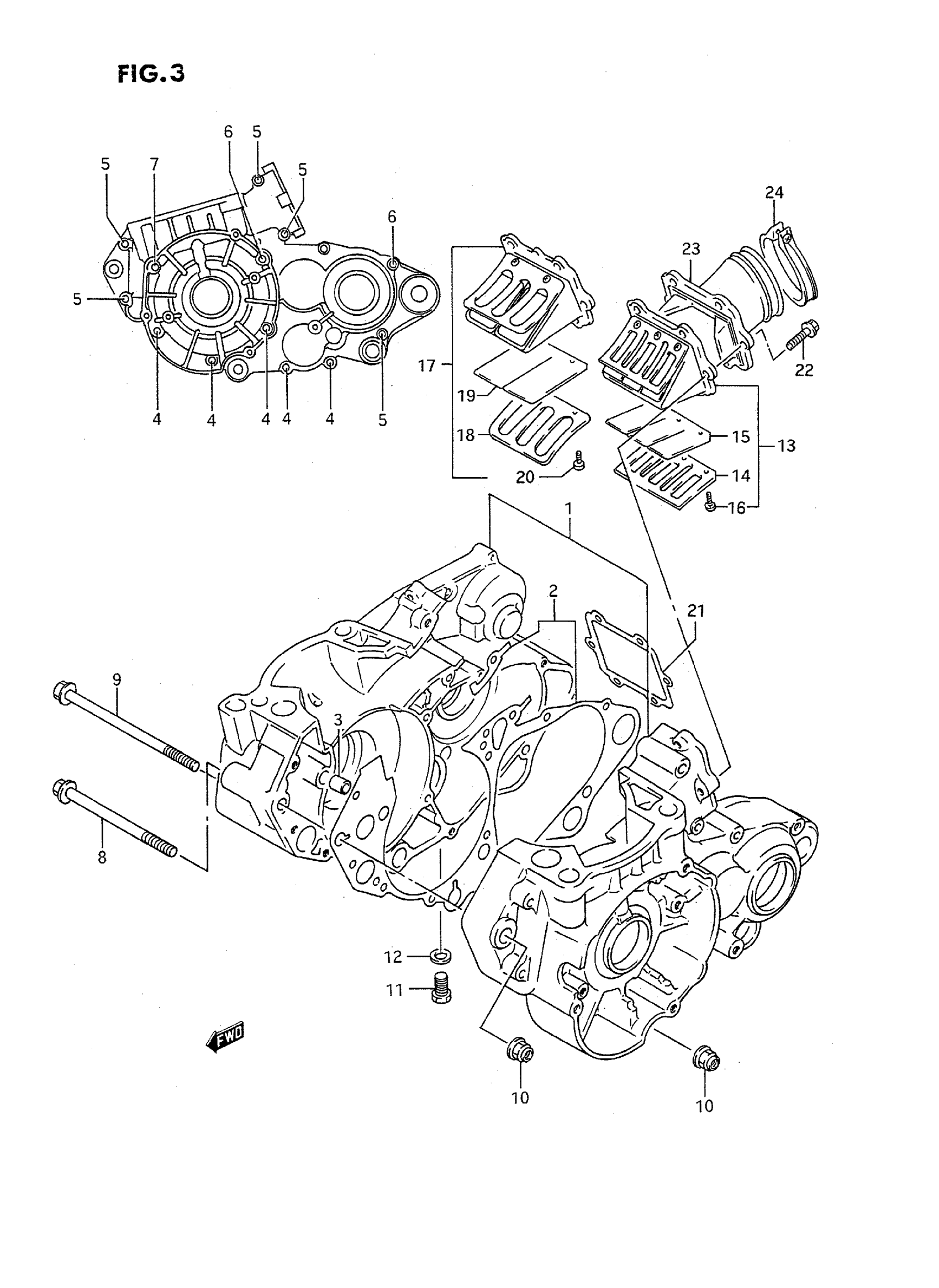

Suzuki RMX250T (1996) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 11300-05891.

11300-29893

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 11300-05893.

11300-29893

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P/R This part replaces 11300-05895.

11300-29893

Unavailable

1

CRANKCASE SET | MODEL S This part replaces 11301-29820.

11301-44861

Unavailable

1

CRANKCASE SET | MODEL T; Includes Item(s) 2 - 7 This part replaces 11301-29821.

11301-44861

Unavailable

2

GASKET, CRANKCASE

11481-28C00

Unavailable

3

PIN

04211-09129

$1.65

4

BOLT | MODEL K/L/M/N/P

01547-06407

$2.32

4

BOLT | MODEL R/S/T This part replaces 01547-06403.

01547-0640B

$2.75

5

BOLT | MODEL K/L/M/N/P

01547-06507

$2.41

5

BOLT | MODEL R/S/T This part replaces 01547-06503.

01547-0650B

$2.75

6

BOLT | MODEL K/L/M/N/P

01547-06557

$2.32

6

BOLT | MODEL R/S/T This part replaces 01547-06553.

01547-0655B

$2.75

7

BOLT | MODEL K/L/M/N/P

01547-06607

$3.18

7

BOLT | MODEL R/S/T This part replaces 01547-06603.

01547-0660B

$3.18

8

BOLT (8X105) | MODEL K

09103-08097

$3.44

8

BOLT (8X102) | MODEL L This part replaces 09103-08273.

09103-08296

$7.11

8

BOLT (8X102) | MODEL M/N/P/R/S/T

09103-08296

$7.11

9

BOLT (8X137) | MODEL K/L This part replaces 09103-08248.

09103-08297

$8.35

9

BOLT (8X137) | MODEL M/N/P/R/S/T

09103-08297

$8.35

10

NUT

09159-08067

$5.57

11

BOLT M8X16 | MODEL K/L/M/N/P This part replaces 01517-08167.

01550-08167

$2.85

11

BOLT (8X16) | MODEL R/S/T This part replaces 01550-08163.

01550-0816A

$2.32

12

GASKET (8.2X14X1)

09168-08016

$1.65

13

VALVE ASSY, REED | MODEL K/L/M/N; Includes Item(s) 14 - 16

13150-05D00

Unavailable

14

STOPPER, REED VALVE | MODEL K/L/M/N

13152-01C10

$8.53

15

VALVE, REED | MODEL K/L/M/N

13153-05D00

$15.73

16

SCREW | MODEL K/L/M/N This part replaces 02112-33083.

02112-3308A

$2.23

17

VALVE ASSY,REED | MODEL P/R/S/T; Includes Item(s) 18 - 20 This part replaces 13150-28E01.

13150-28E02

Unavailable

18

STOPPER,REED VA | MODEL P/R/S/T This part replaces 13152-28E00.

13152-28E01

Unavailable

19

VALVE,REED | MODEL P/R/S/T This part replaces 13153-28E00.

13153-28E01

$11.53

20

SCREW | MODEL P/R/S/T

02112-13063

Unavailable

21

GASKET, REED VALVE

13156-01C10

$3.38

22

BOLT | MODEL K/L/M/N/P

01547-06207

$2.01

22

..BOLT | MODEL R/S/T This part replaces 01547-06203.

01547-0620B

$2.45

23

PIPE, INTAKE | MODEL K/L/M/N

13110-28C01

Unavailable

23

PIPE,INTAKE | MODEL P/R/S/T This part replaces 13110-28E00.

13110-28E01

Unavailable

24

CLAMP This part replaces 09402-56208.

09402-56901

$5.36
