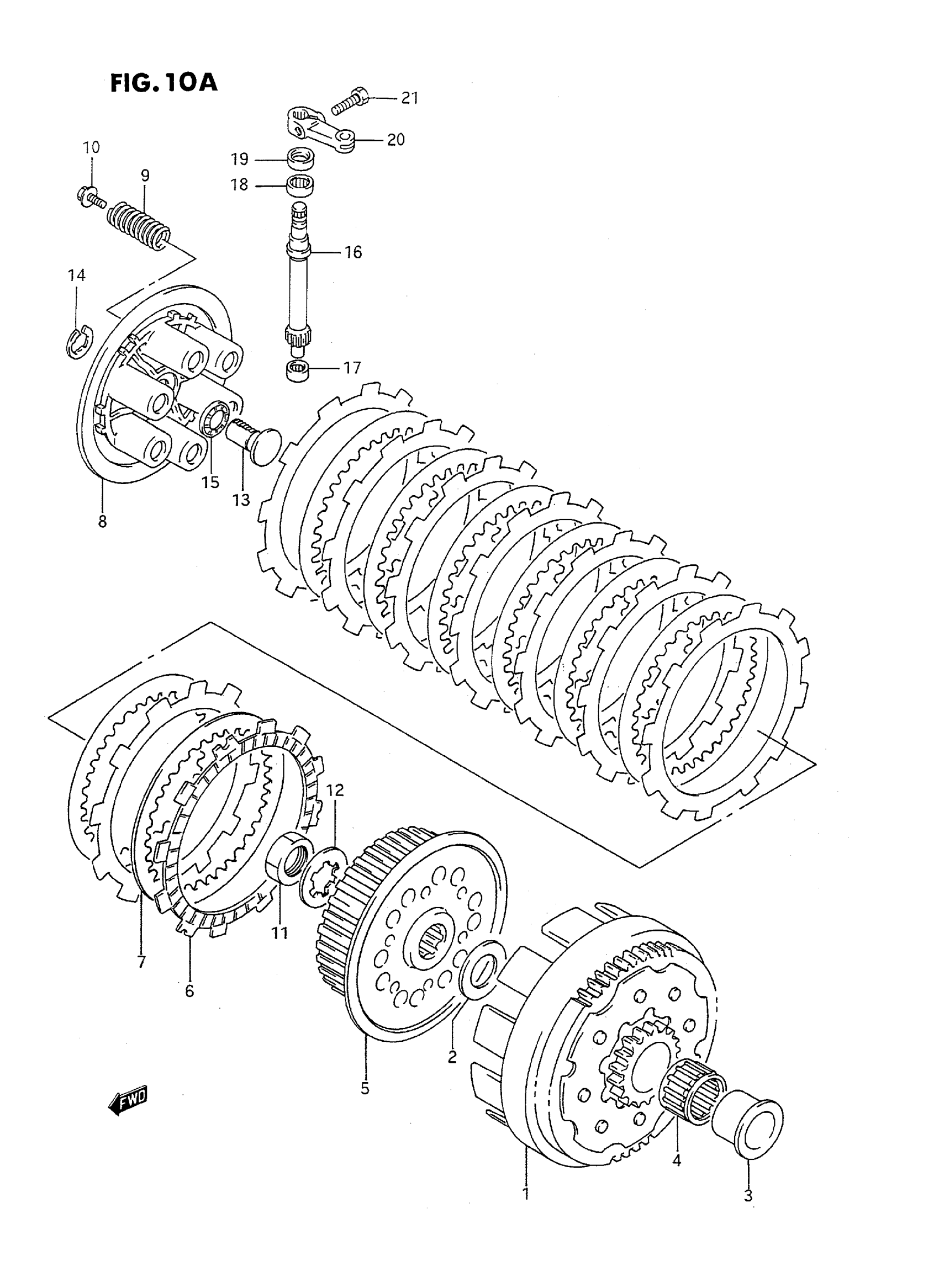

Suzuki RMX250T (1996) CLUTCH (MODEL N/P) Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN This part replaces 21200-28E10.

21200-28E12

Unavailable

2

WASHER (22X38X2)

09160-22067

$10.08

3

SPACER

21251-28C01

Unavailable

4

BEARING (29X34X21.8) | MODEL N This part replaces 09263-29007.

09263-29006

Unavailable

4

BEARING (29X34X21.8) | MODEL P

09263-29006

Unavailable

5

HUB, SLEEVE | MODEL N This part replaces 21410-28C32.

21411-28E10

Unavailable

5

HUB, SLEEVE | MODEL P This part replaces 21410-28C33.

21411-28E10

Unavailable

6

PLATE, DRIVE NO.1 | MODEL N This part replaces 21441-07A01.

21441-12D01

$20.64

6

PLATE, DRIVE NO.1 | MODEL P This part replaces 21441-07A02.

21441-12D01

$20.64

7

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-28C30.

21451-28C31

$11.81

8

NO DESCRIPTION AVAILABLE This part replaces 21462-28C32.

21462-28C33

Unavailable

9

SPRING

09440-18025

$7.35

10

BOLT (5X18)

09116-05019

$2.32

11

NUT | MODEL N

09140-20016

Unavailable

11

NUT | MODEL P

09140-18013

$12.00

12

LOCK WASHER

09167-22021

$1.78

13

RACK This part replaces 23165-28300.

23165-46000

$22.21

14

.E-RING This part replaces 08332-11086.

08332-1108A

$1.78

15

THRUST BEARING

09263-10002

$10.19

16

PINION

23261-00B20

Unavailable

17

BEARING, NO.1

09263-09001

$14.53

18

BEARING, NO.2

09263-12024

$12.67

19

OIL SEAL (10X17X5)

09285-10004

$3.37

20

ARM, CLUTCH RELEASE | MODEL N This part replaces 23271-20900.

23271-20902

$29.60

20

ARM, CLUTCH RELEASE | MODEL P This part replaces 23271-20901.

23271-20902

$29.60

21

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

22

REFER TO FIG.10B(D-4) FOR

SPECIAL NOTE

Unavailable
