1995 Suzuki RMX250 Trip Meter Diagram

← All diagrams

Find the part on the Trip Meter diagram for your 1995 Suzuki RMX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

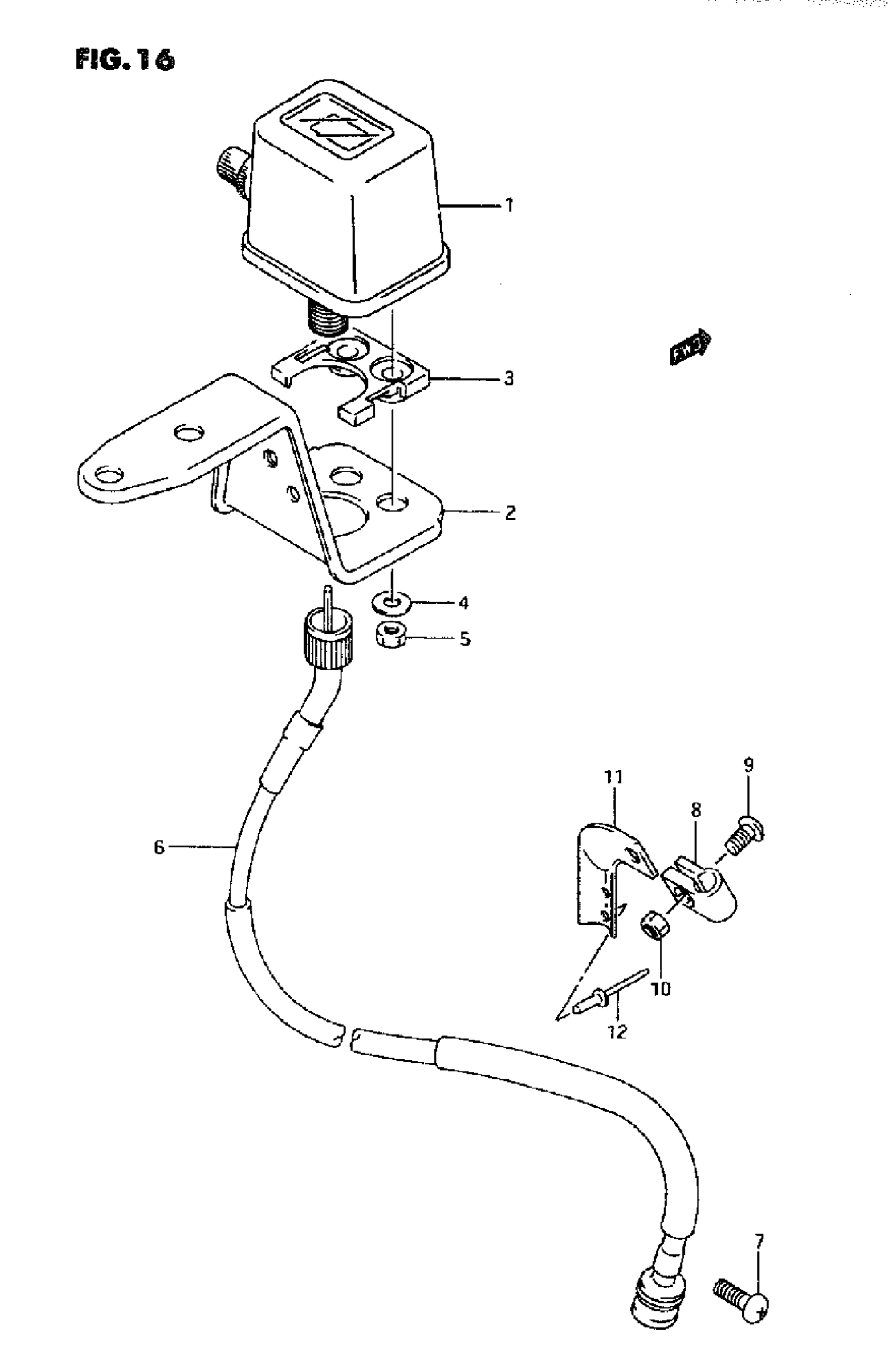

1995 Suzuki RMX250 Trip Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRIP METER (MILE/KILO) This part replaces 34721-40610.

34721-05D20

1
Out of stock

2

BRACKET

34725-05D00

1
Out of stock

3

CUSHION

34726-41410

1
Out of stock

4

WASHER This part replaces 34727-41410.

09160-04022

2
Out of stock

5

NUT This part replaces 08310-11047.

08310-00047

2
Out of stock

6

CABLE ASSY,TRI This part replaces 34910-05D00.

34910-29E11

1
Out of stock

7

SCREW

02112-05164

2
Out of stock

8

CLAW. TRIP METER CABLE

58621-13710

1
Out of stock

9

SCREW This part replaces 02142-15125.

02142-1512B

1
Out of stock

10

NUT This part replaces 08310-11057.

08310-00057

1
Out of stock

11

BRACKET, CLAMP

34926-05D00

1
Out of stock

12

RIVET

09229-03005

2
Out of stock
