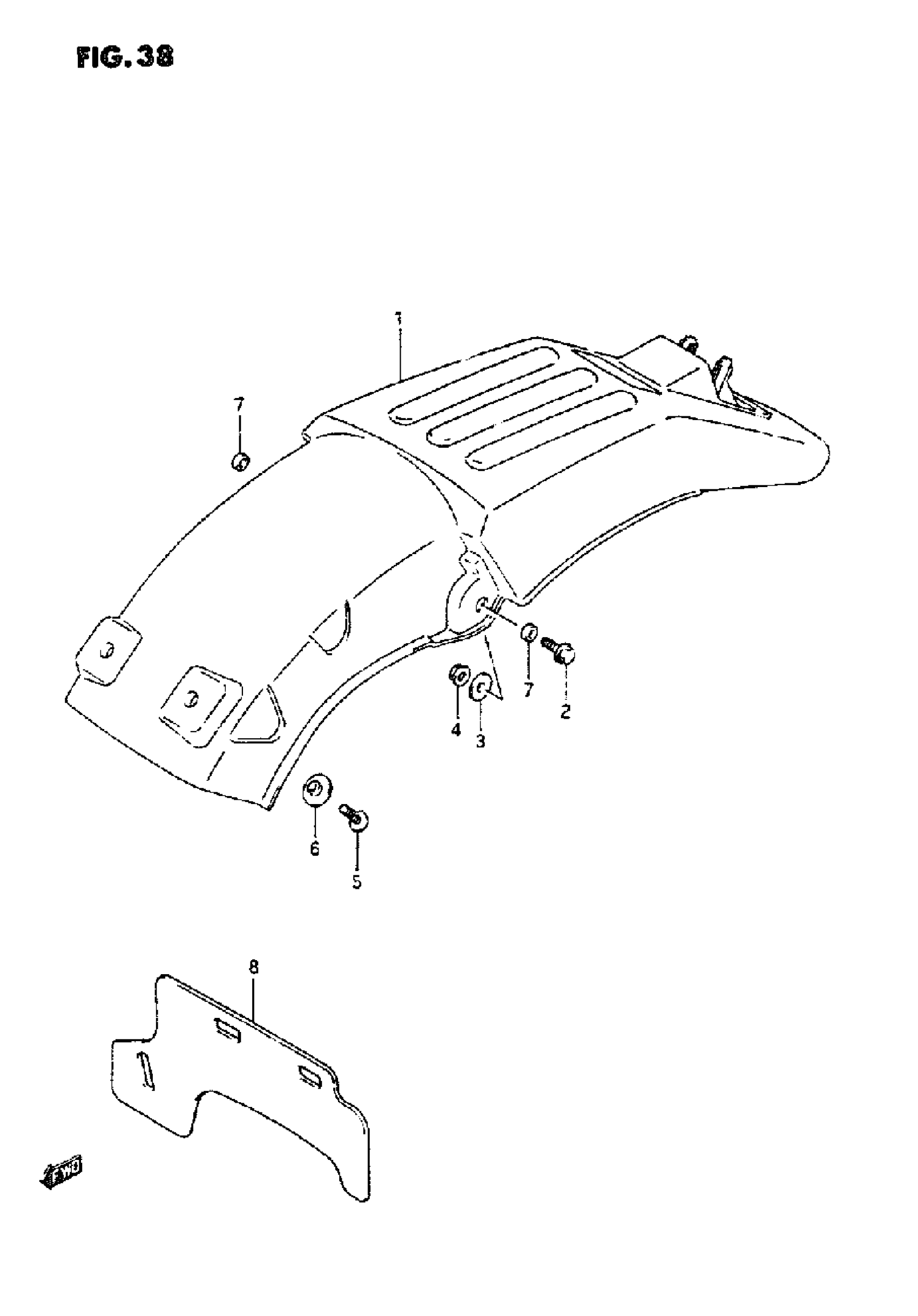

Suzuki RMX250 (1995) REAR FENDER Diagram

#

Description
Price

1

BODY. REAR FENDER (YELLOW)

63113-05D00-25Y

Unavailable

2

BOLT, REAR LH | MODEL K!L/M/NIP This part replaces 01517-08207.

01550-08207

$2.80

2

BOLT | MODEL R/S This part replaces 01550-08203.

01550-0820A

$2.32

3

WASHER

09160-08054

$1.46

4

NUT (CHROME) | MODEL K/L/M/N/P This part replaces 08316-16088.

08316-10087

$2.31

4

NUT | MODEL R/S This part replaces 08316-10083.

08316-1008B

$2.74

5

SCREW, FRONT | MODEL K

09125-06088

$2.50

5

SCREW, FRONT | MODEL L/M/N/P/R/S This part replaces 09125-06090.

09125-06088

$2.50

6

WASHER

09169-06038

Unavailable

7

SPACER, REAR This part replaces 09180-08110.

09180-08184

$3.00

8

MD GUARD

63331-27C00

Unavailable
