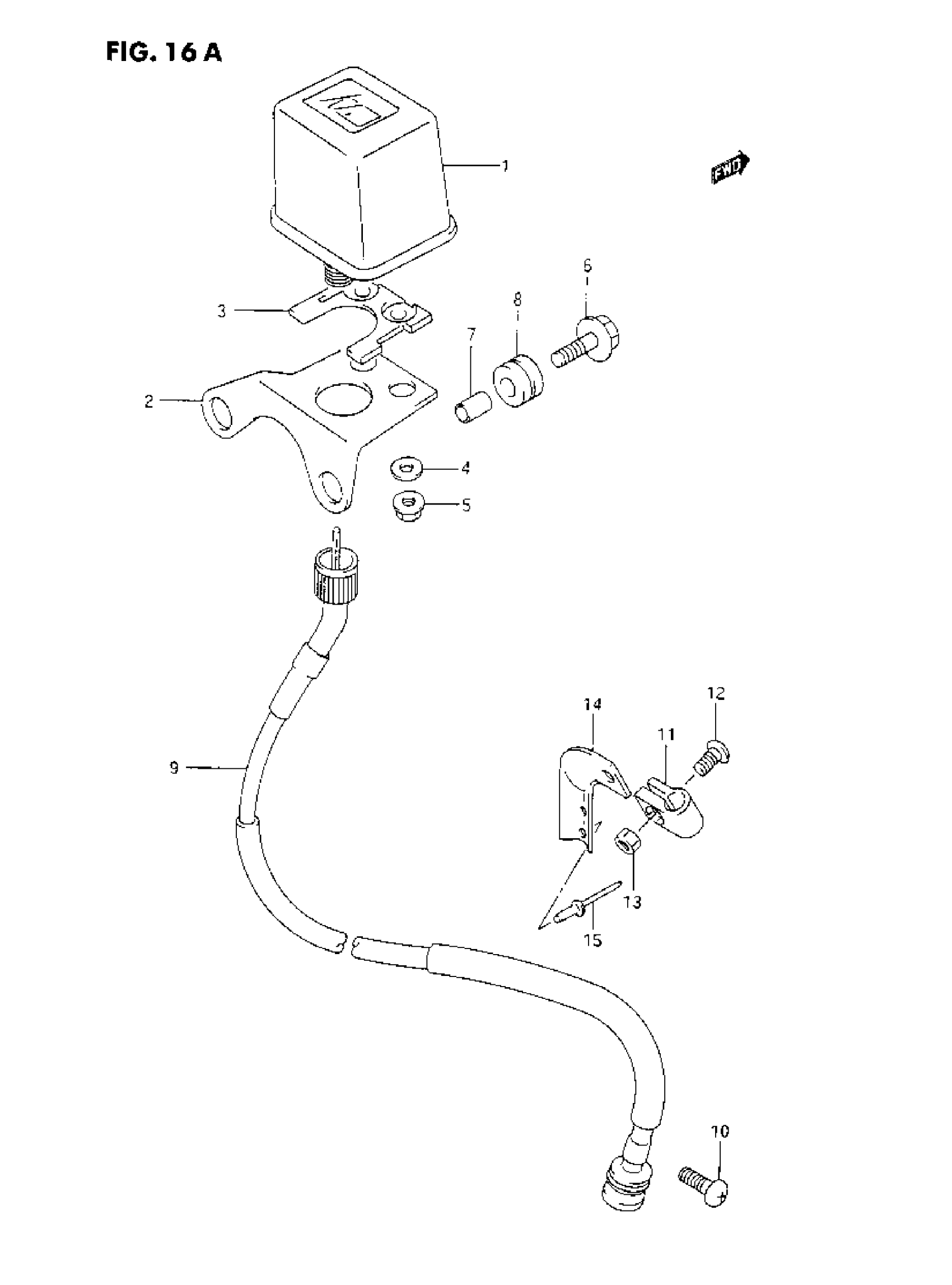

Suzuki RMX250 (1993) TRIP METER (M/N/P/R) Diagram

#

Description
Price

1

TRIP METER (MILE)

34721-05D20

$203.42

2

BRACKET

34725-14D00

$48.38

3

CUSHION This part replaces 34726-05D20.

34726-05D21

$4.07

4

WASHER This part replaces 34727-41410.

09160-04022

$2.15

5

NUT This part replaces 08310-11047.

08310-00047

$2.23

6

BOLT (6X25)

09118-06086

$3.15

7

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

8

CUSHION This part replaces 09320-08048.

09320-08501

$3.23

9

CABLE ASSY,TRI This part replaces 34910-05D00.

34910-29E11

Unavailable

10

SCREW | MODEL M/N/P

02112-05164

$2.63

10

.SCREW | MODEL R This part replaces 02112-05163.

02112-0516A

$1.49

11

CLAMP, TRIP METER CABLE

58621-13710

Unavailable

12

SCREW | MODEL M/N/P This part replaces 02142-15125.

02142-1512B

$2.34

12

.SCREW | MODEL R This part replaces 02112-15123.

02142-0512A

$1.49

13

NUT This part replaces 08310-11057.

08310-00057

$1.84

14

BRACKET, CLAMP

34926-05D00

Unavailable

15

RIVET

09229-03005

Unavailable
