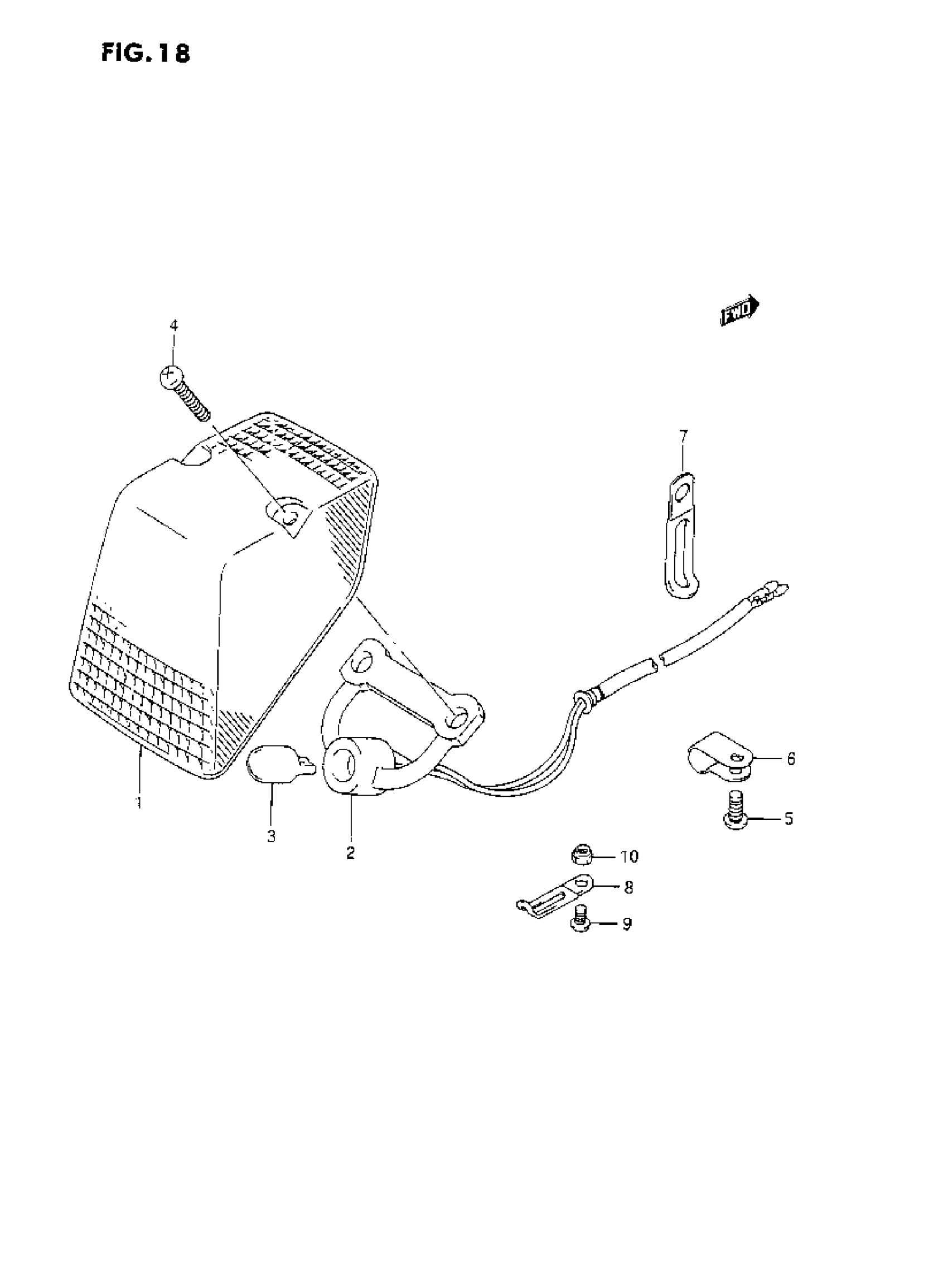

Suzuki RMX250 (1993) TAIL LAMP Diagram

#

Description
Price

1

LENS, TAIL LAMP

35712-03D00

$22.22

2

SOCKET

35718-05D00

Unavailable

3

.BULB (12V5W) | MODEL K This part replaces 09471-12076.

09471-12216

$5.36

3

.BULB (12V5W) | MODEL L/M/N/P/R This part replaces 09471-12081.

09471-12216

$5.36

4

SCREW This part replaces 03511-04206.

03511-0420B

$2.46

5

SCREW This part replaces 03511-04126.

03511-0412A

$1.49

6

CLAMP

09403-06408

$3.08

7

CLAMP This part replaces 09404-08405.

09404-08420

$3.16

8

CLAMP (L:60) This part replaces 09404-06422.

09404-06429

$1.83

9

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06106.

02142-0610A

$1.49

10

.NUT This part replaces 08319-21068.

08319-2106A

$1.91
