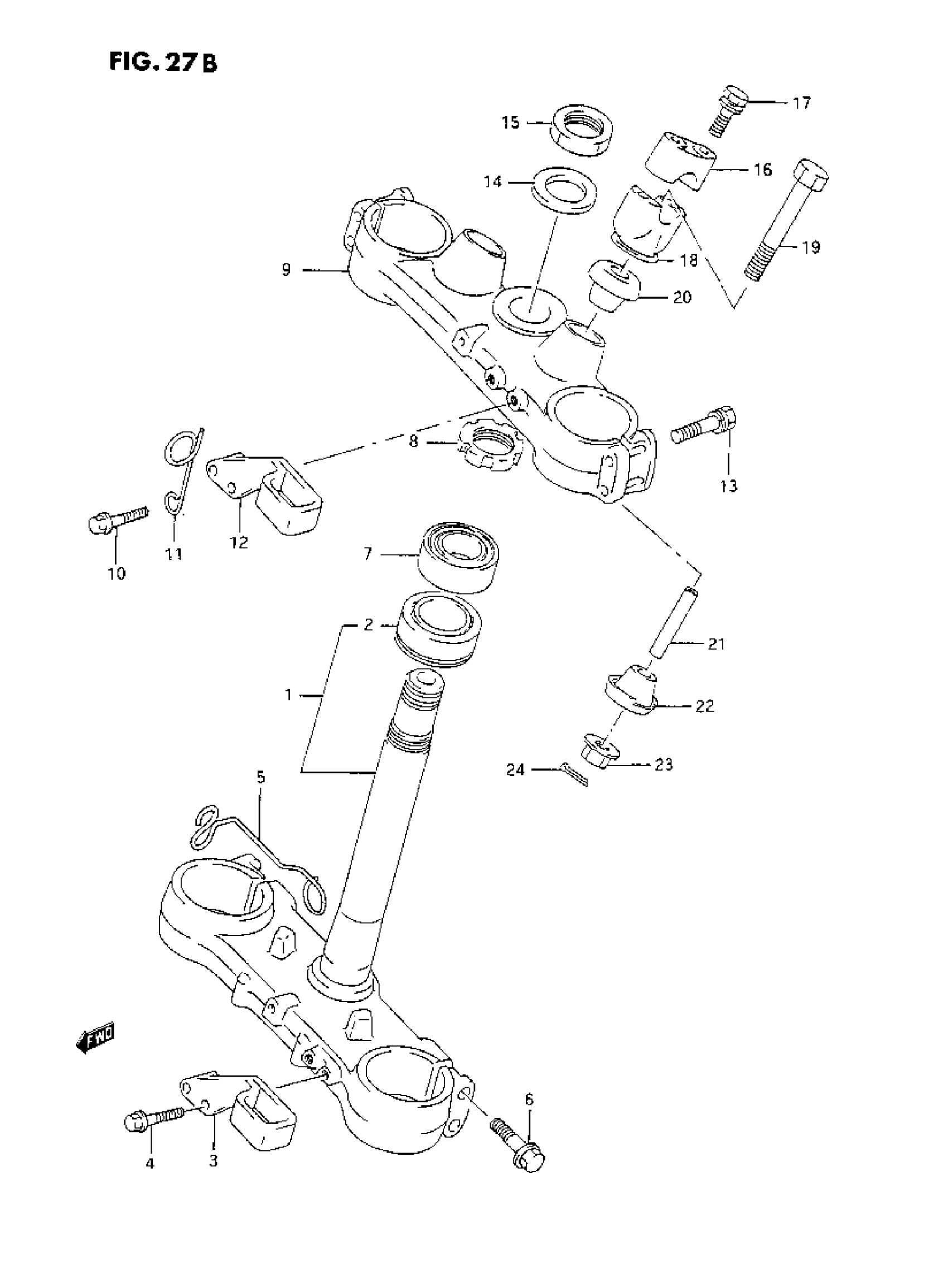

Suzuki RMX250 (1993) STEERING STEM (P/R) Diagram

#

Description
Price

1

STEM, STEERING

51410-29E50

Unavailable

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

3

GUIDE, HOSE LOWER

58621-05D60

Unavailable

4

BOLT This part replaces 58629-27C40.

01547-06257

$2.03

5

GUIDE, METER CABLE

51452-05D60

Unavailable

6

BOLT This part replaces 51328-27C40.

51166-27E30

$4.37

7

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

8

NUT STEERING

51631-28E00

$28.88

9

HEAD, STEERING STEM

51310-05D60

Unavailable

10

BOLT This part replaces 58629-27C40.

01547-06257

$2.03

11

GUIDE,CLUTCH CA This part replaces 58294-27C00.

58294-27C01

$6.18

12

GUIDE, HOSE UPPER

58621-27C40

$25.70

13

BOLT This part replaces 51328-27C40.

51166-27E30

$4.37

14

WASHER,STEM HEAD This part replaces 51356-27C40.

51356-29E00

$15.29

15

NUT, STEM HEAD

51353-27C40

$27.87

16

HOLDER, HANDLE

56211-27100

$15.23

17

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.96

18

HOLDER, HANDLE LOWER

56221-28C60

$60.37

19

BOLT, LOWER HANDLE

56321-28C60

Unavailable

20

CUSHION,RUBBER This part replaces 56241-28C60.

56241-28C61

$24.92

21

SPACER

56243-42A00

$8.03

22

CUSHION RUBBER UNDER This part replaces 56242-28C60.

56242-28C61

$28.58

23

NUT

08319-31107

$2.73

24

PIN This part replaces 04111-20308.

04111-2030A

$1.50
