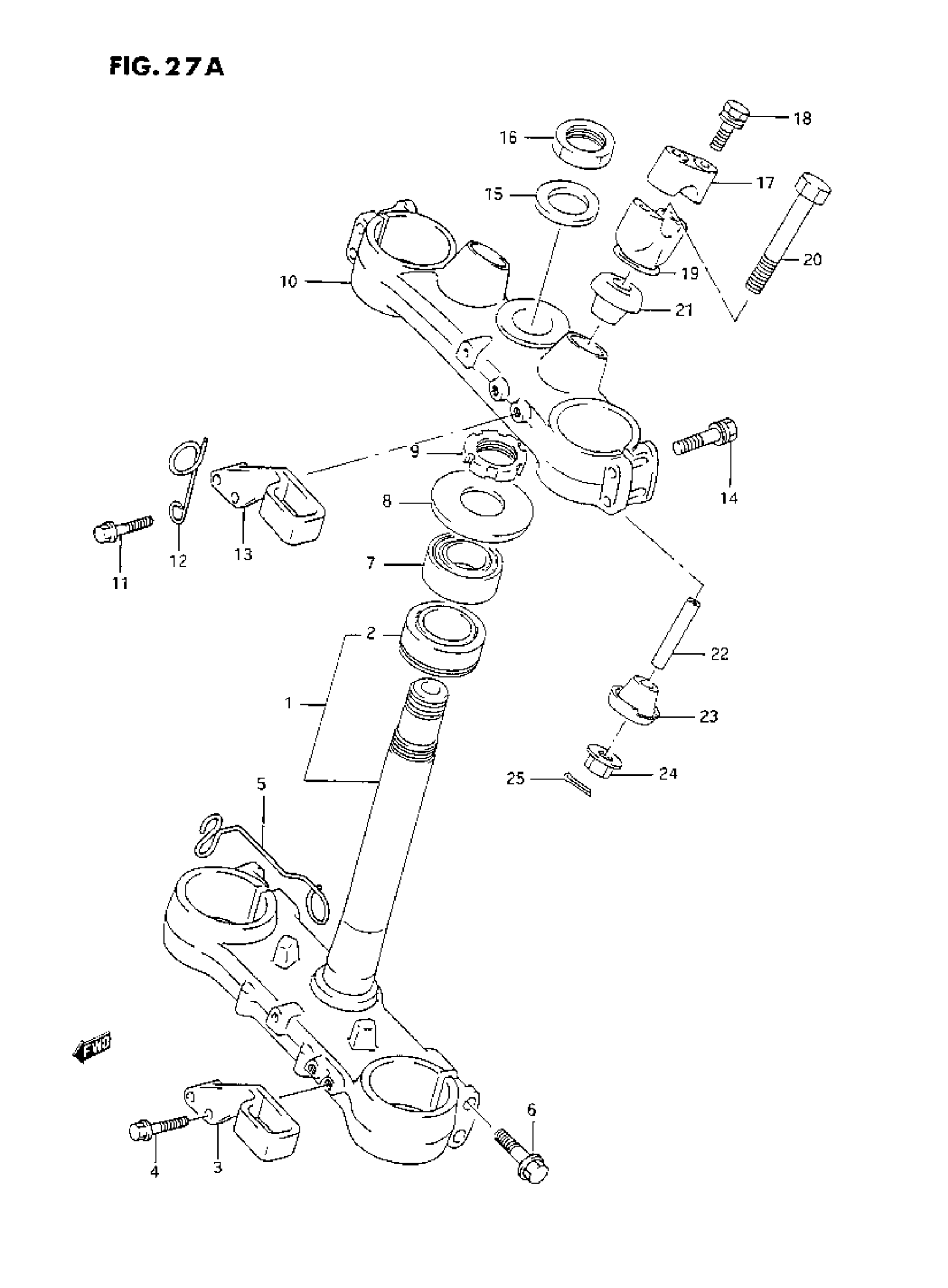

Suzuki RMX250 (1993) STEERING STEM (M/N) Diagram

#

Description
Price

1

STEM, STEERING | MODEL M This part replaces 51410-05D60.

51410-43D01

Unavailable

1

STEM, STEERING | MODEL N

51410-43D01

Unavailable

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

3

GUIDE, HOSE LOWER

58621-05D60

Unavailable

4

BOLT This part replaces 58629-27C40.

01547-06257

$2.03

5

GUIDE, METER CABLE

51452-05D60

Unavailable

6

BOLT This part replaces 51328-27C40.

51166-27E30

$4.37

7

BEARING This part replaces 09265-28002.

09265-28003

Unavailable

8

SEAL, STEERING

51643-28C00

Unavailable

9

NUT, STEERING

51631-28C10

Unavailable

10

HEAD, STEERING STEM

51310-05D60

Unavailable

11

BOLT This part replaces 58629-27C40.

01547-06257

$2.03

12

GUIDE,CLUTCH CA This part replaces 58294-27C00.

58294-27C01

$6.18

13

GUIDE, HOSE UPPER

58621-27C40

$25.70

14

BOLT This part replaces 51328-27C40.

51166-27E30

$4.37

15

WASHER,STEM HEAD This part replaces 51356-27C40.

51356-29E00

$15.29

16

NUT, STEM HEAD

51353-27C40

$27.87

17

HOLDER, HANDLE

56211-27100

$15.23

18

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.96

19

HOLDER, HANDLE LOWER

56221-28C60

$60.37

20

BOLT, LOWER HANDLE

56321-28C60

Unavailable

21

CUSHION,RUBBER This part replaces 56241-28C60.

56241-28C61

$24.92

22

SPACER

56243-42A00

$8.03

23

CUSHION RUBBER UNDER This part replaces 56242-28C60.

56242-28C61

$28.58

24

NUT

08319-31107

$2.73

25

PIN This part replaces 04111-20308.

04111-2030A

$1.50
