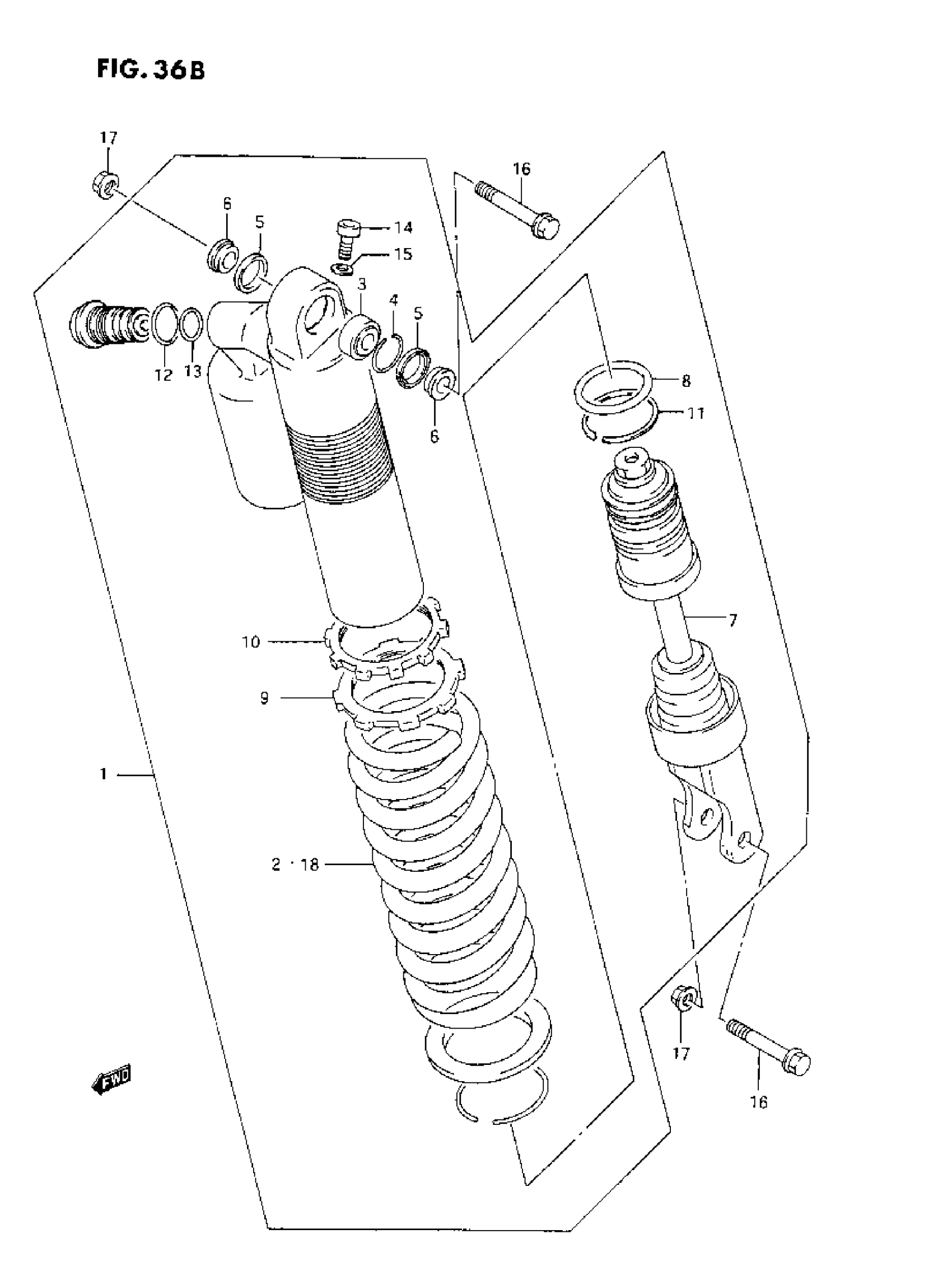

Suzuki RMX250 (1993) SHOCK ABSORBER (P/R) Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK This part replaces 62100-29E50-163.

62100-29E51-163

Unavailable

2

SPRING This part replaces 62211-28C70.

62211-28C70-163

Unavailable

3

BEARING

62175-43D00

Unavailable

4

STOP RING

62277-27C40

$3.95

5

DUST SEAL

62226-27C40

Unavailable

6

COLLAR

62684-27C40

Unavailable

7

ROD, PISTON

62120-29E50

Unavailable

8

O RING

62153-43B00

Unavailable

9

ADJUSTER NUT SET This part replaces 62191-27C40.

62190-28E00

Unavailable

10

NUT

62194-27C40

Unavailable

11

..RING,STOPPER

62279-27C40

Unavailable

12

O RING

62131-27C40

$4.82

13

O RING This part replaces 62132-27C40.

51175-03B30

$6.05

14

BOLT

62281-27C40

Unavailable

15

GASKET

51183-31030

$3.77

16

BOLT, LOWER (10X54) This part replaces 62311-28C00.

62311-28E00

$6.19

17

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

18

NO DESCRIPTION AVAILABLE | OPT This part replaces 62211-28C80.

62211-28C80-163

Unavailable

18

SPRING (SOFT) | OPT

62211-27C90

Unavailable
