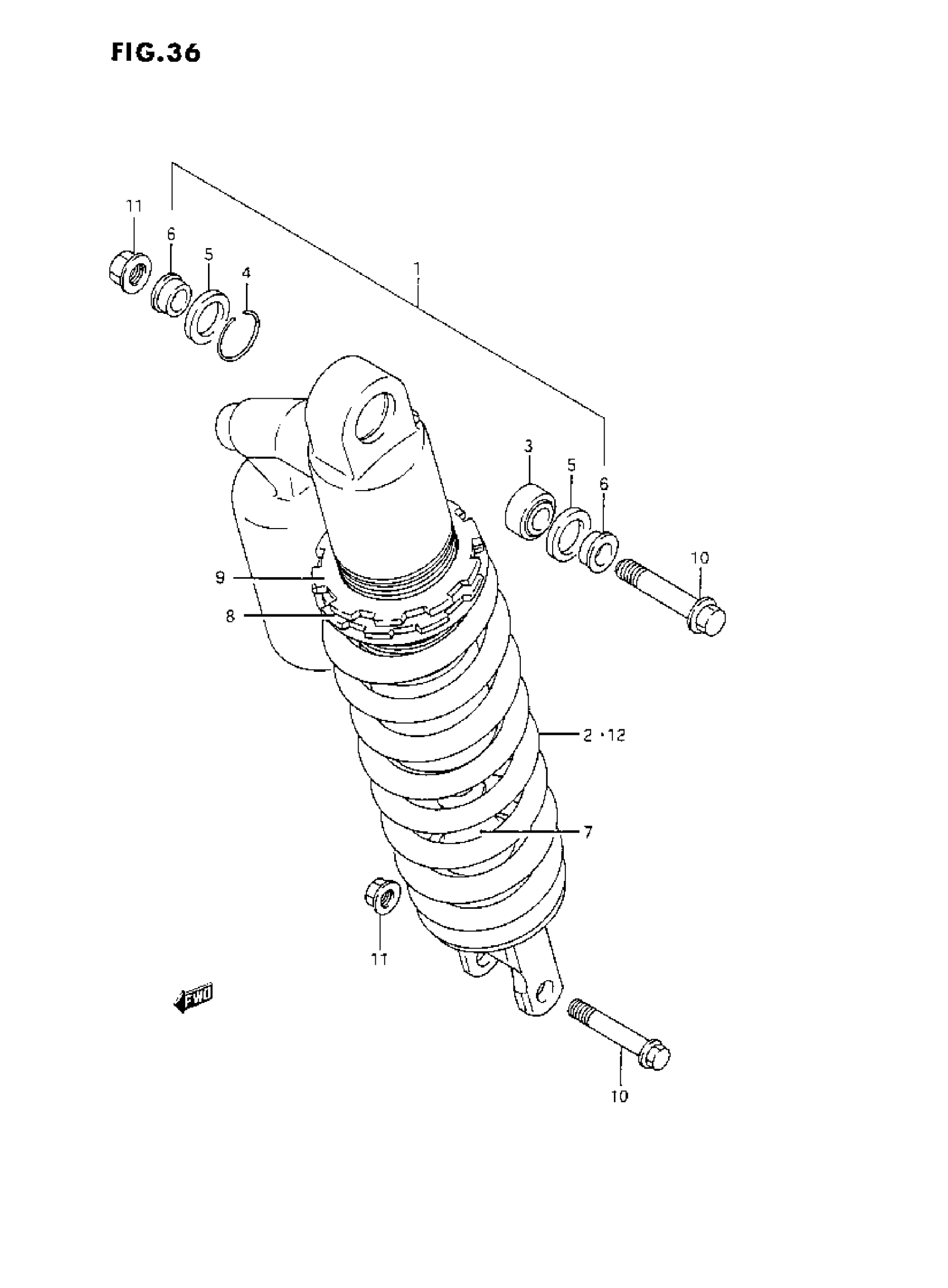

Suzuki RMX250 (1993) SHOCK ABSORBER (K/L) Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL K This part replaces 62100-05D00-163.

62100-05D20-163

Unavailable

1

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL L

62100-05D20-163

Unavailable

2

SPRING

62211-28C00

Unavailable

3

BEARING

62175-00B00

$61.15

4

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$1.99

5

DUST SEAL

62226-01B20

Unavailable

6

COLLAR

62684-27C10

Unavailable

7

ROO, PISTON | MODEL K This part replaces 62120-05D00.

62120-05D20

Unavailable

7

ROD, PISTON | MODEL L

62120-05D20

Unavailable

8

GUIDE, SPRING | MODEL K This part replaces 62191-27C00.

62191-27C20

Unavailable

8

GUIDE, SPRING | MODEL L

62191-27C20

Unavailable

9

NUT This part replaces 62194-27C00.

62194-27C20

Unavailable

10

BOLT, LOWER (10X54) This part replaces 62311-28C00.

62311-28E00

$6.19

11

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

12

SPRING (HARD) | OPT

62211-28C60

Unavailable

12

SPRING (SOFT) | OPT

62211-28C50

Unavailable
