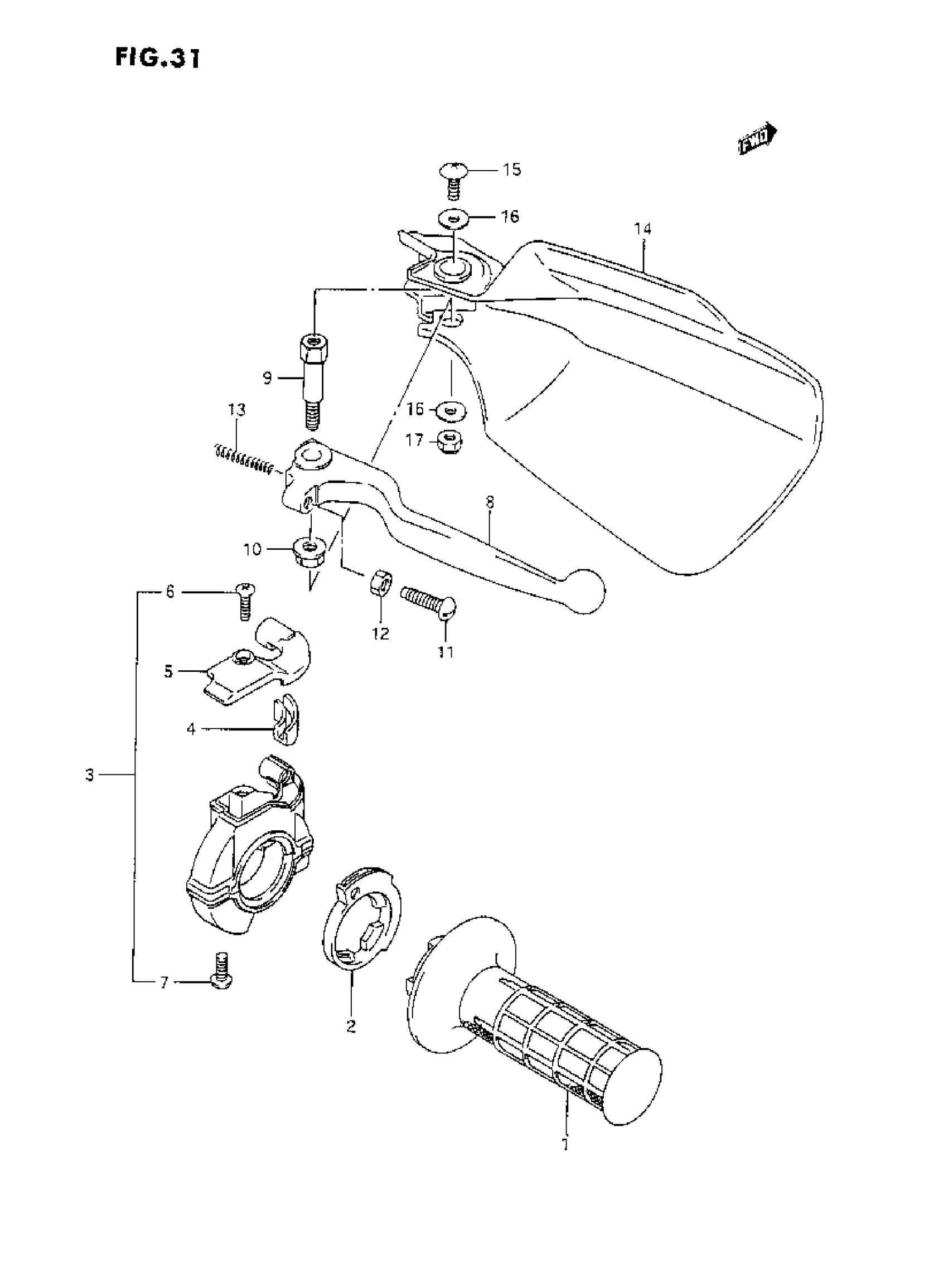

Suzuki RMX250 (1993) RIGHT KNUCKLE COVER (K/L/M) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-27C00

$26.37

2

ROTOR, THROTTLE

57114-14301

Unavailable

3

CASE ASSY, THROTTLE

57100-14302

Unavailable

4

GUIDE, PIECE

57122-14301

Unavailable

5

COVER

57129-14302

Unavailable

6

SCREW This part replaces 02132-04105.

02122-0410A

$1.49

7

SCREW This part replaces 02112-05168.

02112-05167

$1.97

8

LEVER, BRAKE

57421-27C00

$14.24

9

BOLT

57431-05D00

$13.20

10

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

11

BOLT, ADJUST

57431-14511

$5.80

12

NUT This part replaces 08310-12055.

08310-0005A

$1.84

13

SPRING, RETURN

57318-14502

$4.48

14

COVER, KNUCKLE, RH (YELLOW)

57341-05D00-25Y

Unavailable

15

SCREW

09125-05042

$1.96

16

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

17

.NUT This part replaces 08319-21068.

08319-2106A

$1.91
