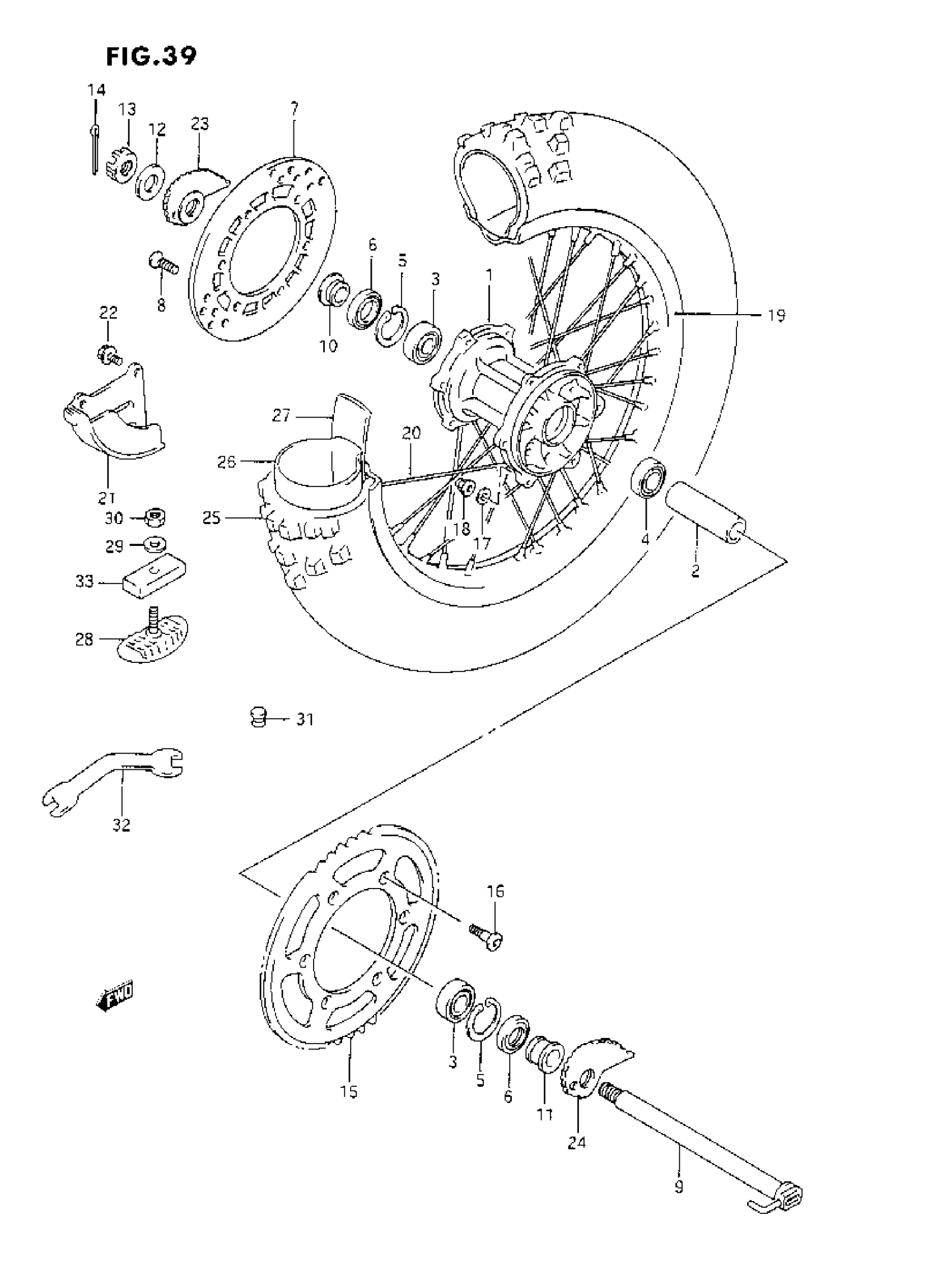

Suzuki RMX250 (1993) REAR WHEEL (K/L/M) Diagram

#

Description
Price

1

HUB, REAR

64110-28C01

Unavailable

2

SPACER, BEARING

64731-00B30

Unavailable

3

BEARING

08133-62047

$28.61

4

BEARING, RH This part replaces 08123-60047.

08133-60047

$25.82

5

CIRCLIP This part replaces 08331-41478.

08331-41479

$2.31

6

OIL SEAL (26X47X5)

09283-26019

$11.61

7

DISC, REAR BRAKE This part replaces 69211-05D00.

69211-43D00

$299.30

8

SCREW

02122-06167

$1.49

9

AXLE, REAR

64710-05D00

Unavailable

10

SPACER, RH

64741-05D00

$17.82

11

SPACER, LH

64751-05D00

$24.20

12

WASHER This part replaces 09160-19010.

09160-19022

$4.90

13

NUT This part replaces 08314-41188.

08314-40187

$5.64

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

15

SPROCKET, REAR (NT:50) | STEEL This part replaces 64511-00B11.

64511-00B12

$125.38

15

SPROCKET, REAR (NT:49) | OPT STEEL

64511-00B01

Unavailable

15

SPROCKET, REAR (NT:51) | OPT STEEL

64511-00B21

Unavailable

15

SPROCKET,RR (NT:49) | OPT ALUMINIUM This part replaces 64511-40281.

64511-28E00

$120.85

15

SPROCKET,RR (NT:50) | OPT ALUMINIUM This part replaces 64511-40271.

64511-36E00

$126.60

15

SPROCKET, REAR (NT:51) | OPT ALUMINIUM

64511-40261

$155.22

16

SCREW

09120-08004

$2.40

17

WASHER

09164-08011

$2.71

18

NUT

08319-31087

$2.32

19

NO DESCRIPTION AVAILABLE This part replaces 65311-28C00.

65311-28C01

Unavailable

20

SPOKE ASSY, WHEEL

65320-26C00

Unavailable

21

COVER, BRAKE DISC

69230-05D00

Unavailable

22

BOLT This part replaces 01517-06128.

01550-06127

$2.30

23

ADJUSTER, CHAIN, RH

61410-05D00

Unavailable

24

ADJUSTER, CHAIN, LH

61420-05D00

Unavailable

25

TIRE, REAR (110/100-18) | BRIDGESTONE

65100-05D00

Unavailable

26

TUBE, WHEEL INNER

65200-40430

Unavailable

27

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

$4.39

28

STOPPER, BEAD This part replaces 65270-14200.

65270-28E00

$58.75

29

WASHER This part replaces 08322-11088.

08322-01087

$2.13

30

NUT | MODEL K This part replaces 08310-22088.

08310-00087

$2.13

30

NUT | MODEL L/M This part replaces 08310-12088.

08310-00087

$2.13

31

CAP

09250-08013

$2.68

32

SPANNER, OPEN

09813-00039

Unavailable

33

CUSHION, BEAD STOPPER | MODEL L/M

65271-27C00

$7.42
