1993 Suzuki RMX250 Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 1993 Suzuki RMX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

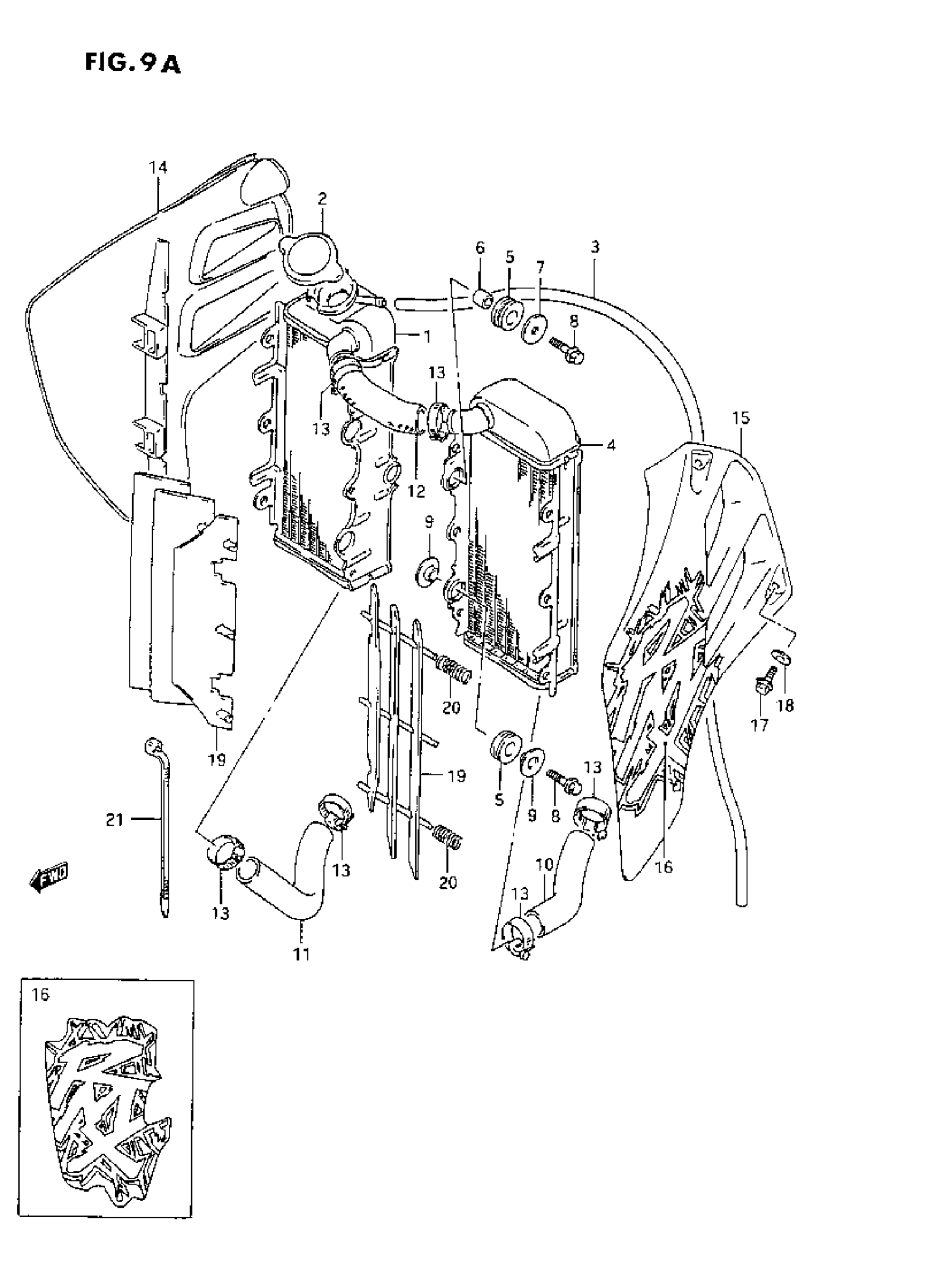

1993 Suzuki RMX250 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR, RH

17710-05D00

1
Out of stock

2

CAP, RADIATOR This part replaces 17730-20930.

17730-08J00

1
Out of stock

3

HOSE (5X8X2000) | L:10004650 This part replaces 09351-50803-00A.

09351-50803-00B

1
Out of stock

4

RADIATOR, LH

17720-05D00

1
Out of stock

5

CUSHION, SUPPORT

17787-19A00

6

$3.55

In stock

6

SPACER (6.5XL0.5X12)

09180-06221

4
Out of stock

7

WASHER (6.5X24X1.2) This part replaces 09160-06002.

09160-06114

4
Out of stock

8

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

6
Out of stock

9

WASHER, RADIATOR SUPPORT

17781-26C00

4
Out of stock

10

HOSE, INLET

17851-28C00

1
Out of stock

11

HOSE, OUTLET

17852-28C10

1
Out of stock

12

HOSE, CYLINDER JOINT This part replaces 17853-28C20.

17851-01A00

1
Out of stock

13

CLAMP This part replaces 09402-25502.

09402-28511

6
Out of stock

14

COVER, RADIATOR RH

17761-28C00-25Y

1
Out of stock

15

COVER, RADIATOR LH

17762-28C00-25Y

1
Out of stock

16

EMBLEM, RADIATOR COVER, RH

68661-05D40-C2M

1
Out of stock

16

EMBLEM, RADIATOR COVER, LH

68671-05D40-C2M

1
Out of stock

17

BOLT This part replaces 01547-06123.

01547-0612B

4
Out of stock

18

WASHER (6.5X18X1.0)

09160-06028

4
Out of stock

19

LOUVER, RADIATOR

17831-26C00

2
Out of stock

20

SPRING This part replaces 09440-11024.

09440-11024-XC0

2
Out of stock

21

CLAW

09407-18402

1
Out of stock
