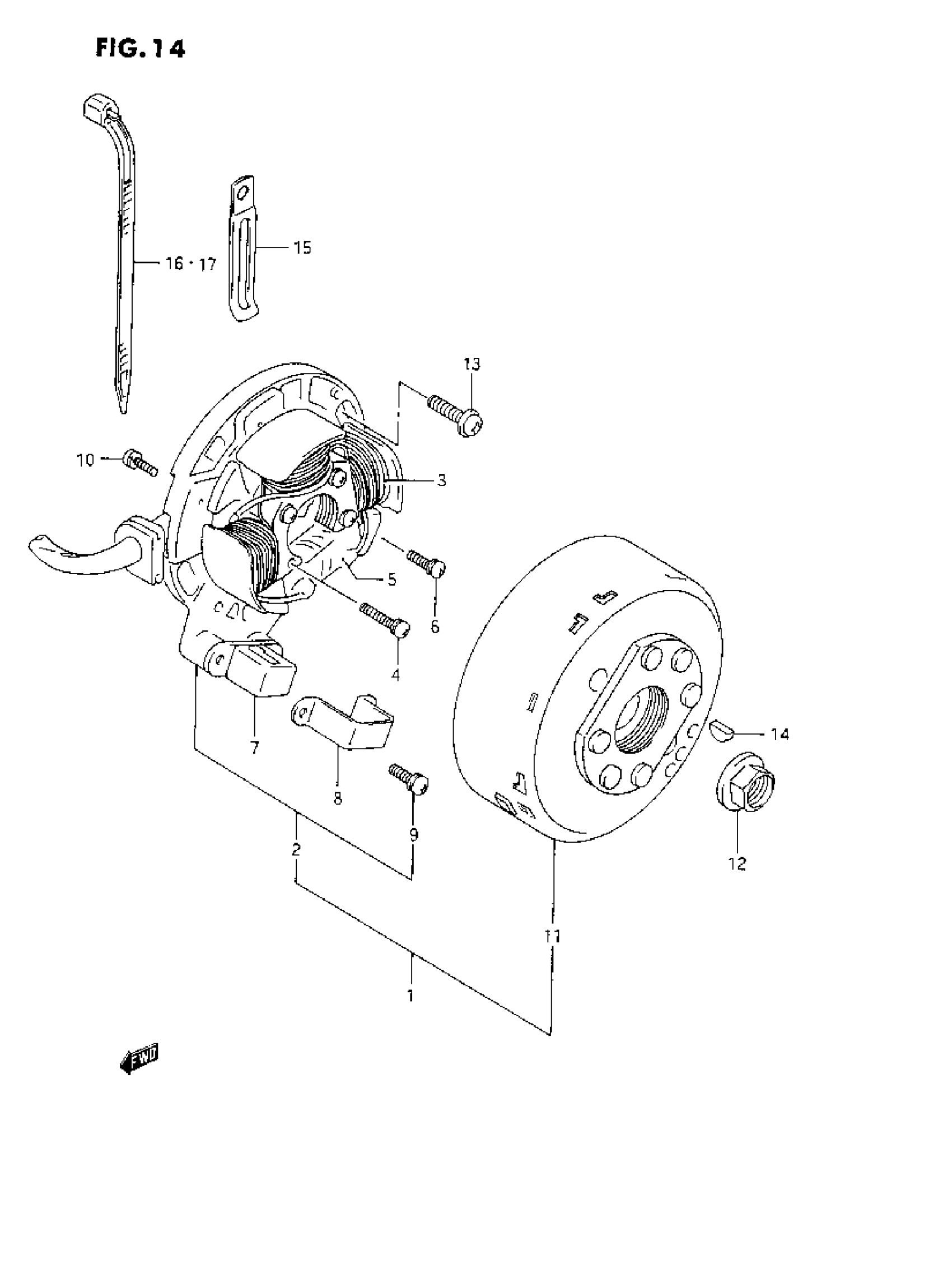

Suzuki RMX250 (1993) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | MODEL K/L This part replaces 32100-05D00.

32100-05D01

Unavailable

1

MAGNETO ASSY | MODEL M/N/P/R

32100-05D01

Unavailable

2

STATOR ASSY | MODEL K/L This part replaces 32101-05D00.

32101-05D01

Unavailable

2

STATOR ASSY | MODEL M/N/P/R

32101-05D01

Unavailable

3

COIL, LIGHTING

32120-05D00

Unavailable

4

SCREW This part replaces 02112-34256.

02112-3425B

$3.08

5

COIL, PRIMARY

32140-05D00

Unavailable

6

SCREW This part replaces 02112-34166.

02112-3416B

$2.19

7

COIL, PULSER

32150-05D00

Unavailable

8

COVER, PULSER COIL | MODEL K/L/M/N This part replaces 32156-05D00.

32157-27C01

Unavailable

8

COVER, PULSER COIL | MODEL P/R

32157-27C01

Unavailable

9

SCREW This part replaces 02112-35166.

02112-3516A

$2.43

10

SCREW This part replaces 02112-34086.

02112-3408A

$2.38

11

ROTOR

32102-05D00

Unavailable

12

NUT | MODEL K/L/M/N/P This part replaces 08316-16128.

08316-10127

$2.50

12

NUT | MODEL R This part replaces 08316-10123.

08316-1012A

$2.26

13

SCREW This part replaces 02112-16208.

02142-06207

$1.49

14

KEY

08341-31039

$1.89

15

CLAMP This part replaces 09404-05404.

09404-06039

$1.74

16

CLAMP (L:125)

09407-14403

$2.26

17

CLAW (L:235)

09407-25401

$4.66
