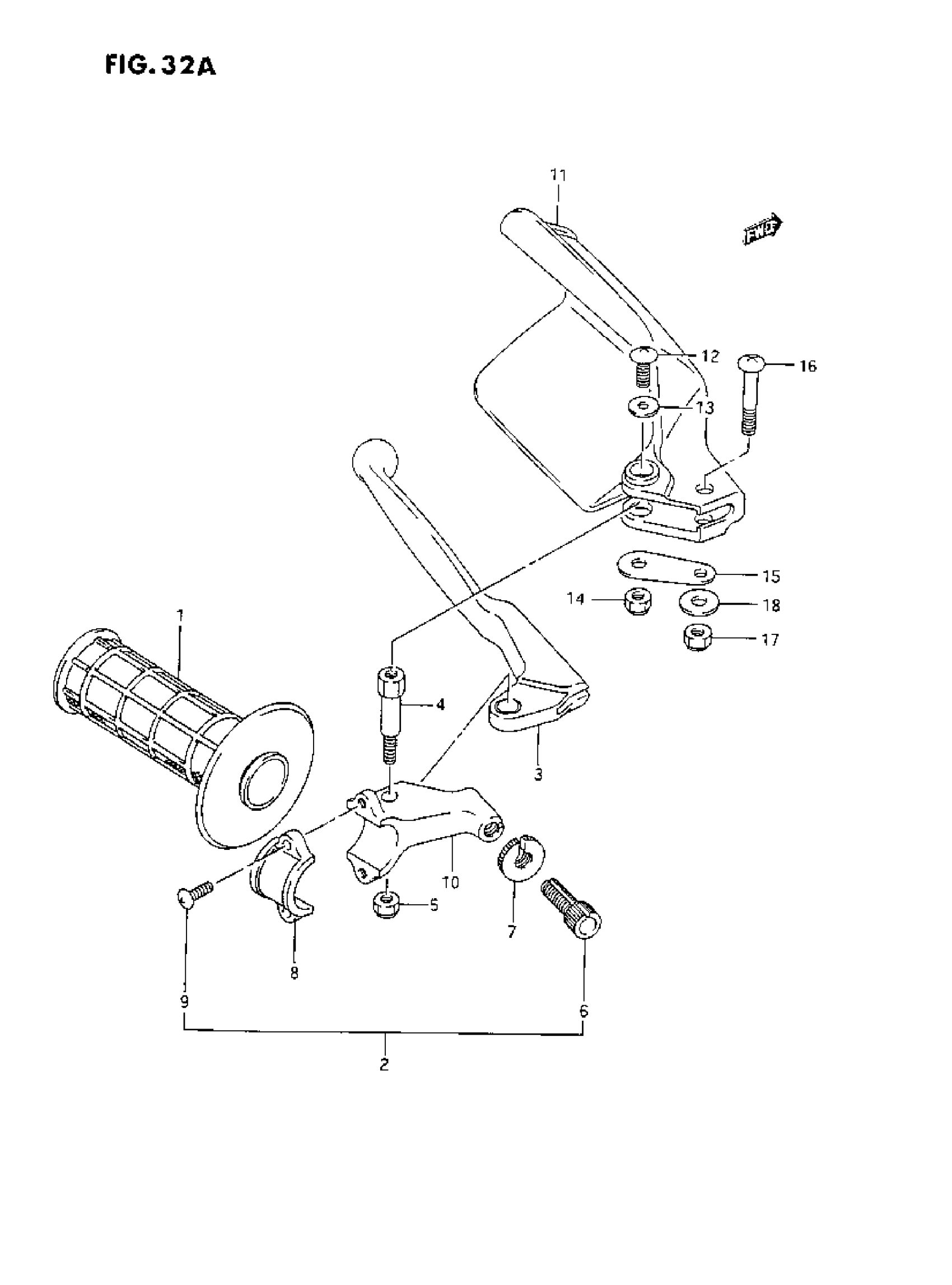

Suzuki RMX250 (1993) LEFT KNUCKLE COVER (N/P/R) Diagram

#

Description
Price

1

GRIP LH

57211-27C00

$12.28

2

LEVER ASSY, CLUTCH

57500-05D00

Unavailable

3

LEVER, CLUTCH

57620-14300

$20.83

4

BOLT

57631-05D00

$7.12

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

ADJUSTER, CABLE

57441-26010

$4.48

7

NUT

57442-05D00

$8.18

8

BRACKET

57512-14300

$40.93

9

SCREW

09125-05102

$1.61

10

HOLDER

57511-14300

Unavailable

11

COVER, KNUCKLE, LH (YELLOW) | MODEL N 57541-05D01-25Y This part replaces 57541-14D00-25Y.

57541-05D01-25Y

Unavailable

11

COVER, KNUCKLE, LH (YELLOW) | MODEL P 57541-05D01-30H This part replaces 57541-14D00-30H.

57541-05D01-25Y

Unavailable

11

COVER, KNUCKLE, LH (YELLOW) | MODEL N

57541-05D01-25Y

Unavailable

11

COVER, KNUCKLE, LH (WHITE) | MODEL P/R

57541-05D01-30H

$46.22

12

SCREW | MODEL N/P

09125-05042

$1.96

12

SCREW | MODEL R

02142-05107

$1.49

13

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

14

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

15

PLATE, COVER LOWER

57542-05D00

$4.17

16

SCREW

09125-06091

$2.43

17

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

18

.WASHER (6.5X16X1.6) This part replaces 09160-06042.

09160-06130

$1.91
