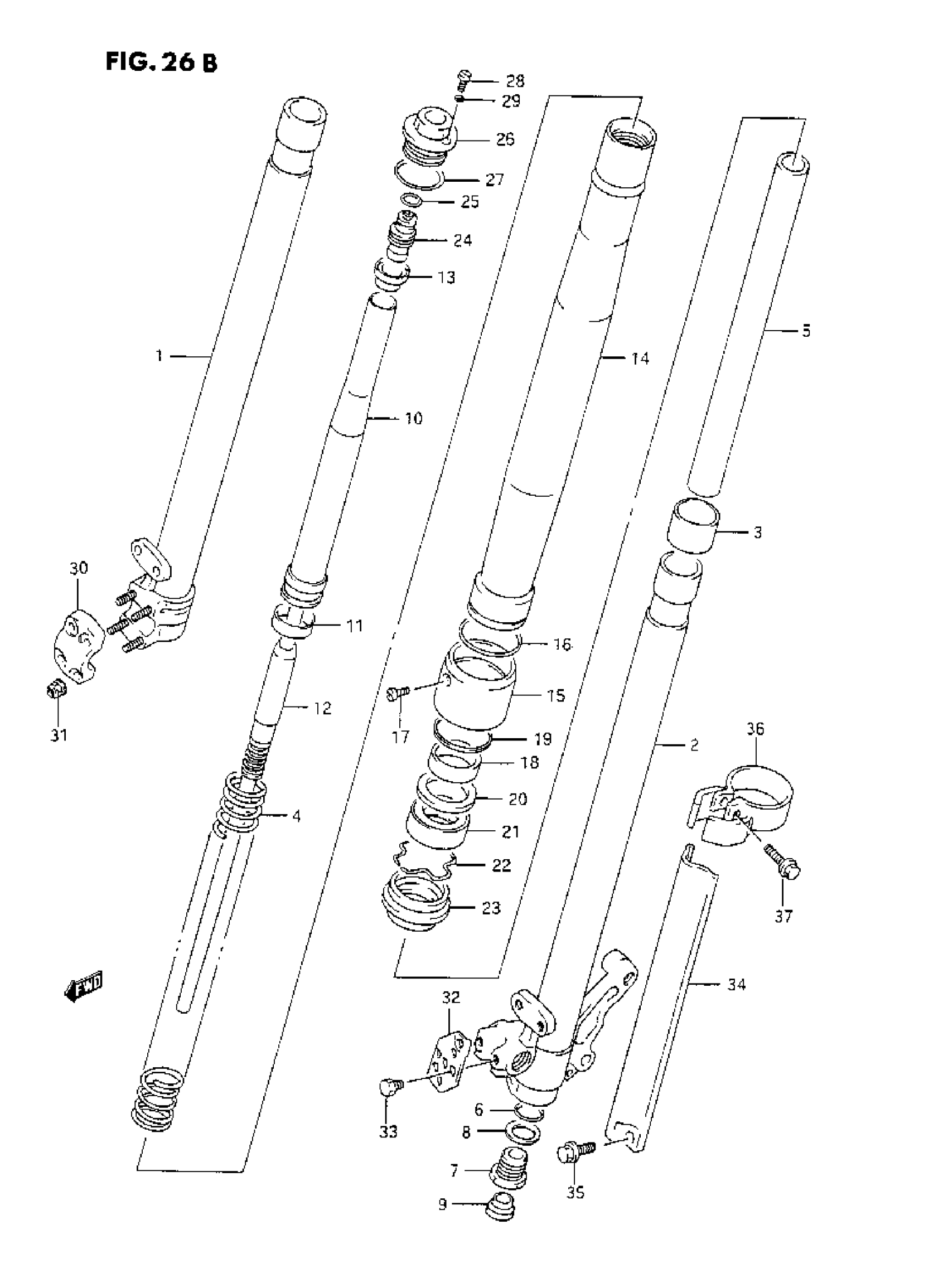

Suzuki RMX250 (1993) FRONT DAMPER (M) Diagram

#

Description
Price

1

DAMPER ASSY, RH | SHOWA

51103-05D60

Unavailable

1

DAMPER ASSY, LH | SHOWA

51104-05D60

Unavailable

1

TUBE, INNER RH

51110-27C40

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 51120-27C40.

51120-27C41

Unavailable

3

BUSH, SLIDE

51121-27C40

Unavailable

4

SPRING, MAIN This part replaces 51171-05D60.

51171-27C40

Unavailable

5

CYLINDER

51146-27C40

Unavailable

6

O RING This part replaces 51174-27C40.

51175-03B30

$6.05

7

BOLT, CENTER

51170-05D60

Unavailable

8

GASKET

51148-27C40

Unavailable

9

CAP

51189-08D00

Unavailable

10

SPACER, SPRING

51175-27C40

Unavailable

11

RING, PISTON

51176-27C40

Unavailable

12

ROD ASSY, PISTON This part replaces 51128-05D60.

51190-05D60

Unavailable

13

SEAT, SPRING STOPPER

51355-27C41

Unavailable

14

TUBE, OUTER

51130-27C40

Unavailable

15

CASE, OIL SEAL

51135-27C40

Unavailable

16

O RING

51131-27C40

Unavailable

17

SCREW

51134-27C40

Unavailable

18

BUSH, GUIDE

51167-27C40

Unavailable

19

RING, STOPPER UPPER

51133-27C40

Unavailable

20

SPACER, SEAL

51158-27C40

$8.53

21

SEAL, OIL This part replaces 51153-27C41.

51153-28E30

$32.37

22

RING, OIL SEAL STOPPER

51156-27C40

$5.19

23

SEAL, DUST This part replaces 51173-27C41.

51173-28E40

$30.86

24

ADJUSTER, SPRING

51180-27C40

Unavailable

25

O RING, OIL GALLERY This part replaces 51129-27C40.

09280-12012

$4.64

26

BOLT, FORK

51351-27C40

Unavailable

27

O RING

51117-27C40

$6.22

28

BOLT, PLUG

51357-27C40

$10.45

29

O RING, ROD This part replaces 51358-27C40.

51117-19C10

$4.10

30

HOLDER, AXLE RH

51132-27C40

Unavailable

31

NUT

08319-31067

$2.03

32

GUIDE, HOSE LH

59248-05D60

Unavailable

33

BOLT This part replaces 59249-27C40.

01500-05087

$2.13

34

PROTECTOR, FORK RH

51501-05D60

Unavailable

34

PROTECTOR, FORK LH

51511-27C40

Unavailable

35

BOLT, PROTECTOR

58627-27C40

$3.77

36

GUIDE, FORK PROTECTOR RH

51201-27C40

Unavailable

36

GUIDE, FORK PROTECTOR LH

51211-27C40

Unavailable

37

BOLT, GUIDE

58628-27C40

Unavailable
