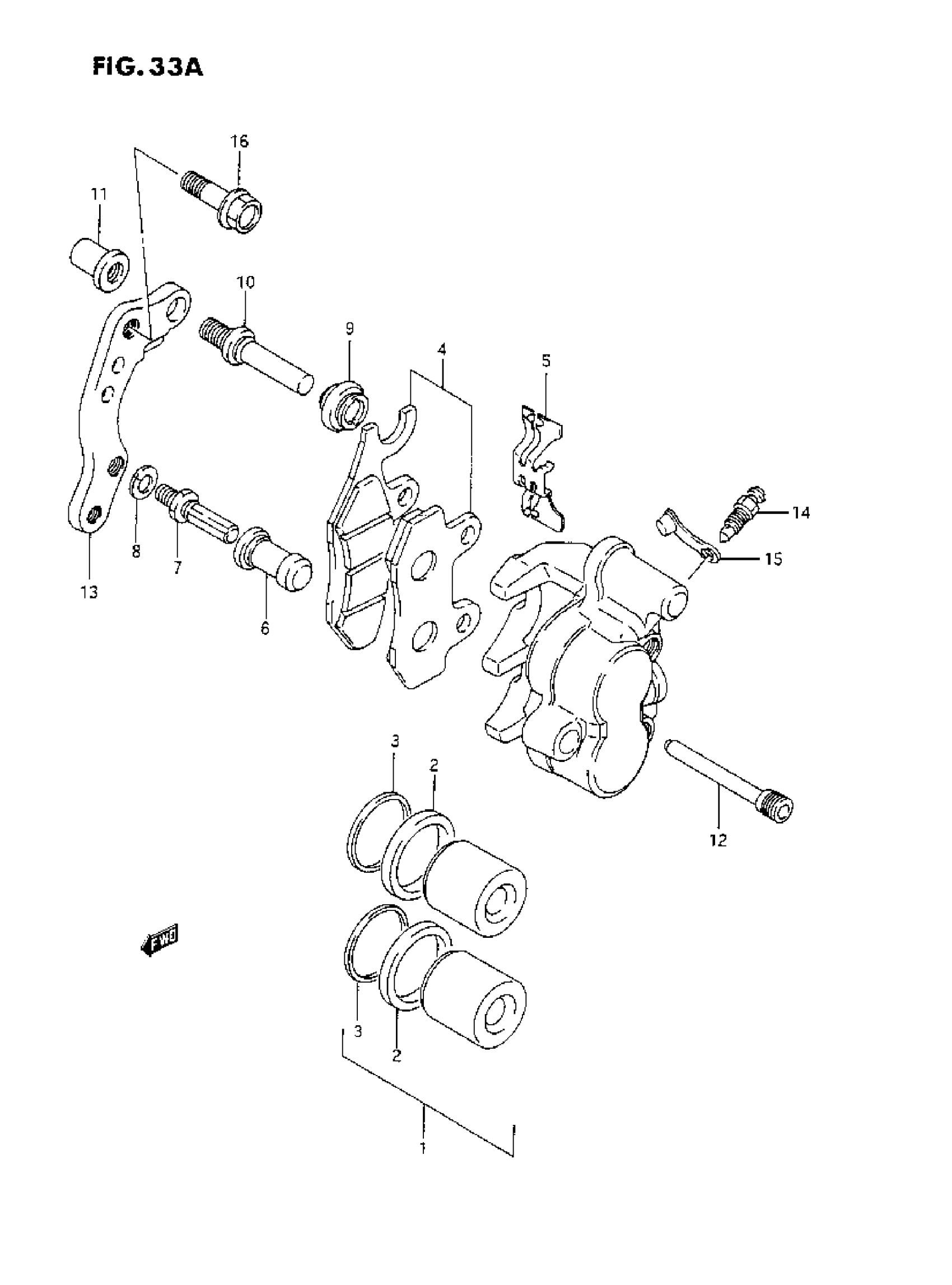

Suzuki RMX250 (1993) FRONT CALIPER (M/N/P/R) Diagram

#

Description
Price

1

CALIPER ASSY,FR This part replaces 59300-27C10.

59300-27C11-999

Unavailable

1

PISTON SET

59300-27840

$48.34

2

SEAL SET, PISTON This part replaces 59107-00B20.

69100-36810

$9.03

3

DUST SEAL

59108-00B20

Unavailable

4

PAD SET

59300-27850

Unavailable

5

SPRING This part replaces 59315-27C20.

59315-27C30

Unavailable

6

BOOT

59386-13A00

$7.95

7

BOLT

59382-13A00

$7.69

8

WASHER

59314-13A00

$2.02

9

BOOT

59303-14500

$5.52

10

PIN

59387-00B20

$18.55

11

NUT

59388-00B20

$15.16

12

PIN

59345-00B20

$14.20

13

BRACKET

59351-00B20

$80.50

14

BLEEDER

59121-01A00

$8.73

15

CAP

59122-01A00

$4.34

16

BOLT

09103-08157

$3.58
