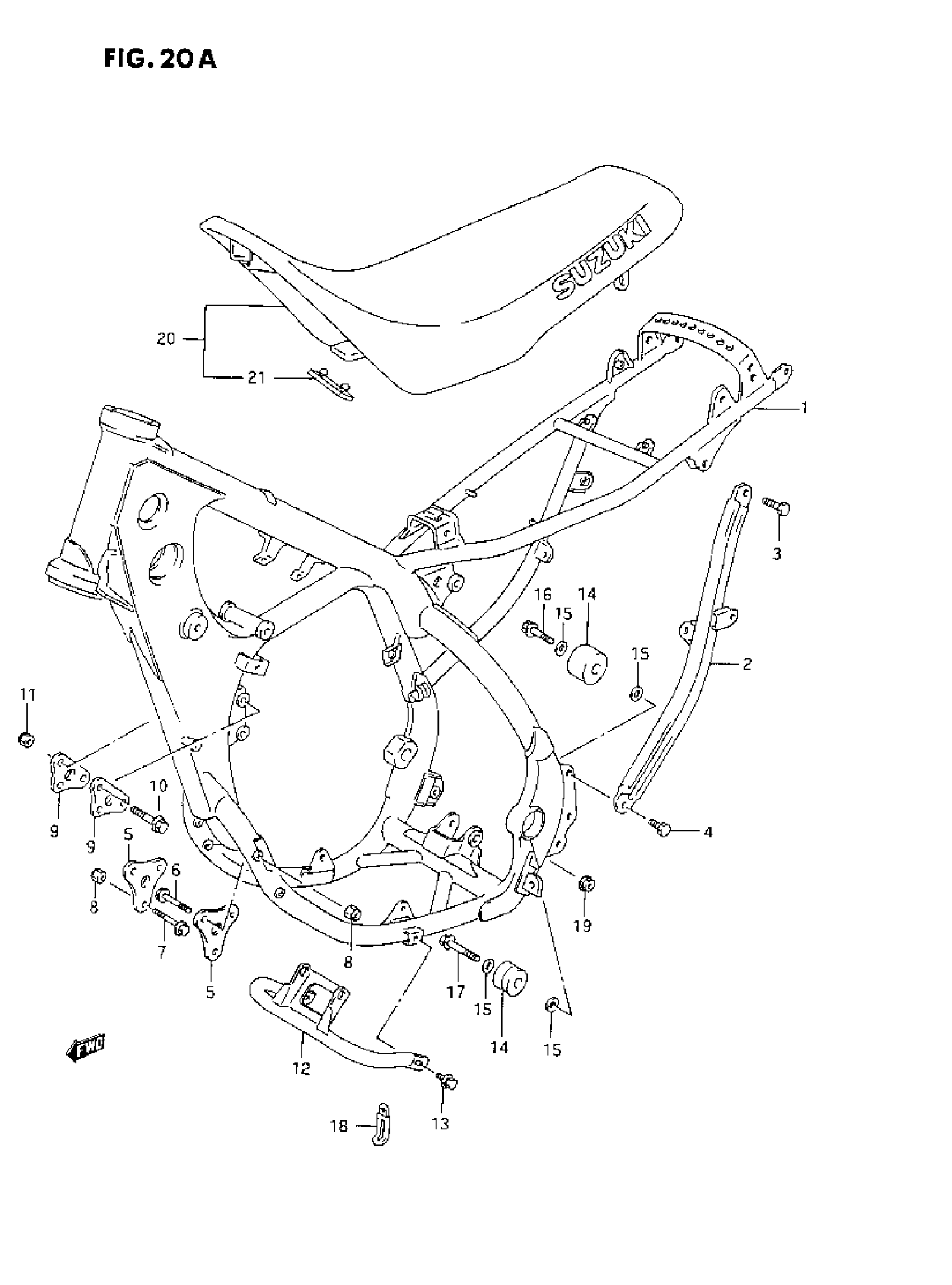

Suzuki RMX250 (1993) FRAME-SEAT (P/R) Diagram

#

Description
Price

1

FRAME (CHARCOAL)

41100-05D41-24K

Unavailable

2

TUBE, FRAME SIDE

41670-43D00

Unavailable

3

BOLT This part replaces 01500-08253.

01500-0825A

$2.19

4

PLUG, DRAIN This part replaces 01500-08163.

01500-0816B

$2.50

5

PLATE, ENGINE MOUNT FRONT

41991-28C00

Unavailable

6

.BOLT (8X55) This part replaces 09103-08027.

09103-08339

$3.49

7

BOLT, FRONT LOWER RH

09103-08265

Unavailable

8

NUT

09159-08034

$1.62

9

PLATE, ENGINE MOUNTING UPPER

41993-28C00

Unavailable

10

BOLT

09103-08043

$3.18

11

NUT

09159-08034

$1.62

12

PROTECTOR, ENGINE (CHARCOAL)

42510-05D40-24K

Unavailable

13

BOLT

09103-08253

$3.10

14

ROLLER, CHAIN CONTROL

43910-27C11

$64.67

15

WASHER

08211-08121

$1.99

16

BOLT, UPPER

09103-08083

$3.70

17

BOLT, LOWER

09103-08043

$3.18

18

CLAMP This part replaces 09404-08405.

09404-08420

$3.16

19

NUT, LOWER

08319-31087

$2.32

20

SEAT ASSY

45100-27C01-A5K

Unavailable

21

CUSHION

09321-08009

$3.05
